INDIKATOR AD 4328

Detail INDIKATOR AD 4328

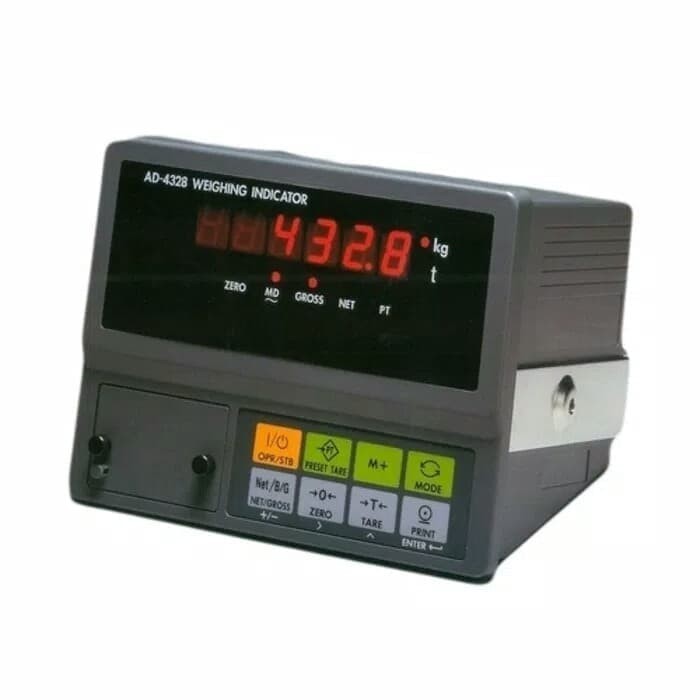

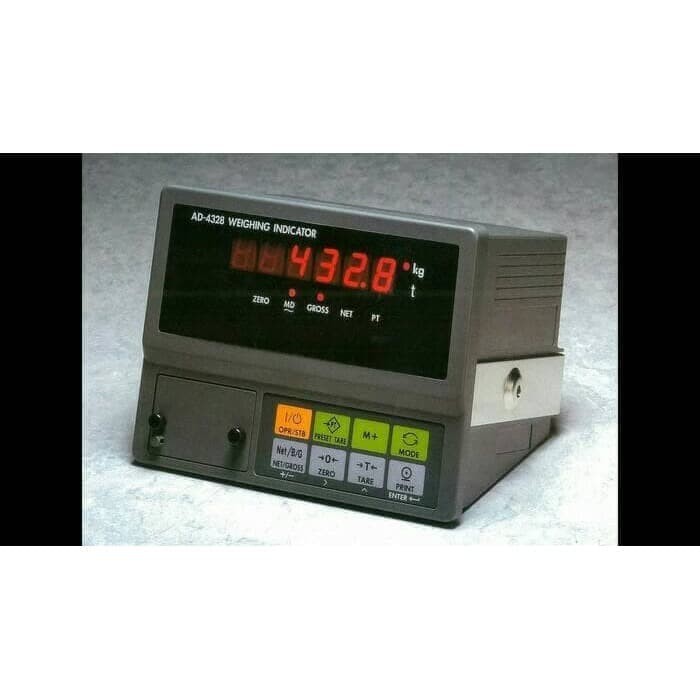

INDIKATOR AD 4328

The AD-4328 Provides power and flexibility at an affordable price. performs a wide range of applications from batching to simpe weighing .
it is reliable, accurate and easy to isntal .

Spesifikasi
- Accumulative data is stored in memory automatically or manually .
- Comparator output to optional relays (Hi/Ok/Lo).
- Setpoint comparison for batching aplications (Near zero/prelim/Target/Free Fall)
- Powered through AC Adaptor or external DC (6 to 12V) power supply.
- Optional bi-directional RS-232C, RS-422, RS-485, Interfaces and BCD, Relay, current loop ouputs.
- Front panel Protected to IP-65 .
- Power up to 6 loadcell at 350
- Gravity compensationfuntion assures accurate weighing without the need for recalibration after transport
- Standard serial output for printers, external display, etc.
- Averaging time nd width can be selected for various applications
- Digitally span calibrated by entering a sensor output voltage through the keypad
- 1/10000 displayed count resolution .
- Mount on panel, column, stand or desk top
- can be contralled by external input
- Enters predetermined tare weight from keypad
- RFE/EMI Protected
- Meet or exceeds OIML Class III Spesifications
- And uncased version of AD-4328 is Available ( All Options are Applicable Except OP-10 display stand )

Features
- Platform scale indicator
- LED Display, ABS Housing
- AC Power
