INA226 I2C Bi-Directional DC Current Sensor / Sensor Arus DC

Detail INA226 I2C Bi-Directional DC Current Sensor / Sensor Arus DC

The INA226 senses current on common-mode bus voltages that can vary from 0 V to 36 V, independent of the supply voltage. The device operates from a single 2.7-V to 5.5-V supply, drawing a typical of 330μA of supply current. The device is specified over the operating temperature range between –40°C and125°C and features up to 16 programmable addresses on the I2C-compatible interface

Fitur :
Senses Bus Voltages From 0 V to 36 V
• High-Side or Low-Side Sensing
• Reports Current, Voltage, and Power
• High Accuracy:
– 0.1% Gain Error (Max)
– 10 μV Offset (Max)
• Configurable Averaging Options
• 16 Programmable Addresses
• Operates from 2.7-V to 5.5-V Power Supply
• 10-Pin, DGS (VSSOP) Package

Applications :
• Servers
• Telecom Equipment
• Computing
• Power Management
• Battery Chargers
• Power Supplies
• Test Equipme

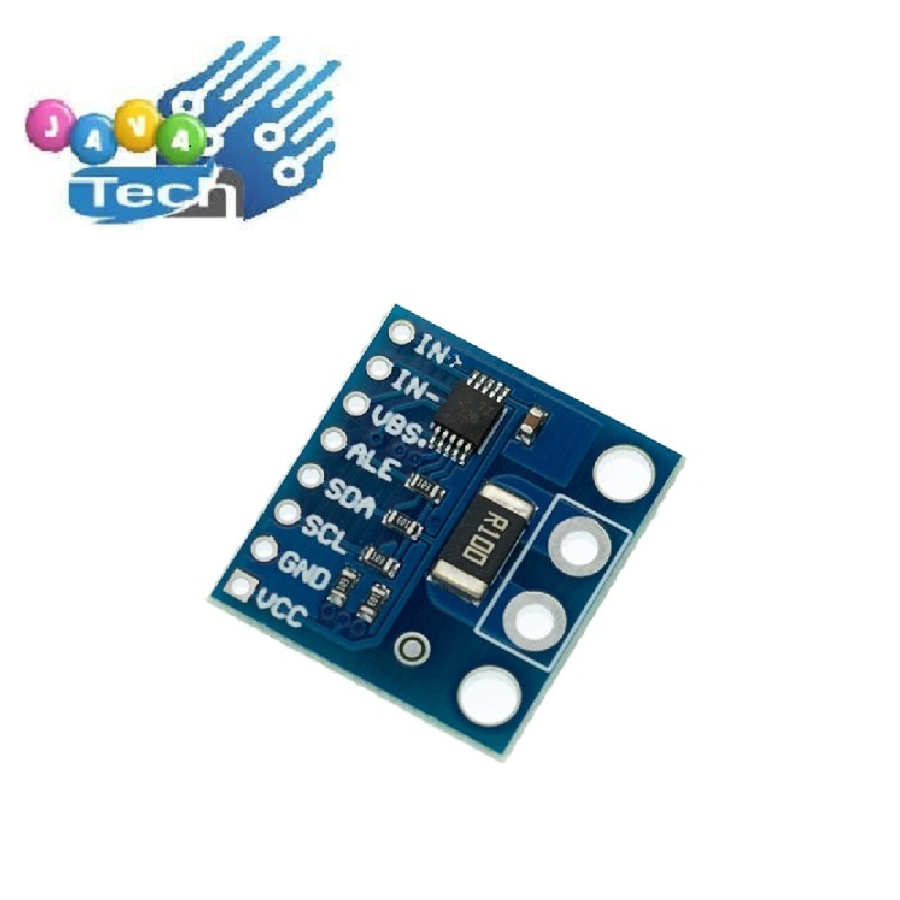

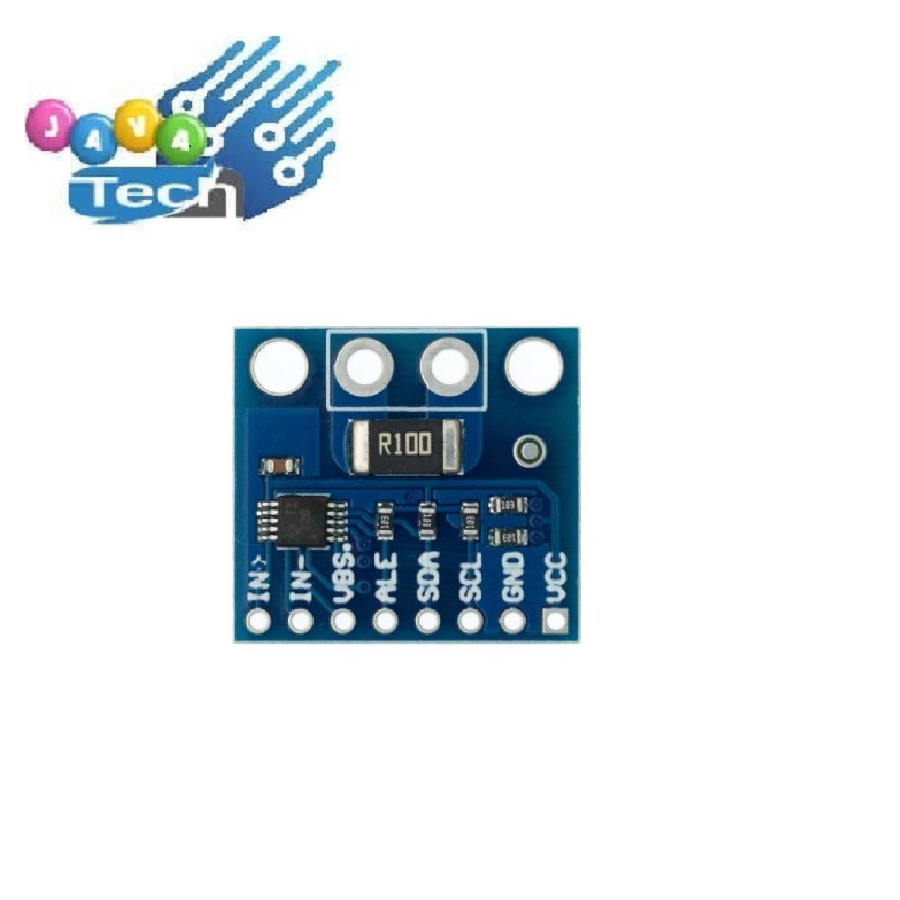

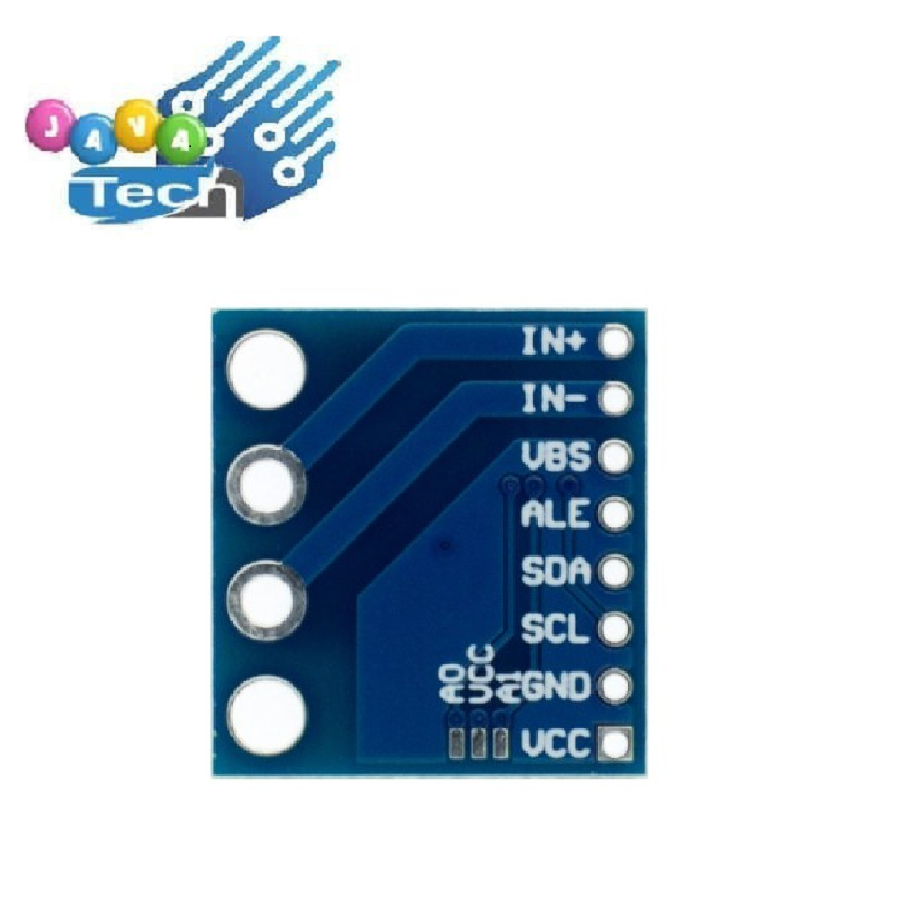

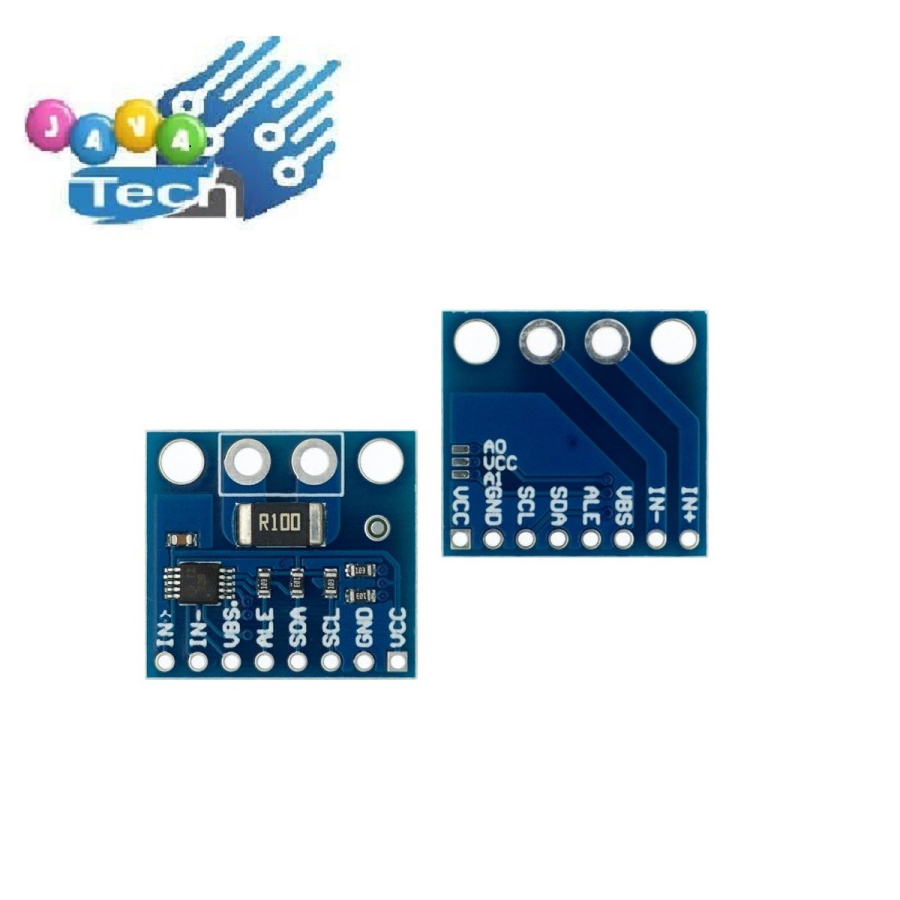

Gambar produk
