INA219 I2C Bi-Directional DC Current Sensor / Sensor Arus DC

Detail INA219 I2C Bi-Directional DC Current Sensor / Sensor Arus DC

Modul ini mampu melakukan high-side current sensing sehingga rangkaian yang akan diukur tidak perlu terganggu karena perubahan Ground (low side current sensing memasang resistor pengukuran di antara load dan Ground). Modul ini mampu mengukur arus hingga 3.2A dan tegangan +26VDC. Tegangan Vcc nya hanya 3 atau 5v. Modul ini juga dapat mengukur tegangan high side, sehingga cocok untuk pengukuran battery life ataupun output solar panel.

Feature:
- The high-precision products combine the advantages of 12-bit resolution. - - This module can be sensed bus voltage range is 0 v to +26 v.
- Requires soldering of header pins (easy!)
- Measure high side voltage and dc current drawgreat for tracking battery life or solar panelssupported by adafruit arduino libraries!
- Perfect for your solar or battery powered arduino project

Specifications:
- package: sot23
- working voltage 35v
- size:25. 5 x 22. 3mm
- used for i2c port zero drift / bidirectional current / power monitoring sensor module

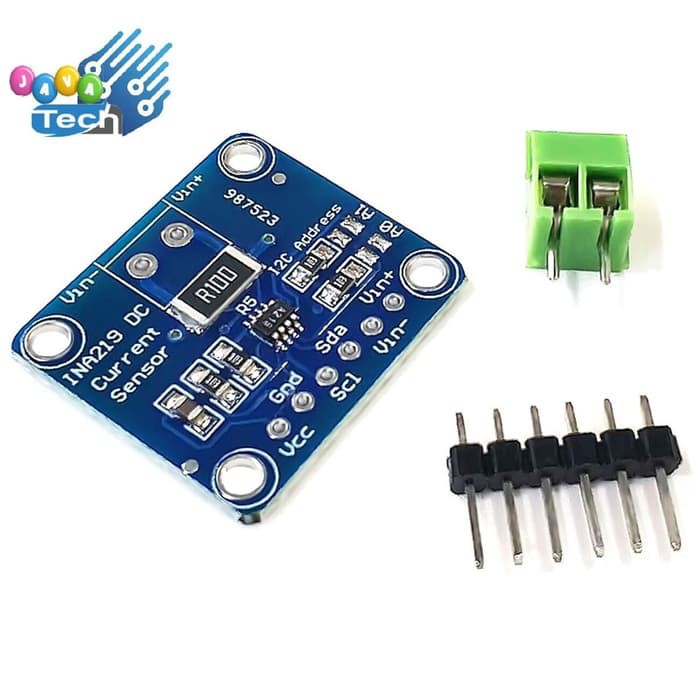

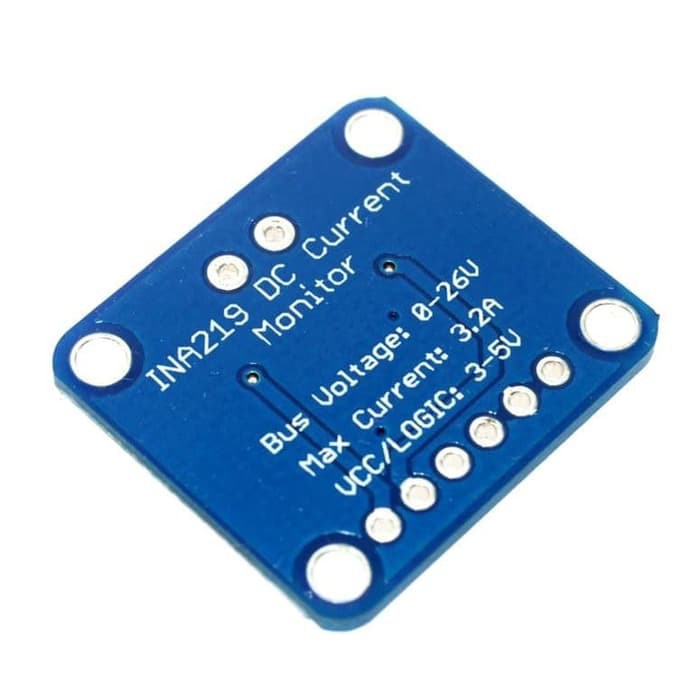

Gambar produk
