In Stock TWOTREES TTC-450 Engraver Mesin Ukir Dan Potong 80W Daya 775spindle Motor 460x460x80mm Area Kerja Untuk MDF /PVC/ Acrylic /Kayu Solid/Particle Board/Plywood

Detail In Stock TWOTREES TTC-450 Engraver Mesin Ukir Dan Potong 80W Daya 775spindle Motor 460x460x80mm Area Kerja Untuk MDF /PVC/ Acrylic /Kayu Solid/Particle Board/Plywood

Features:

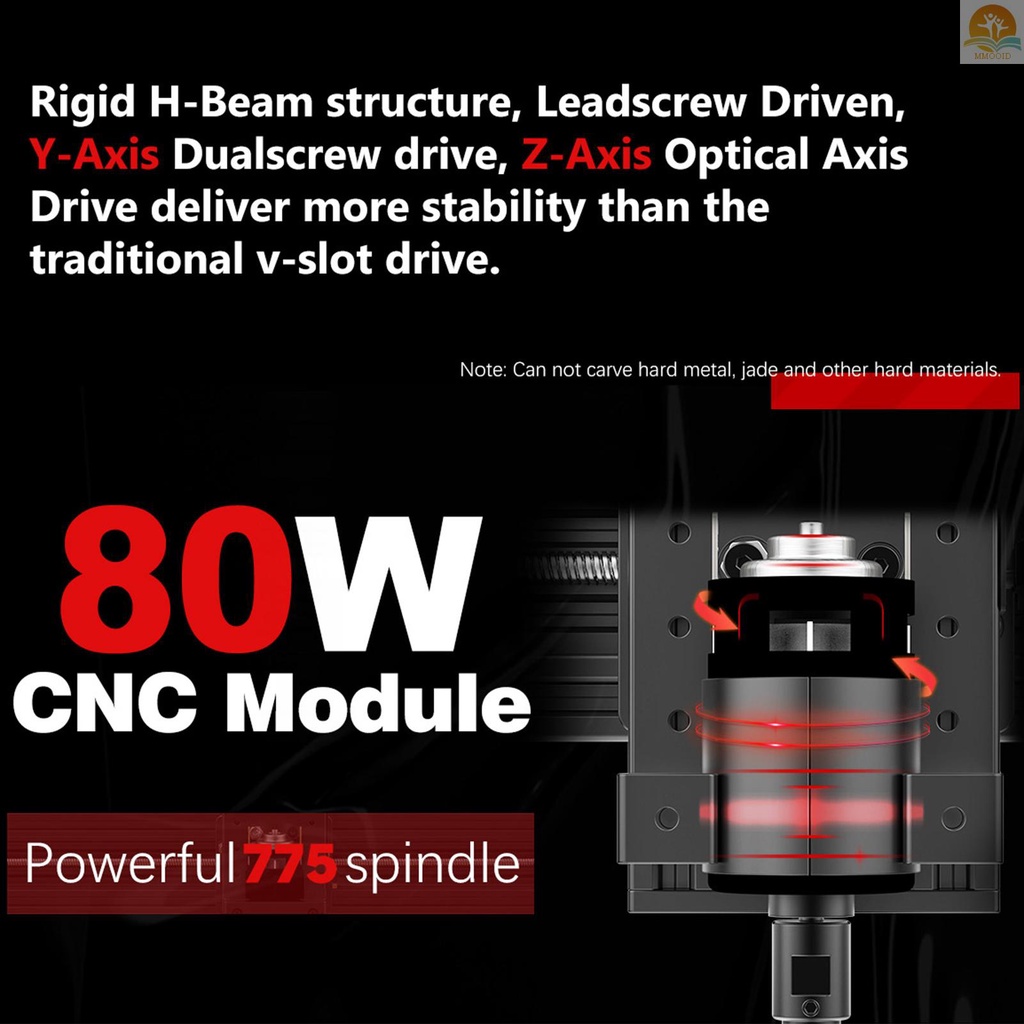

▶ 80W Module, powerful 775 spindle, with rigid H-Beam structure, Leadscrew Driven, Y-Axis Dualscrew drive, Z-Axis Optical Axis Drive deliver more stability than the traditional drive.
▶ Easy to engrave and cut various materials such as MDF, PVC, acrylic, solid wood, particle board, plywood, organic board, epoxy resin, nylon, PCB, , , carbon fiber board, etc.
▶ Adopts X, Y, Z three-axis movement control, the Z-axis movement accuracy is up to 0.0025mm,thereby improving the accuracy and stability of the product.
▶ The engraving head is compatible with a wide variety of clamp sets for different carving needs. Comes with a blade head.
▶ Equipped ESP32 chip, 32-bit microprocessor, high speed dicing. Built-in WiFi module, it supports , APP, and Screen control directly.

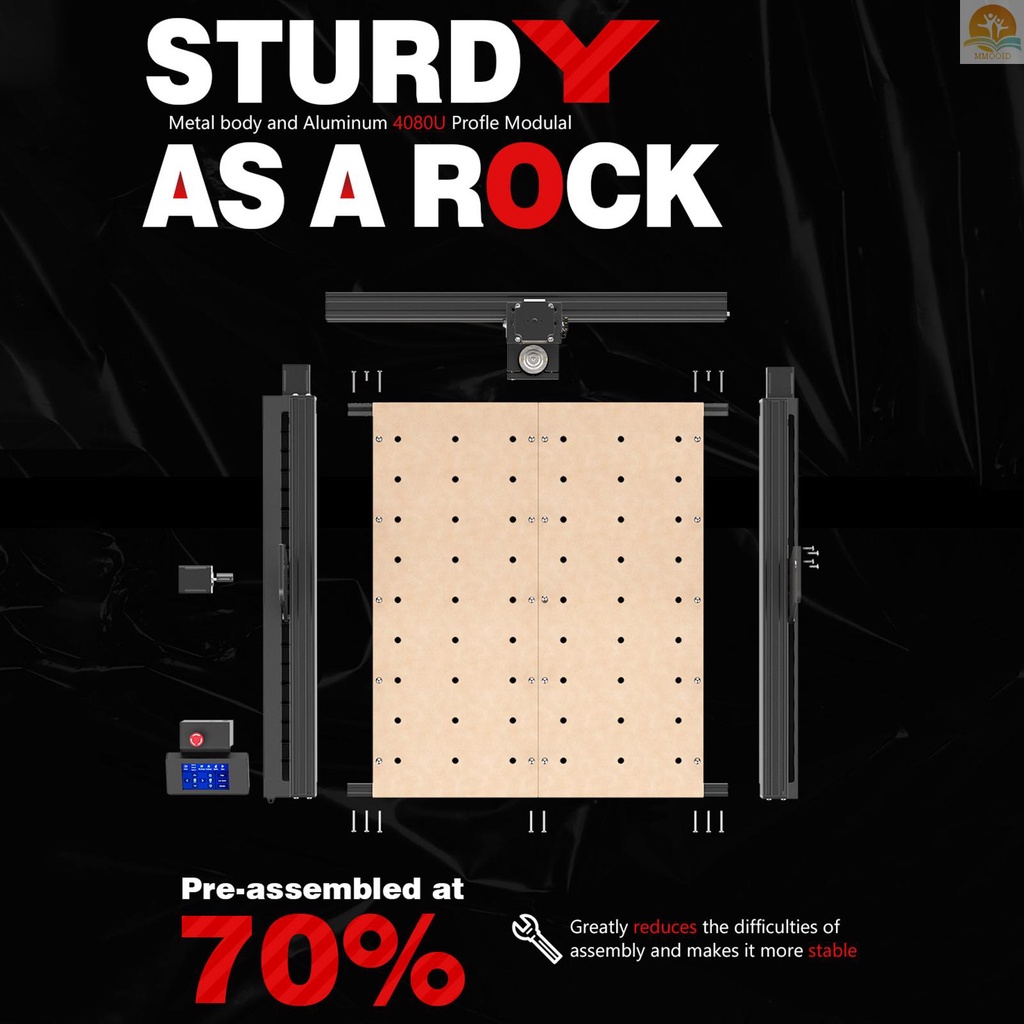

▶ All metal structure, 70% pre-assembled parts with modular design makes installation easier than ever before. 460x460x80mm work area provides a large space to create.

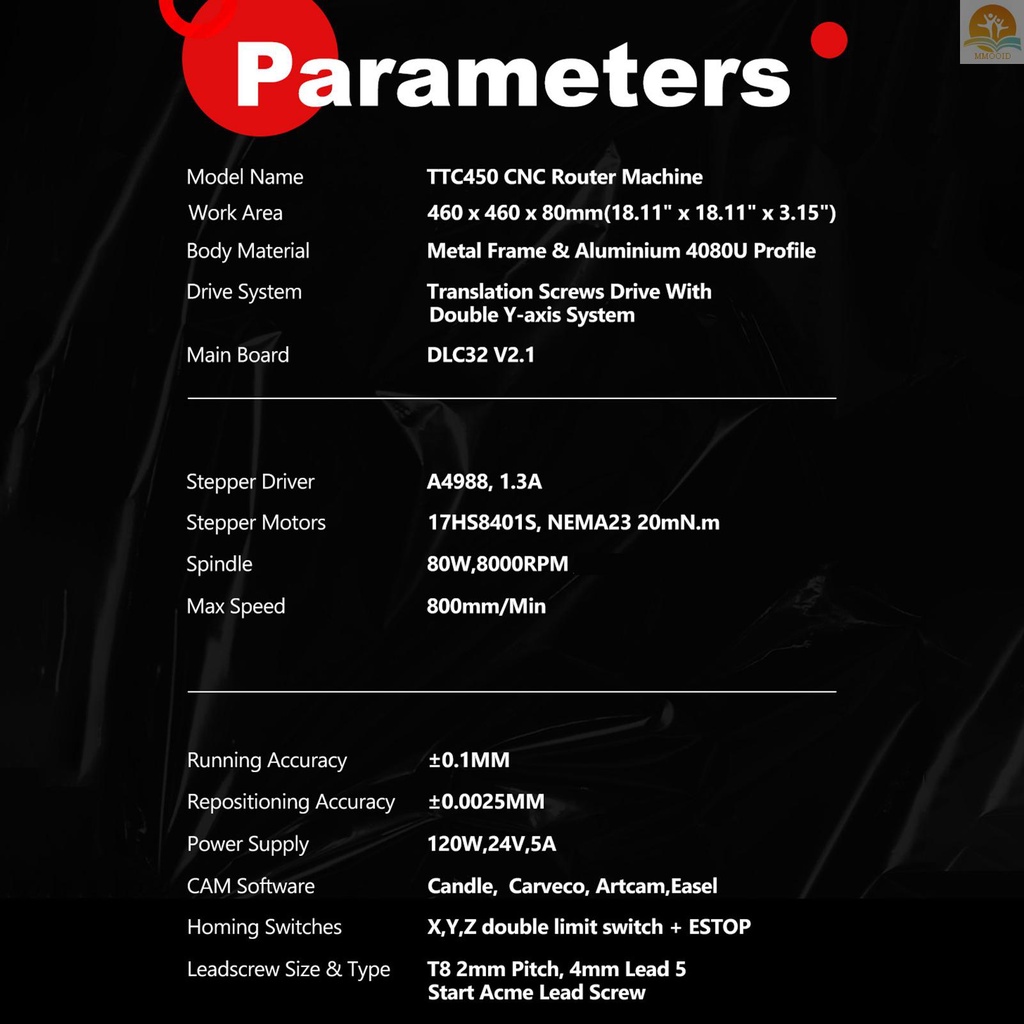

Specification:
Model: TTC-450

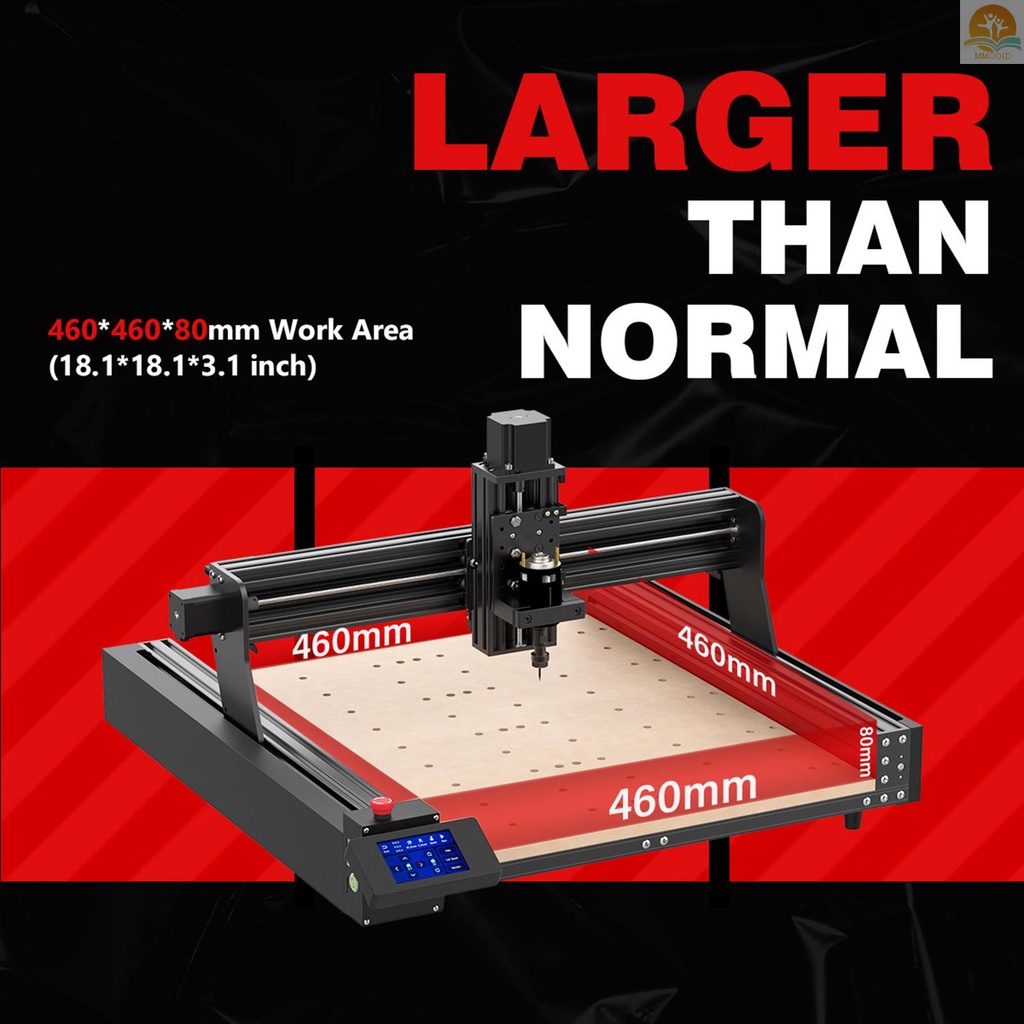

Engraving area: 460x460x80mm
Power adapter power: 120W, 5A, 24V
Spindle parameters: 24V 5A, 775 motor 8000RPM
Tool setting method: software control
Control Board Compatibility: GRBL
Engraving speed MAX: MAX 800mm/min
Limit switch: X, Y, Z three-axis double limit + ESTOP
Engraving accuracy: 0.01mm
Stepper driver: A4988 1.3A (other drivers can be connected to the motherboard)
Linear transmission mode: built-in POM wheel
Stepping motor: NEMA 23 (2 phases, 1.5A) torque 20mN. m
Transmission type: T8 screw pitch 2mm lead 4mm screw rod
Y-axis: Double Y-axis with built-in rollers
Emergency stop switch: Yes
Motherboard: ESP32 highly integrated chip with low power consumption, high stability and reliability, ultra-high processing speed and large memory, supports offline controllers, supports 4 axes, and supports PWM laser signals.

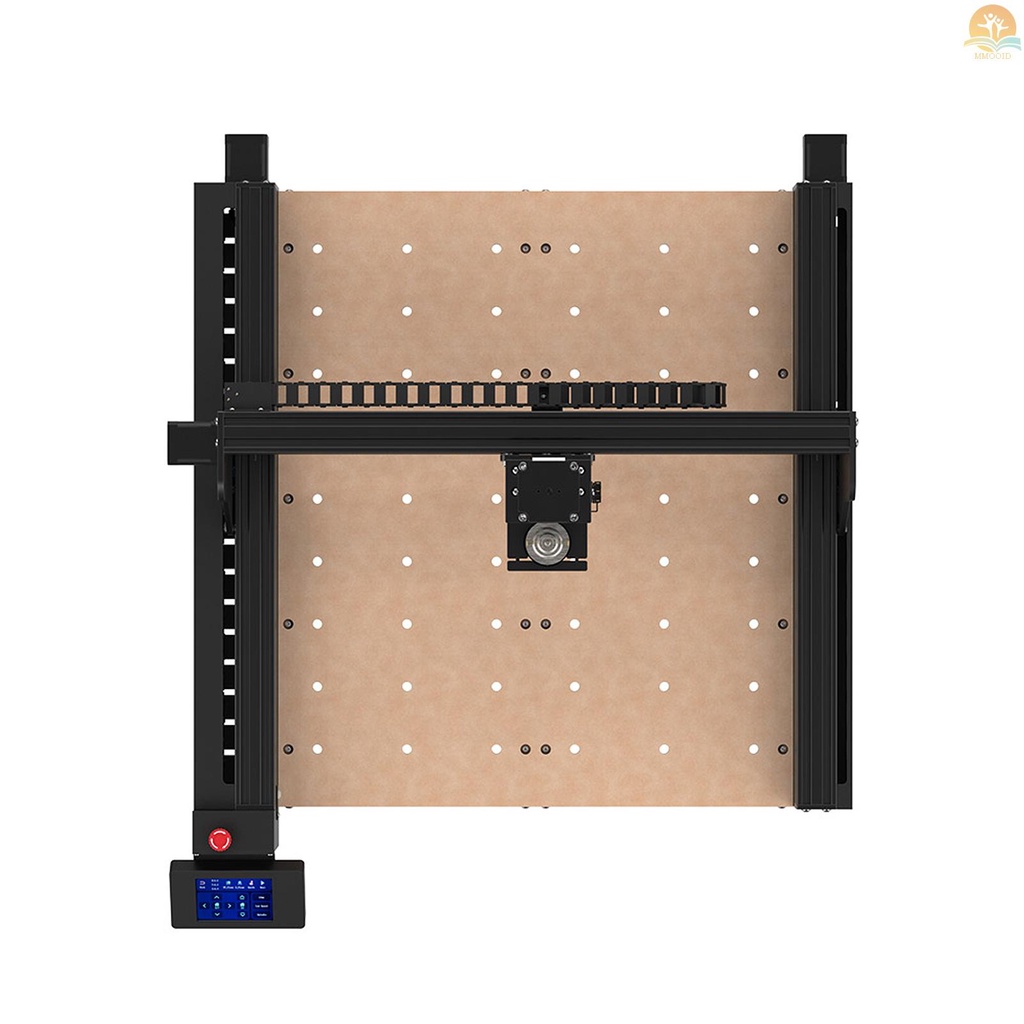

Harness management: XY drag chain
Operating system: Windows XP/7/8/10, MAC OS
Engraving material: engraving-cutting: MDF, PVC, acrylic, solid wood, particle board, plywood, organic board, epoxy resin, nylon, PCB, , , carbon fiber board, etc.
Machine weight: 13.4kg
Packing weight: 18kg/39.6lb
Packing size: 715x310x280mm/28.1x12.2x11cm
Packing List:
1 x TTC-450 Laser Engraver
