[IN STOCK/COD]TPA3116D2 2x 50W + 100W 2.1 Channel Digital Subwoofer Power Amplifier Board

Detail [IN STOCK/COD]TPA3116D2 2x 50W + 100W 2.1 Channel Digital Subwoofer Power Amplifier Board

【Friends Welcome to #OlahragaOutdoorElektronik# store , If you love our products, please click and give me five-star✧✧✧✧✧thanks. My product is very good quality, my price is also very Cost-effective, my friends, just enjoying your shopping here, come on baby!】

Why choose our store?
» 〖 FREE SHIPPING 〗 RM0.00 for order > IDR232,000 (mix products) from our store.
» 〖 READY STOCK 〗 for all of our products.
» 〖 SAME DAY POST 〗 for all orders made before 5pm.
» 〖 FAST DELIVERY 〗 post from Overseas, normally shipping out 1-2 days.
» 〖 WARRANTY PROGRAM 〗 if you are not satisfy with our product or whatsoever, please do contact us to learn more without hesitate
» Working hour : Mon - Sta @ 09:00 -20:00
»〖 Follow #OlahragaOutdoorElektronik# 〗 You can get IDR2000 discount

Features:

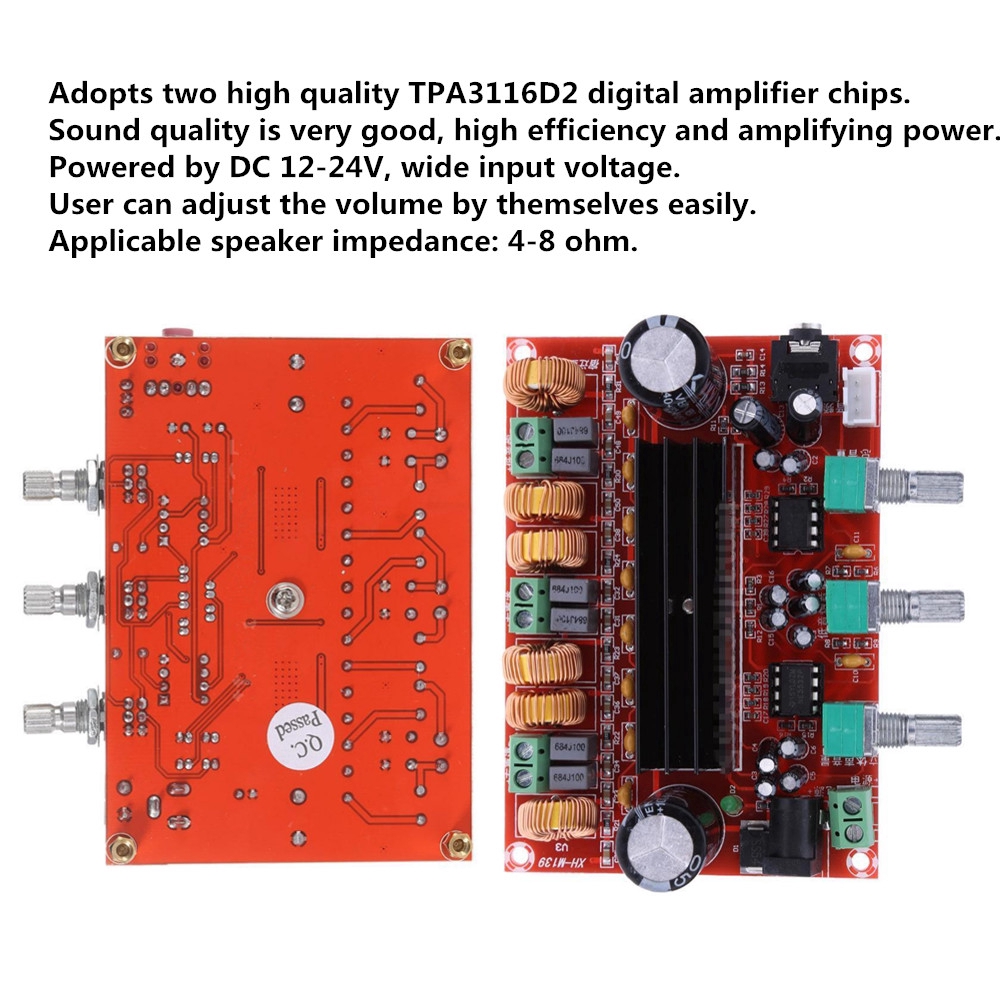

Adopts two high quality TPA3116D2 digital amplifier chips.
Sound quality is very good, high efficiency and amplifying power.
50W*2+100W 2.1 channels(left/right channel and subwoofer channel), high efficiency and low-heat.
Powered by DC 12-24V, wide input voltage.
User can adjust the volume by themselves easily.
Applicable speaker impedance: 4-8 ohm.
Just connect the power supply and loudspeaker box, enjoy the pure digital music!

Notice:
This amplifier board must be powered by DC power(DC12-24V), it's better to use high-performance switch power. Don't use transformer!

Specifications:
Supply Voltage: DC 12-24V
Chip: TPA3116*2
Channel Type: 3 Channels(Left Channel, Right Channel, Subwoofer)
Output Power: 50W*2 + 100W*1 Subwoofer
Output Match: 4-8 ohm
Audio Output: Terminals
Frequency Response Range: 14-100KHz
SNR: 100dB
Switching Frequency: 1.2MHz
PCB Board Size: 100 * 70 * 30mm / 3.94 * 2.75 * 1.18in (L * W * H)
Weight: 113g / 3.98oz
Package Size: 13.5 * 11 * 5cm / 5.31 * 4.33 * 1.97in (L * W * H)
Package Weight: 178g / 6.3oz

Package List:
1 * 2.1 Channel Audio Amplifier Board

#TPA3116D2 #Digital #Subwoofer #Power #Amplifier #Board
