(In Stock) Alat Pengangkat Elektromagnetik Dc 12v Ultra Tipis

Detail (In Stock) Alat Pengangkat Elektromagnetik Dc 12v Ultra Tipis

Description:
It can be used in the transportation and delivery of material products in the laboratory equipment, treatment, grinding, cutting, cutting and other automated processing production lines。
Easy to control and remote operated
Saving energy, safe and reliable,
Suction cup electromagnet requirements of the object surface should be as flat as possible, and the adsorption area should not be less than the suction side of the electromagnet, otherwise it will affect the suction, the effective distance of 0.
The suction can be adjusted by adjusting the voltage within the rated voltage range, but not over the rated voltage.
Voltage: DC12V
Specification:
Material: metal
Work Temperature
Static:-10 ℃ ~ 100 ℃, short-term up to 120 ℃; Dynamic -20 ℃ ~ 80 ℃, short-term up to 100 ℃.

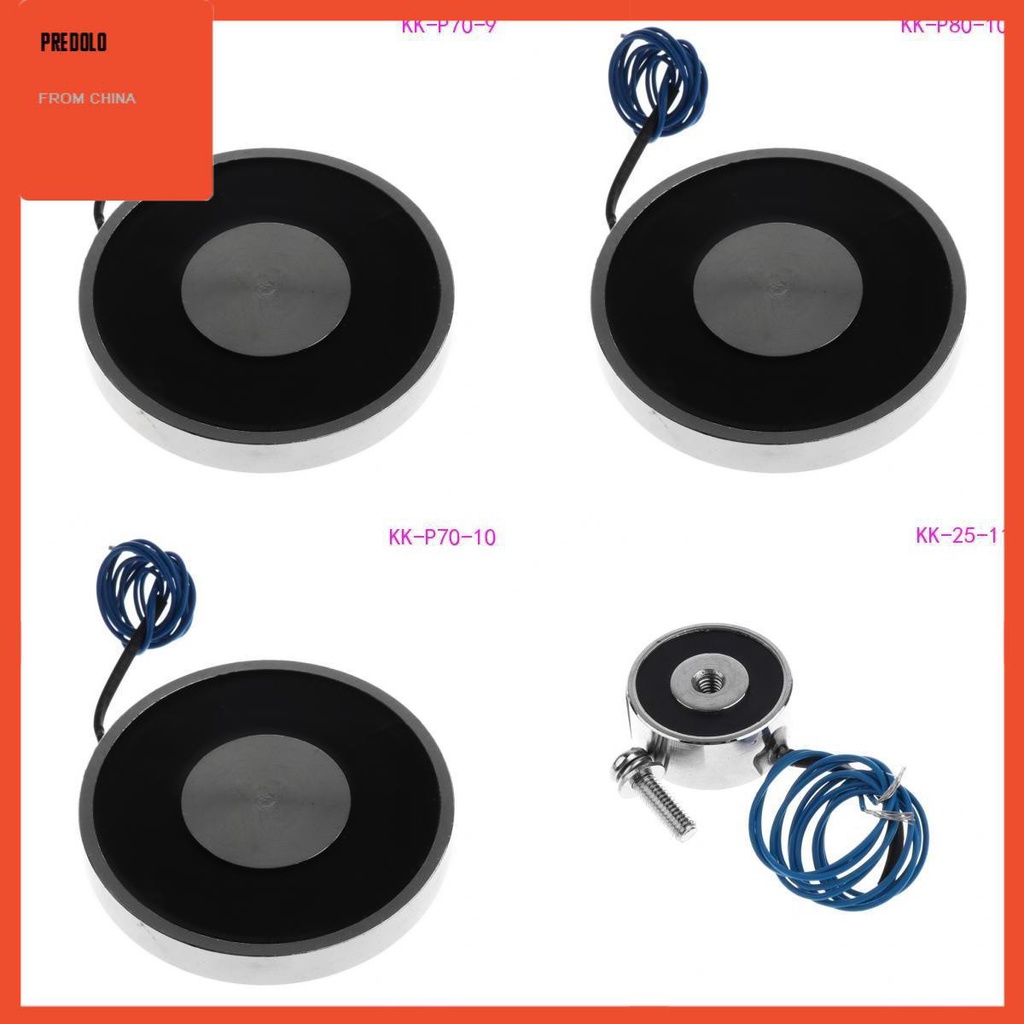

Size:
KK-P70 / 9: Dia: 7cm / 2.76inch, Height: 0.9cm / 0.35inch, Suction: 20KG
KK-P80 / 10: Dia: 8cm / 3.15inch, Height: 1cm / 0.39inch, Suction: 25KG

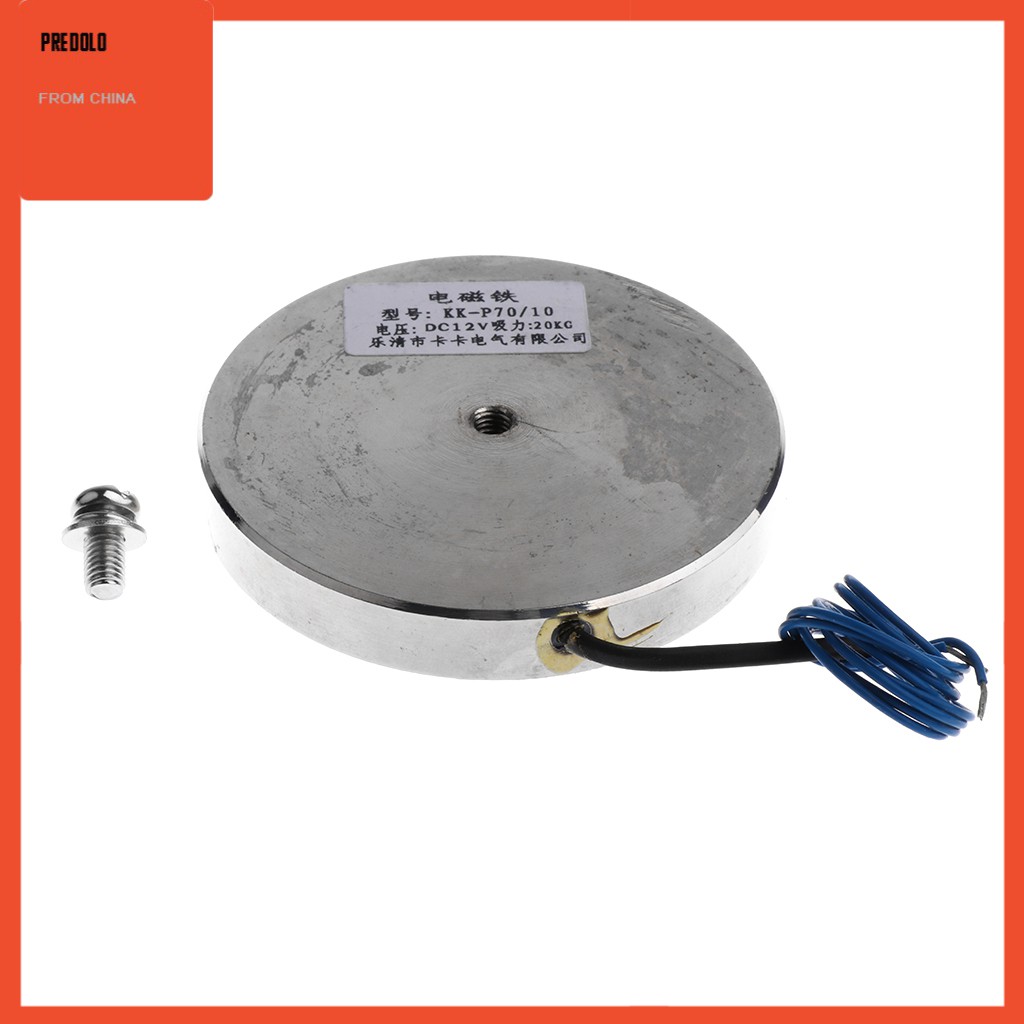

KK-P70 / 10: Dia: 7cm / 2.76inch, Height: 1cm / 0.39inch, Suction: 20KG
KK-25/11: Dia: 2.5cm / 0.98inch, Height: 1.1cm / 0.43inch, Suction: 5KG
Package Includes:

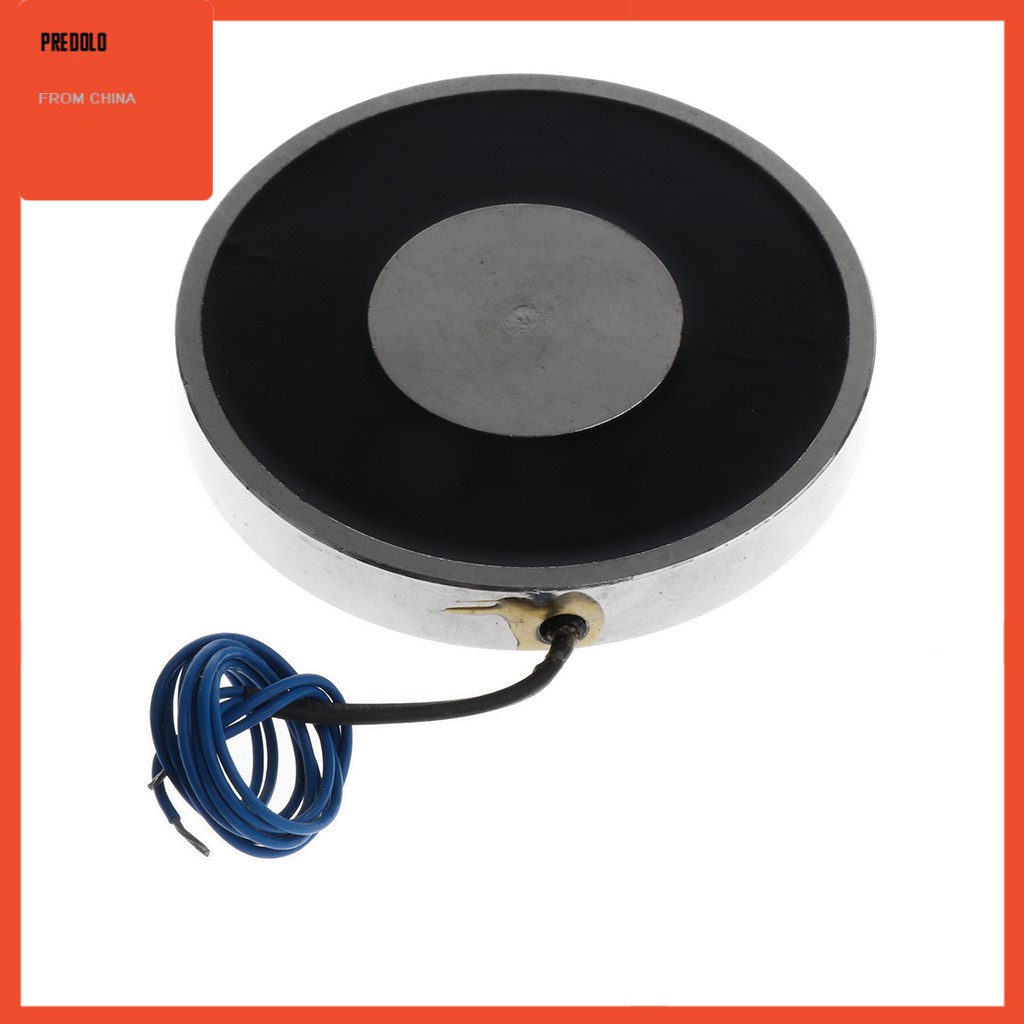

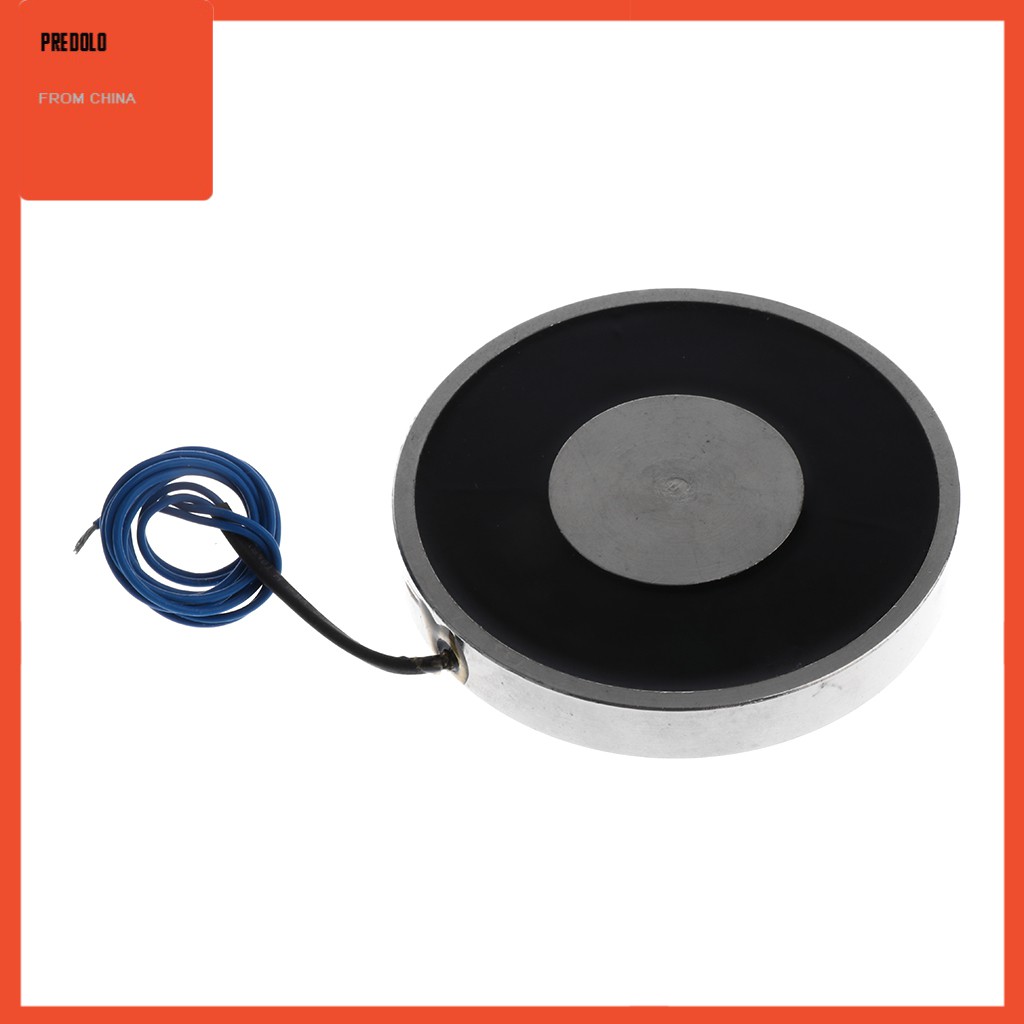

1 Piece Ultrathin Sucker Electromagnet
