IMAX B6AC 80W LiPo nimh 3s rc battery balance charger B6 ac

Detail IMAX B6AC 80W LiPo nimh 3s rc battery balance charger B6 ac

Original IMAX B6AC 80W Dual Power input
Profesional Balance Charger & Discharger Battery

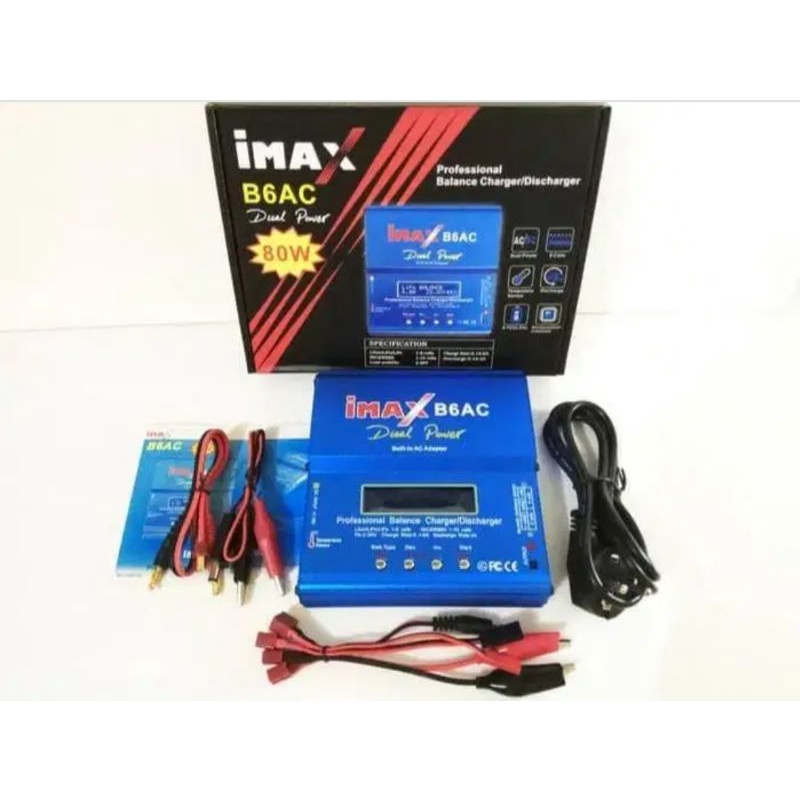

Kelengkapan :
1 Imax B6AC 80W
1 kabel power listrik 220v EU Plug
1 kabel Aligator to Jack DC 5,5mm
1 kabel Aligator to T PLUG
1 kabel Banana Male to T PLUG
1 kabel JST Socket to T PLUG
1 kabel jack 3.5 to T PLUG
1 kanel socket J16 to T PLUG
1 Manual Book

Merk : Imax
Type : B6AC 80W Dual Power

Input :
100~240V AC (via kabel power)
11-18V DC (via jack DC 5,5mm)

Output :
2s/3s/4s/5s/6s Balance charging Socket (HX2.5mm)
Female Banana Plug (single/non-balance charging)

Charger Rate : 0.1~6.0Ampere (Max 80W)
Discharge Rate : 0.1~2.0Ampere (Max 10W)

Arus drain untuk Lipo Balane : 300mA/cell

kemampuan pengisian battery :
Li-ion/Lithium/Lipo : 1~6 Series
NiCD/NiMh : 1~15 cell
Pb Battery Voltage : 2~20V

Net Weight : 531g
Dimension : 134x142x36 mm

Features:
This item is for a rapid charger/discharger for many kinds of battery of RC hobby,
with built in balancer for lipo battery. Battery that can be charged by this
charger,Lipo / Li-ion / LiFe / NiMh / NiCad / Pb / Lead Acid
High-power and high-performance circuit
Microprocessor controlled
Maximum safety: High sensitivity, Capacity limit, processing time limit,
tempreture limit, input power monitor
Monitoring the voltage of individual cell
Can charge Li-ion / LiPo / LiFe 1-6 cells, and Ni-Cd / NiMH 1 -15 cells
Dual Power, built-in AC adapter

Descriptions:
Undefined large range of charge currents
Store function, allows safe storage current, and data storage (Store up to 5
packs in memory)
Battery break in and cycling
Built-in temperature sensor
Separate voltage detector for balance charge mode.
Temperature cable and Power wire is not included

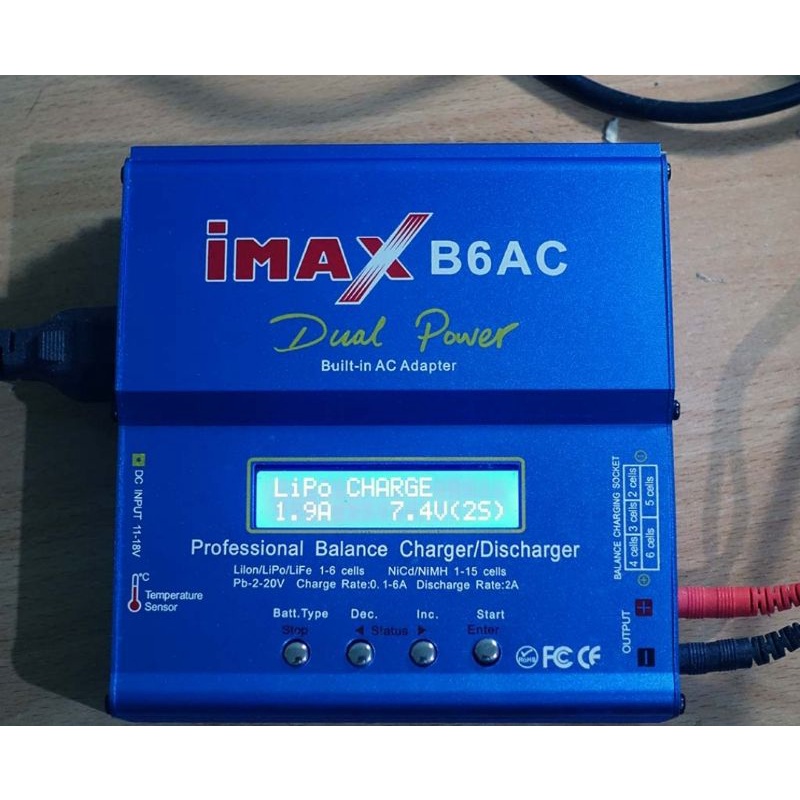

Gambar produk
