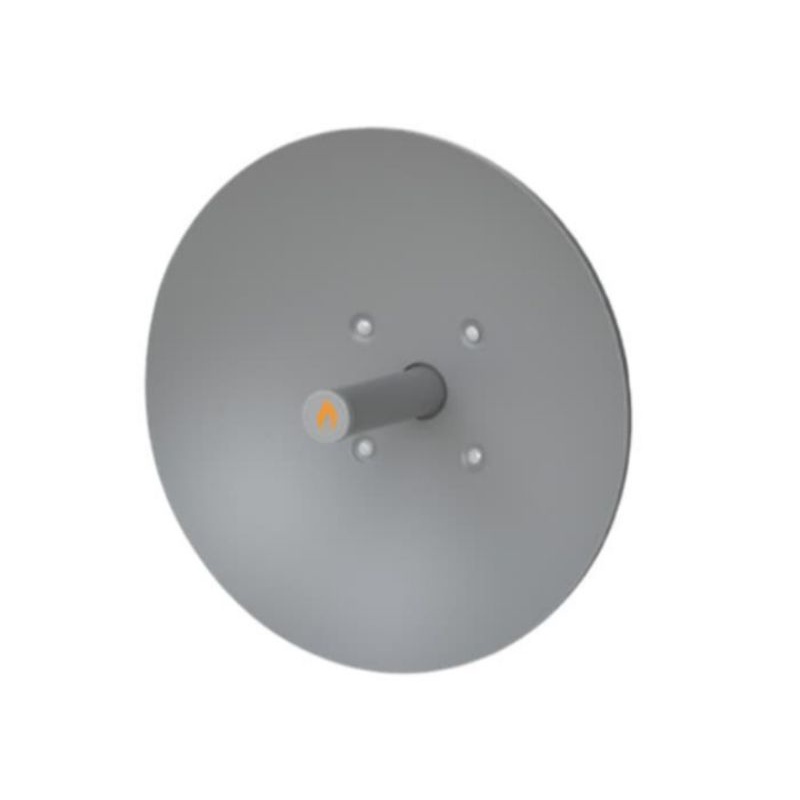

IgniteNet FD5-30R
IgniteNet Fusion Dish .6m, 5Ghz, 30dBi, Dual Type-RPSMA Pigtails w/Weather Hood

Product Specifications
'' Frequency Range: 5.1 - 5.9GHz
'' Antenna Gain: 30dBi
'' Polarization: Dual Polarity H/V or Dual Slant +/-45 degrees
'' 3dB Beamwidth: 6 degrees
'' VSWR: 1:5:1 Typical
'' Port to Port Isolation: 35dB min.
'' Front to Back Ratio: >30dB
'' Cross Polarization: >30dB
'' Impedance: 50 ohm
'' Dimensions: 280 x 90 x 50 mm (11 x 3.6 x 2 in)
'' Weight: 10kg (22 lbs)
'' Wind Survivability: 201 kph
'' Wind Loading: 80 kg (53 kg with radome)
'' Pole Mount Range: 5.0 - 11.4 cm (2 - 4.5 in)
'' Standards/Regulatory Compliance: FCC/IC, CE

The IgniteNet Fusion Dish is a high performance .6m dish for the 2.4GHz and 5GHz unlicensed bands. Its reimagined design is centered around 3 key ingredients: simplicity, performance, and integration. For simplicity the Fusion Dish dish requires only one tool for assembly and integration. Also the bracket is thoughtfully designed as two pieces to allow for easy installation. For improved performance, the Fusion Dish features a redesigned waveguide to enable low-loss radio connections, while simplifying the installation at the same time. Easy integration is further achieved in the innovative pigtail and weather hood.
Innovative Radio Connections

The Fusion Dish features not only the standard N-type connection option but also is available with RPSMA pigtails + weather hood as well as with Fusion mating, a new, super simple antenna/radio mating system developed by IgniteNet.
Dual Polarity or Dual Slant?

The Fusion Dish is designed to support both dual polarity (H/V) as well as dual slant operation depending on assembly. Now one dish can handle both system types!

The Fusion Dish innovative mounting design allows for poles varying in size from 5 to 11.4cm (2 to 4.5in.) in diameter. In addition, adjustme
