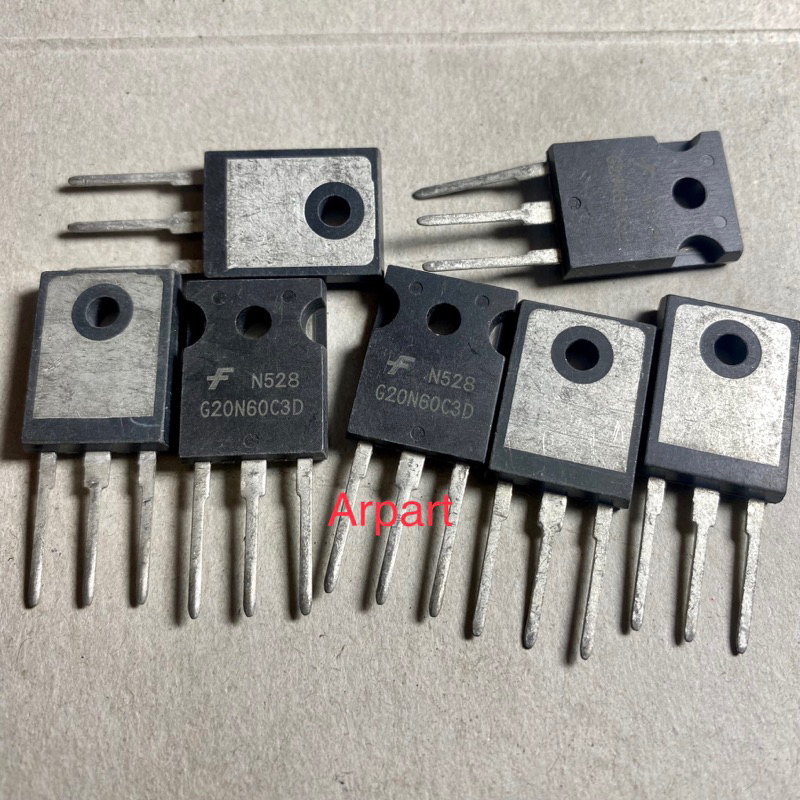

IGBT HGTG20N60C3D G20N60C3D

Detail IGBT HGTG20N60C3D G20N60C3D

Features
• 45A, 600V, TC = 25oC
• 600V Switching SOA Capability
• Typical Fall Time. . . . . . . . . . . . . . . . 108ns at TJ = 150oC
• Short Circuit Rating
• Low Conduction Loss
• Hyperfast Anti-Parallel Diode

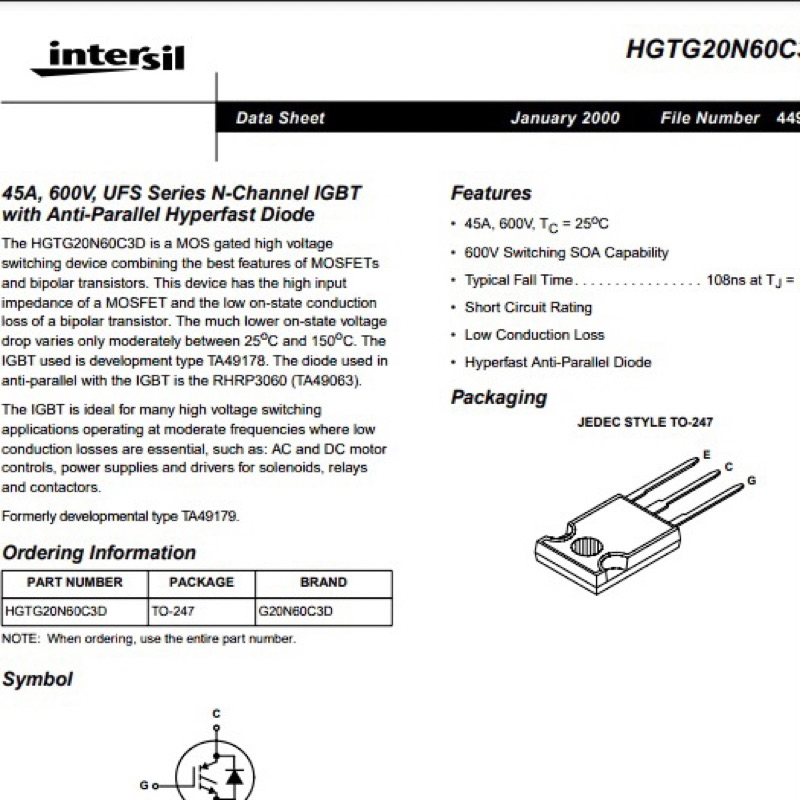

45A, 600V, UFS Series N-Channel IGBT
with Anti-Parallel Hyperfast Diode
The HGTG20N60C3D is a MOS gated high voltage
switching device combining the best features of MOSFETs
and bipolar transistors. This device has the high input
impedance of a MOSFET and the low on-state conduction
loss of a bipolar transistor. The much lower on-state voltage
drop varies only moderately between 25oC and 150oC. The
IGBT used is development type TA49178. The diode used in
anti-parallel with the IGBT is the RHRP3060 (TA49063).
The IGBT is ideal for many high voltage switching
applications operating at moderate frequencies where low
conduction losses are essential, such as: AC and DC motor
controls, power supplies and drivers for solenoids, relays
and contactors.
Formerly developmental type TA49179.
Symbol
Features
• 45A, 600V, TC = 25oC
• 600V Switching SOA Capability
• Typical Fall Time. . . . . . . . . . . . . . . . 108ns at TJ = 150oC
• Short Circuit Rating
• Low Conduction Loss
• Hyperfast Anti-Parallel Diode
Packaging
JEDEC STYLE TO-247
Ordering Information
PART NUMBER PACKAGE BRAND
HGTG20N60C3D TO-247 G20N60C3D

Gambar produk
