IDE TO CF ADAPTER

Komputer & Aksesoris > Komponen Network > Wireless Adapter & Kartu Network > IDE TO CF ADAPTER
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Toko Optima KiranaLihat semua produk Komputer & Aksesoris oleh Toko Optima Kirana
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail IDE TO CF ADAPTER

Jual : IDE TO CF ADAPTER

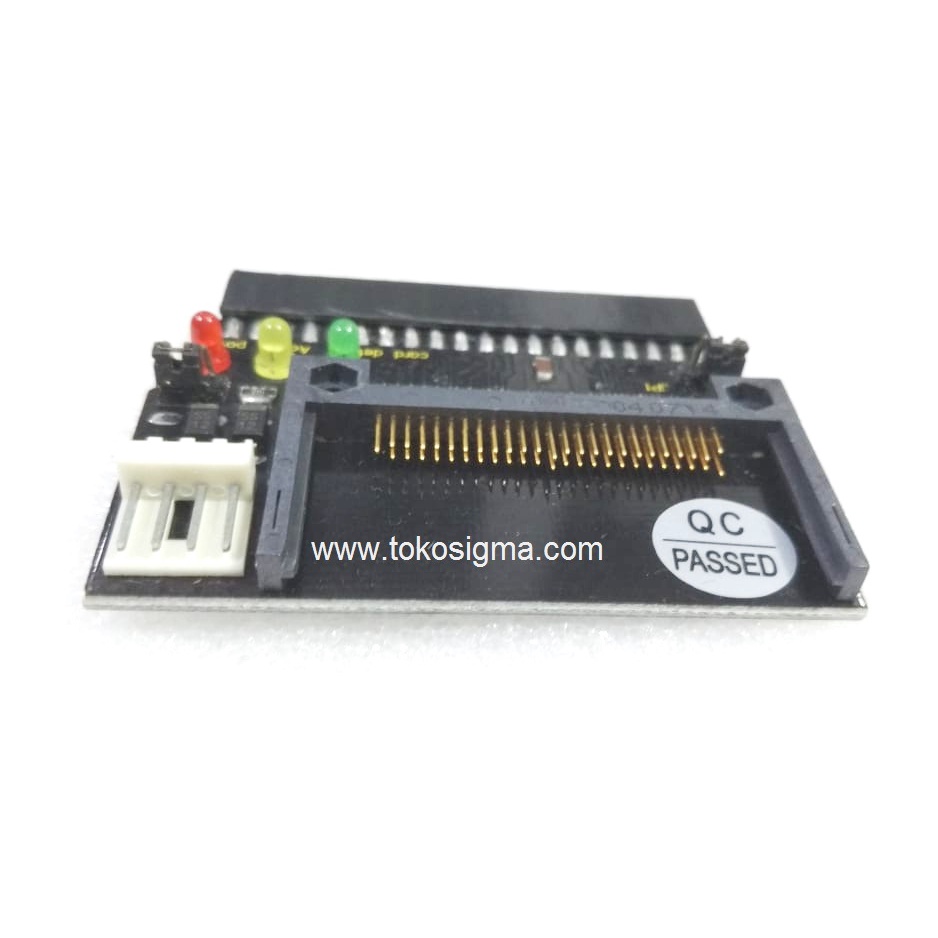

Compact Flash to IDE Adapter, CF to IDE converter, IDE to CF Adapter,40pin or 44pin

It is an adapter for connecting a compact flash memory card to a 3.5"IDE host interface, aiming at educational sectors, It development, and the embedded technology enthusiast to enable the use of a compact flash card as an IDE hard drive.

Features

Directly plugged into IDE connector on the motherboard without an IDE cable.
No external power needed when used on VIA's EPIA series motherboard.
On-board led indicators for power-on and compact flash access.
Voltage selection for +3.3v / 5v compact flash.
Master / slave mode selection.
Fully compatible with CF type I, II & Micro Drive.
40-way ( 2.54mm ) standard IDE connector.
Power input: +5v, floppy disk drive power connector.
Board size: 61 x 52 x 0.8mm.

Applications
Linux-based set-top boxes, routers, firewalls.
Diskless network clients.
Industrial computers.
Any other device requiring rugged solid-state storage.

Specification
System requirement.
Pc or Mac with one IDE connector.
Ms windows, Mac OS, Linux operating system.

Model : 40-pin IDE


Package of Contents :
1 x IDE to CF adapter.
1 x User manual.

Gambar produk

IDE TO CF ADAPTER
IDE TO CF ADAPTER
IDE TO CF ADAPTER
IDE TO CF ADAPTER
IDE TO CF ADAPTER
IDE TO CF ADAPTER
Lihat lebih banyak informasi produk
