Detail (Id) 1m 10k 1% 3950 Ntc Temperatur Anti Air

Features:

Stainless steel sheath and waterproof
Measurement range: -20 to 105 °C
Length of wire: 1 meter
Size of probe: 5 x 25 mm
Output： 2 wires
Type: NTC 10k±1% 3950
measure environmental temperatures using arduino ADC and this 10k NTC LINK
Resistance to temperature conversion table LINK
B-constant : 3380K -/+ 1%
Typical Dissipation Constant 5mW/ °C
Probe insulation: >100MOhm
Peak Voltage sustain time: 2 seconds, AC1800V 1mA 2 seconds
Stress sustain: 9.8N (1kgF) for 1 minute no deformation

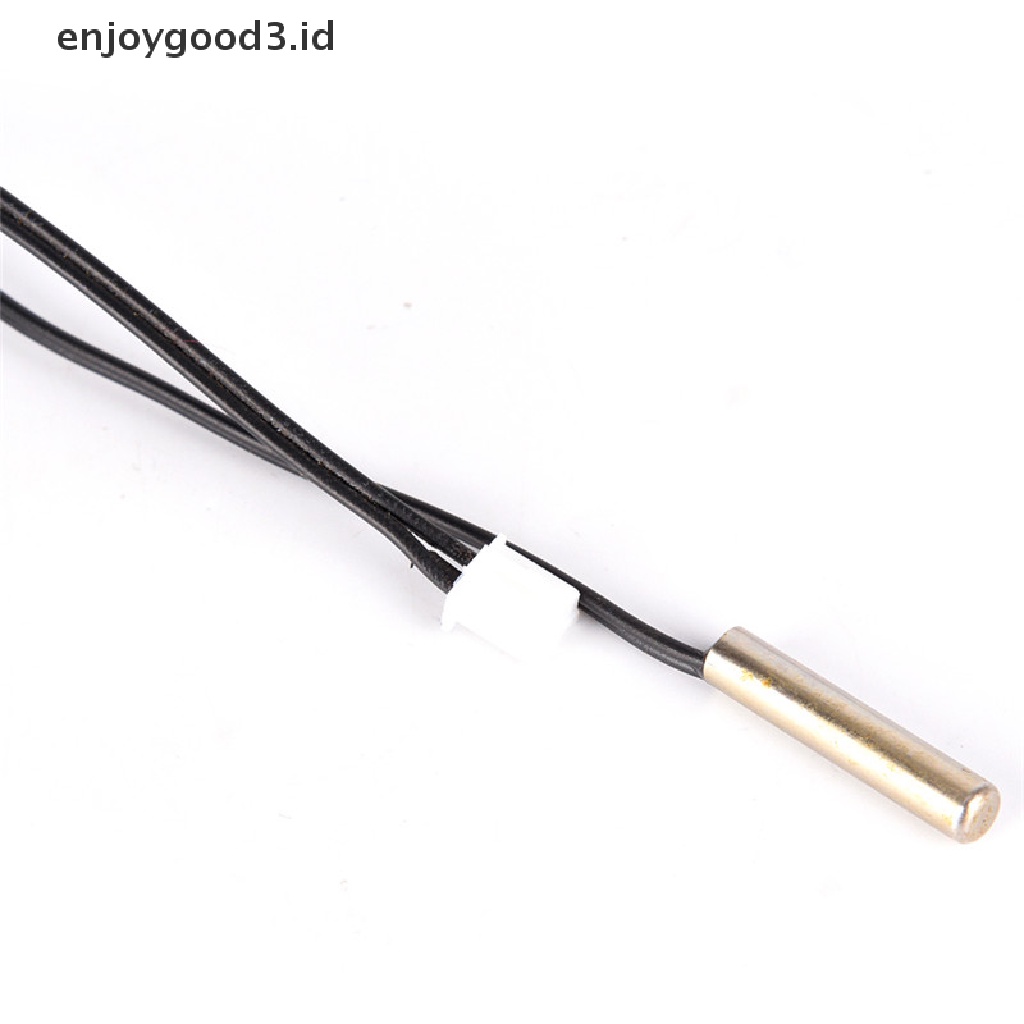

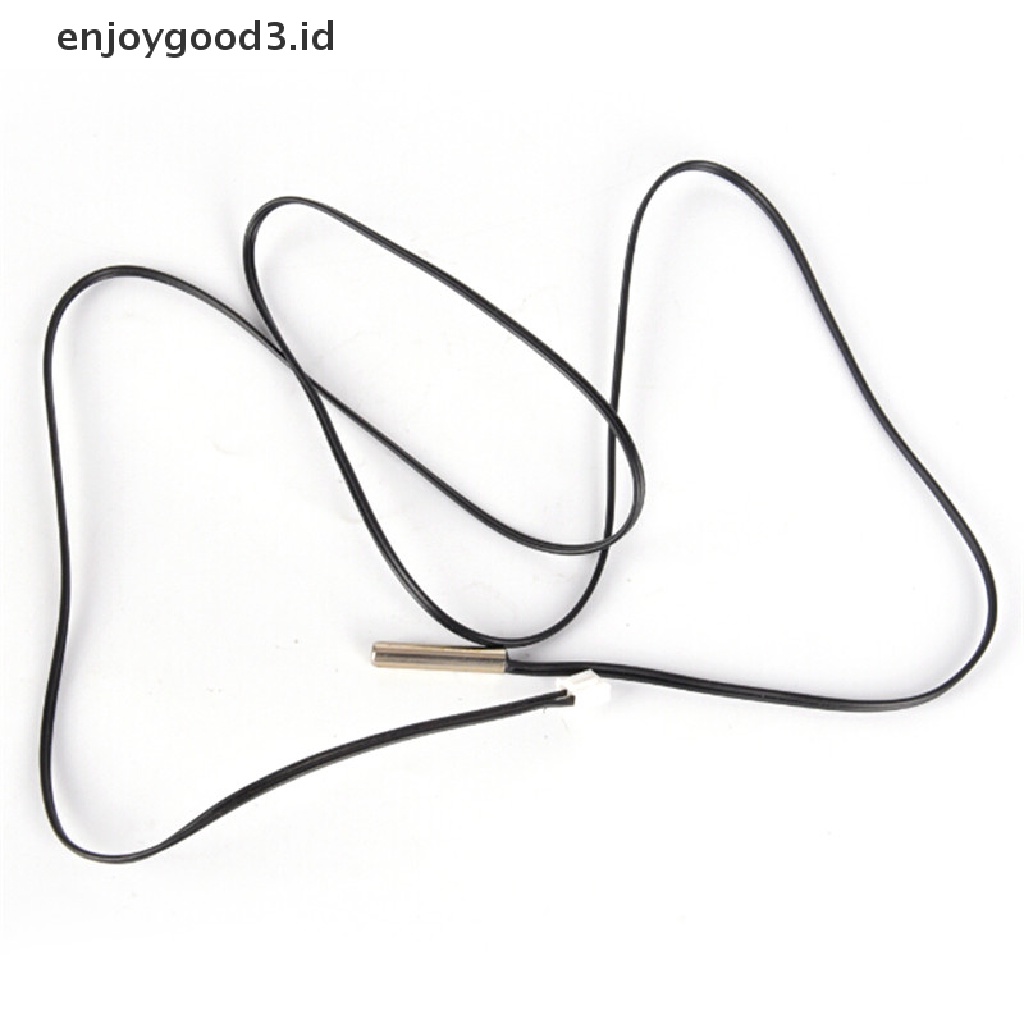

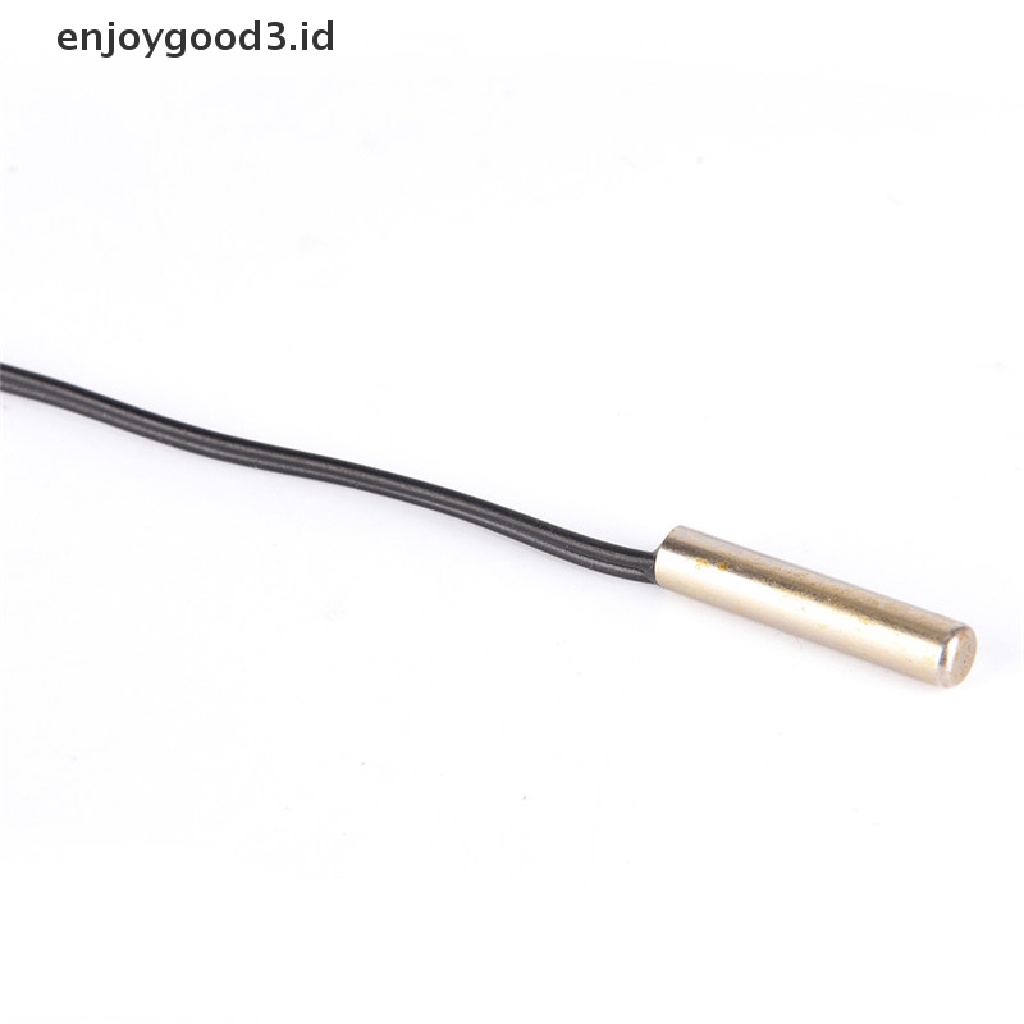

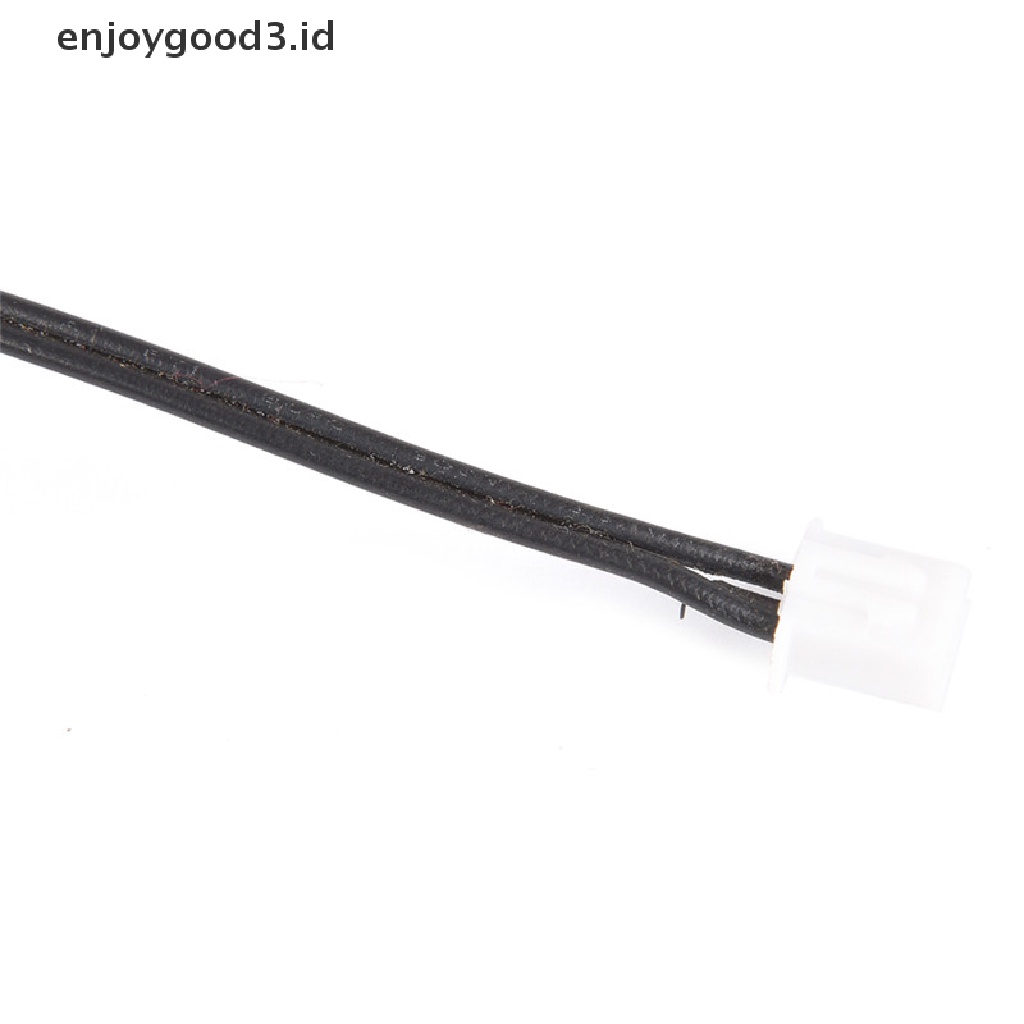

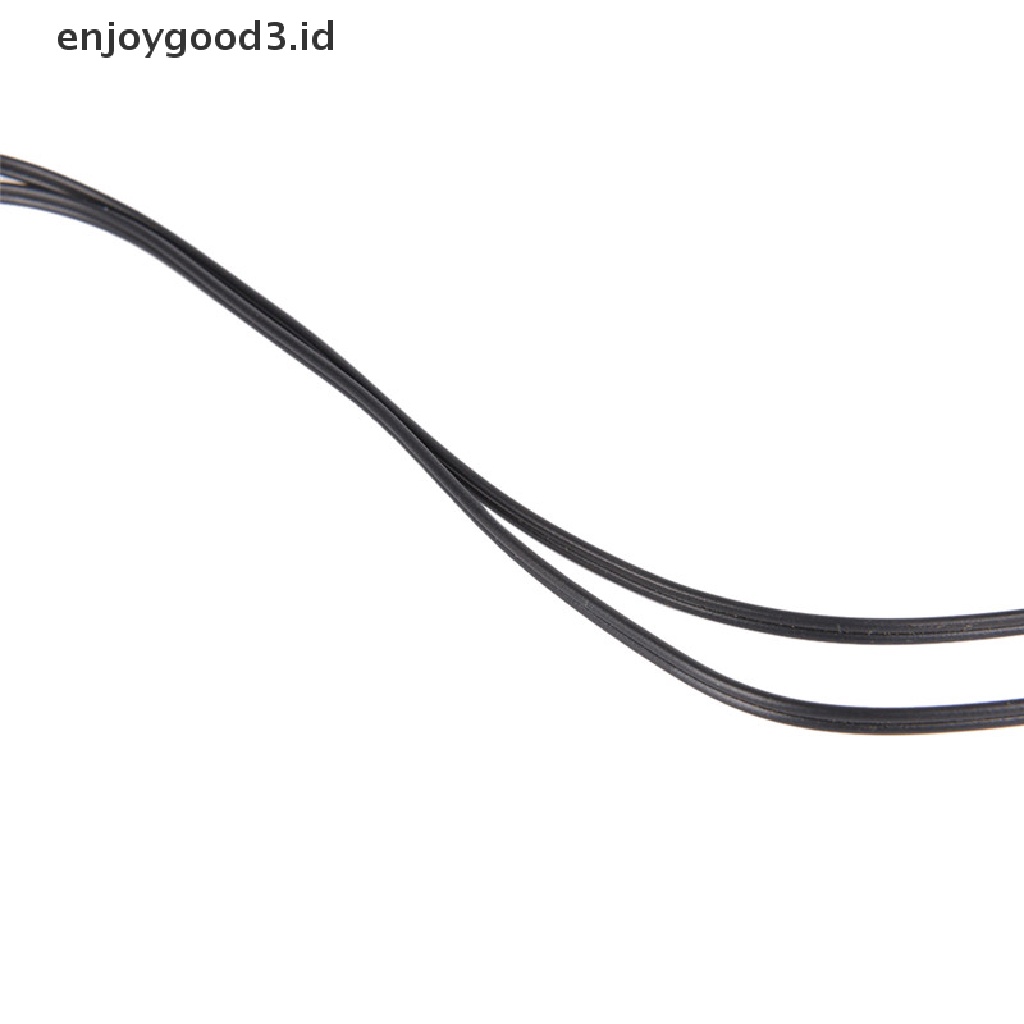

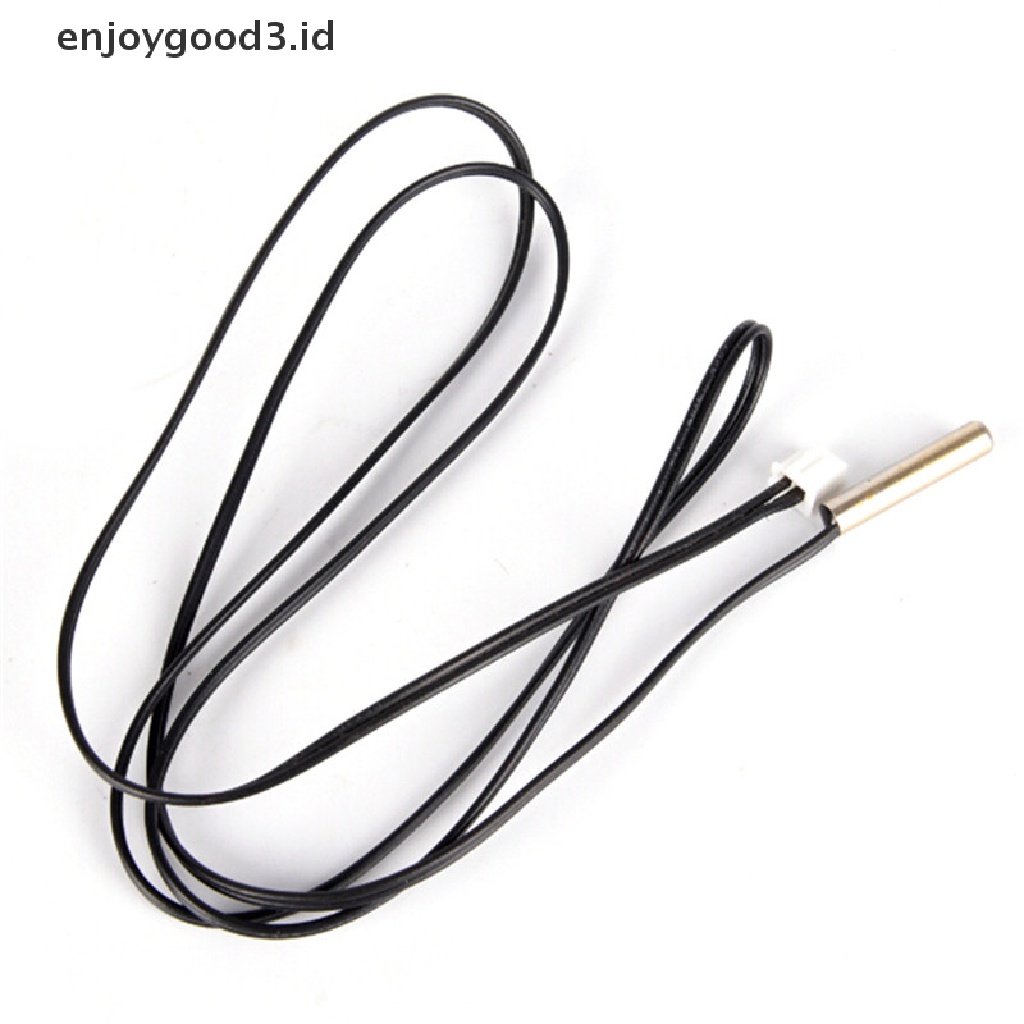

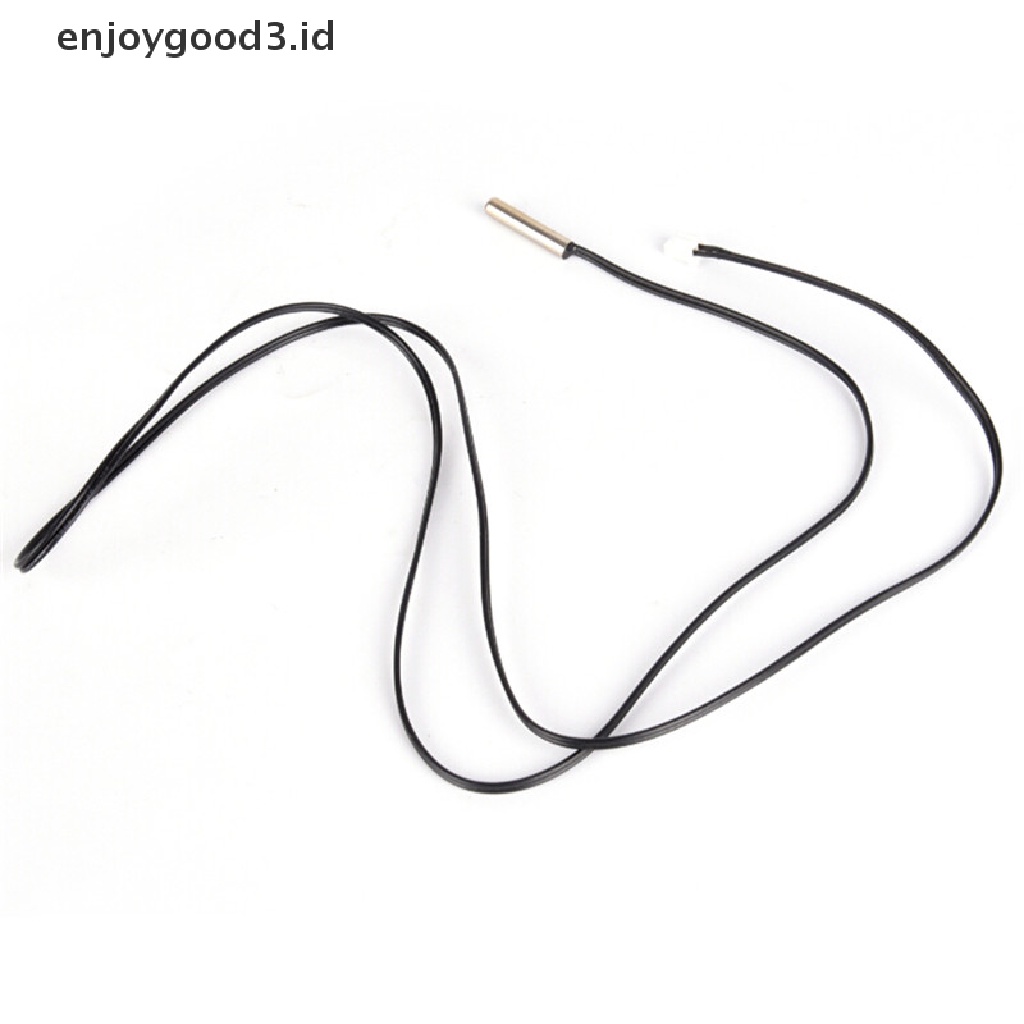

Package Included:1* NTC Thermistor Temperature Sensor Waterproof Probe Cable 1M 10K 1% 3950
