[ICS-9004] IR2110 IR2110PBF DIP 14 PIN HIGH AND LOW SIDE DRIVER

Detail [ICS-9004] IR2110 IR2110PBF DIP 14 PIN HIGH AND LOW SIDE DRIVER

HARAP BACA DESKRIPSI


barang yang kami jual sudah melalui QC pabrik untuk jaminan kualitas dan fungsi. tidak ada garansi untuk barang yang kami jual, kecuali kesalahan kirim barang atau kekurangan barang dapat diselesaikan melalui diskusi. membeli berarti setuju dengan ketentuan ini.

deskripsi:

IR2110 IR2110PBF DIP-14 High and Low Side Driver IC BD63
IR2110 DIP-14 High and Low Side Driver IC Rectifier Mofest BD63

Description
The IR2110/IR2113 are high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output channels.Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 500 or 600 volts.

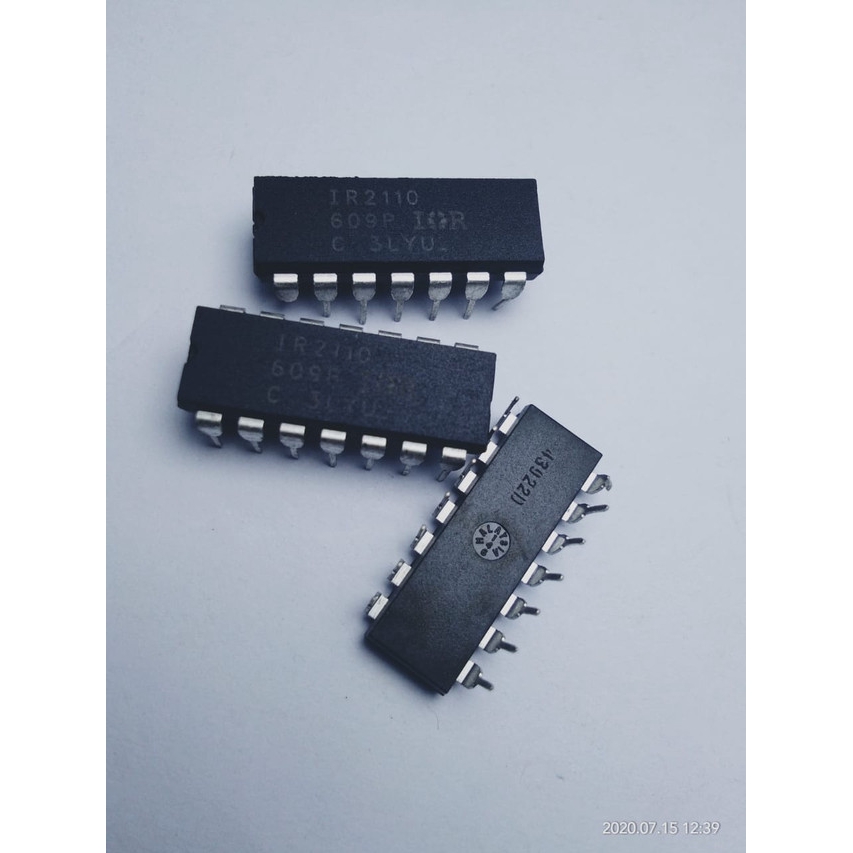

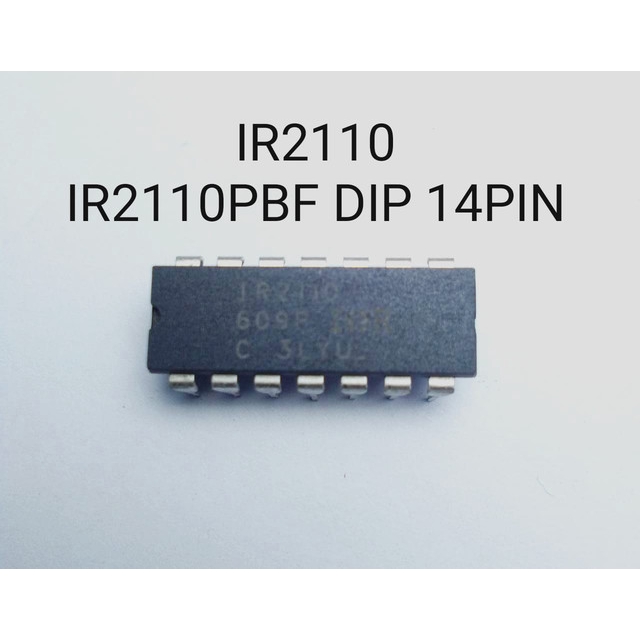

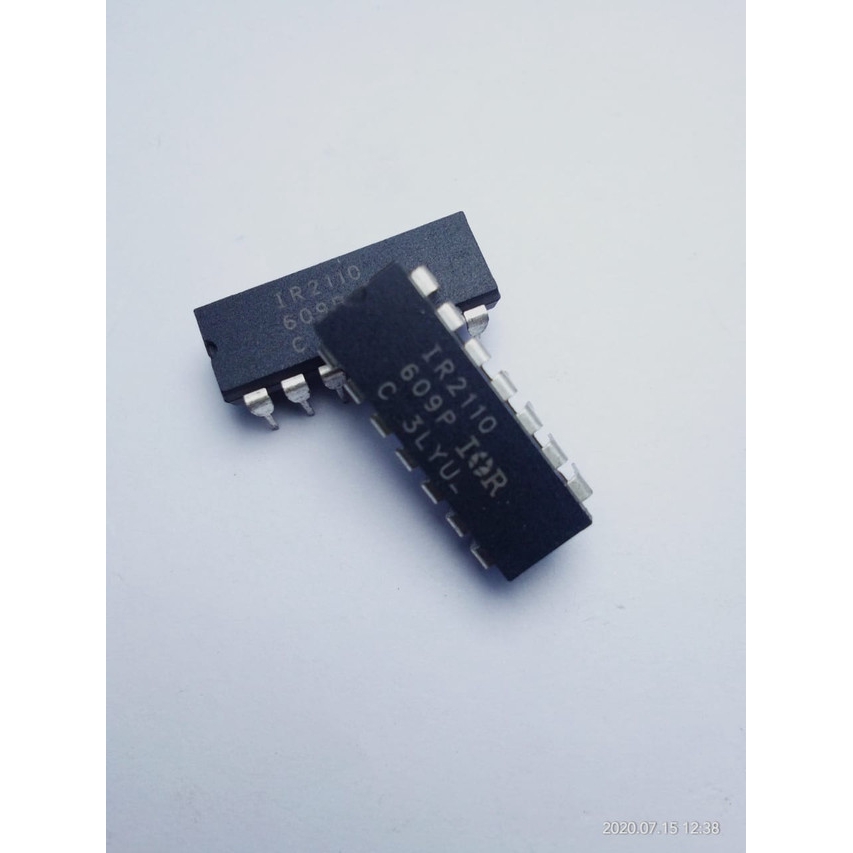

Gambar produk
