IC VERTIKAL LA 78141 LA78141 OEM

Elektronik > Elektronik Lainnya > IC VERTIKAL LA 78141 LA78141 OEM
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Global DieselLihat semua produk Elektronik oleh Global Diesel
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail IC VERTIKAL LA 78141 LA78141 OEM

IC VERTIKAL LA 78141 LA78141 OEM KUALITAS BAGUS, HARGA MURAH

Transistor TR LA 78141 kw
No seri akan berubah setiap produksi

Description The LA78141 is a vertical deflection output IC for high image quality TV and CRT displays that supports the use of a bus control systemsignal-processingIC.
The saw tooth wave form from the bus control system signal-processing IC can directly drive the deflection yoke (including the DC component).
Color TV vertical deflection system adjustment functions can be controlled over a bus system by connecting the LA78141N to a Sanyo LA768X series or LA769XX series bus control system signal-processing IC LA78141 Pinout 1.Invertin Input 2.VCC 3.
Pump Up Out 4.Gnd 5.Output Stage VCC 6.Non Multimedia Misc Vertical Output IC

Gambar produk

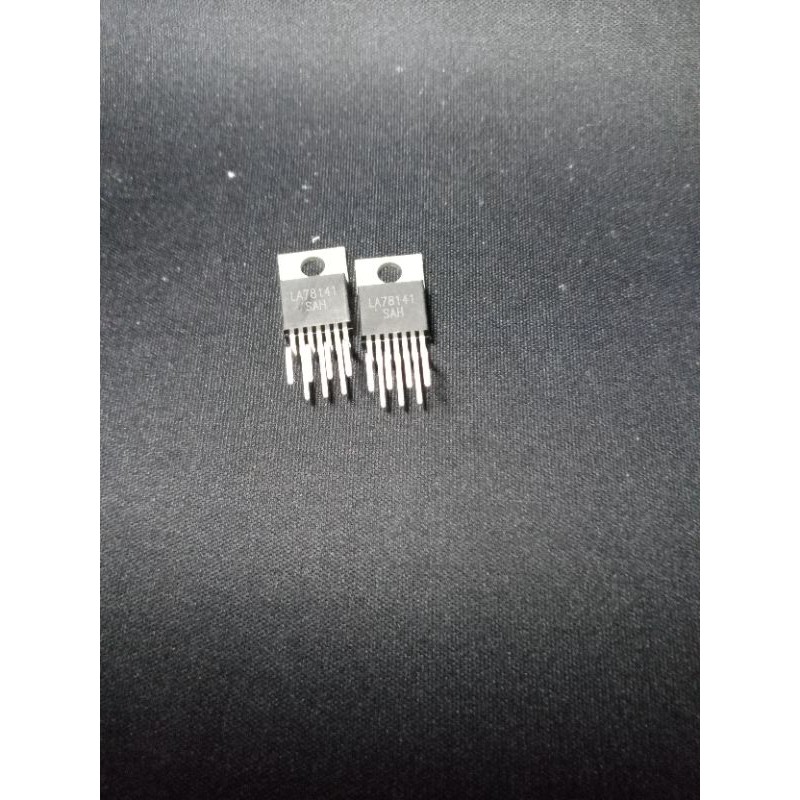

IC VERTIKAL LA 78141 LA78141 OEM
IC VERTIKAL LA 78141 LA78141 OEM
