Detail IC PWM CONTROLLER NCP1251 - 5A2 - 5AA - 5A POWER SUPPLY SWITCHING

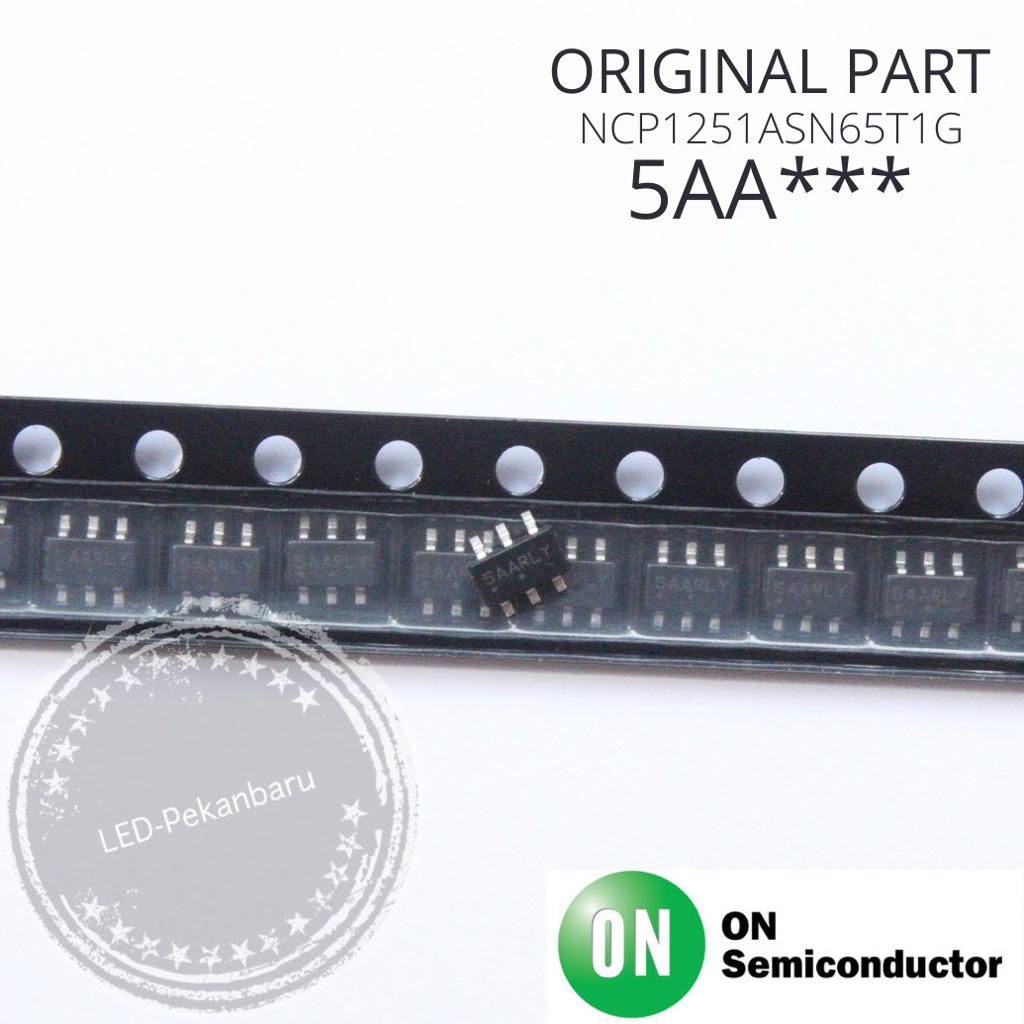

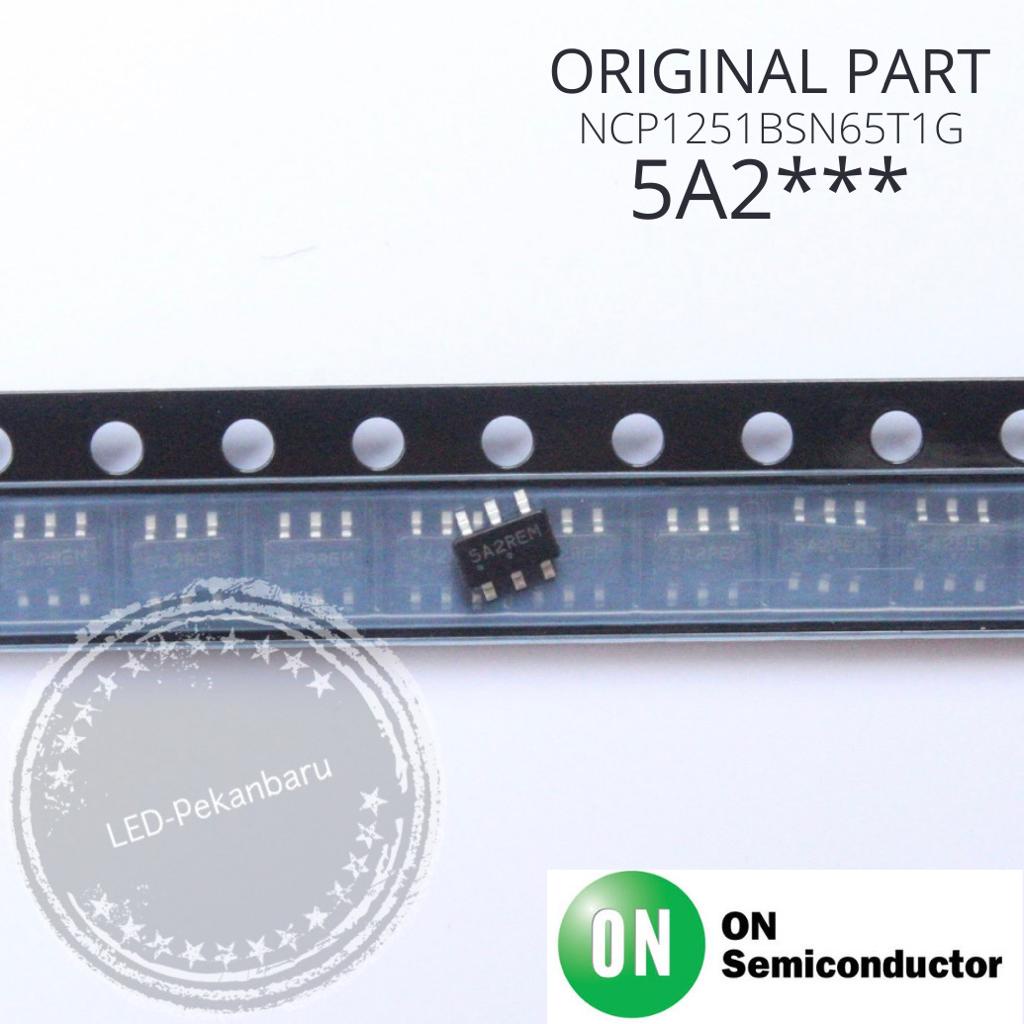

READY!!Ic power untuk regulator switcing / power supply lcd/led TV sharp dan merk lain nya yang menggunakan ic ncp1251 / 5aa / 5a2reo / 5a**
Description:
The NCP12510 is a highly integrated PWM controller capable of delivering a rugged and high performance offline power supply in a tiny TSOP6 package. With a voltage supply range up to 35 V, the controller hosts a jittered 65kHz or 100kHz switching circuitry operated in peak current mode control. When the power on the secondary side starts decreasing, the controller automatically folds back its switching frequency down to a minimum level of 26 kHz. As the power further goes down, the part enters skip cycle while limiting the peak current. The controller has integrated protections such as Over Power Protection (OPP), Over Voltage Protection (OVP) and short-circuit protections. NCP12510 is improved and pin compatible controller based on very popular flyback controller NCP1250.
Gambar produk
