IC PT2399 audio digital reverb and echo processor DIP16 PT 2399

Detail IC PT2399 audio digital reverb and echo processor DIP16 PT 2399

Harga 1pcs

Chip untuk manipulasi pengulangan suara dan gema (Echo) suara
detail keterangan versi data sheetnya adalah :
PT2399 audio digital reverb circuit DIP-16 DIP 16 IC AH50
DESCRIPTION:
PT2399 is an echo audio processor IC utilizing CMOS Technology which is equipped with ADC andDAC, high sampling frequency and an internal memory of 44K Digital processing is used to generate the delay time, it also features an internal VCO circuit in the system clock, thereby, making the frequency easily adjustable. PT2399 boast of very low distortion (THD 0 .5%) and very low noise (No<-90dBV), thus producing high quality audio output. The pin assignments and application circuit are optimized for easy PCB layout and cost saving advantage.
FEATURES:
Auto Reset Function
Low Noise, No<-90dBV Typical
Low Distortion, THD 0 .5% Typical
External Adjustable VCO

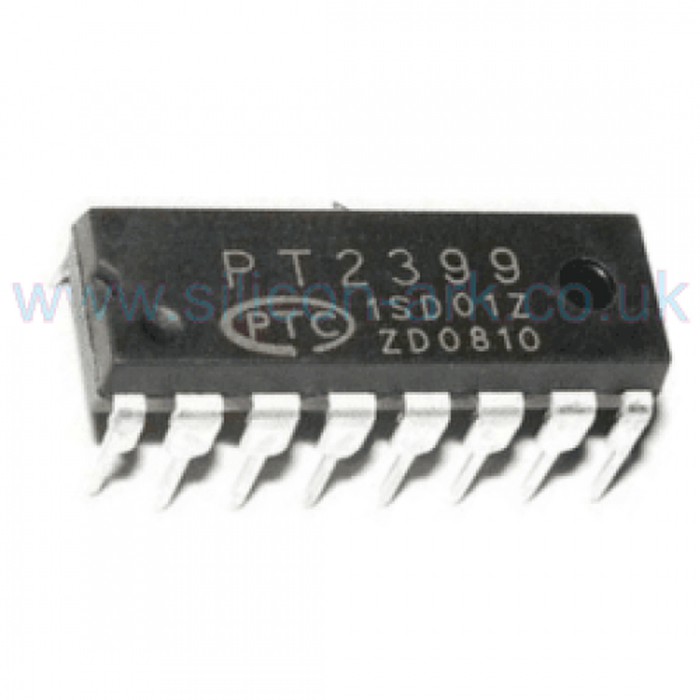

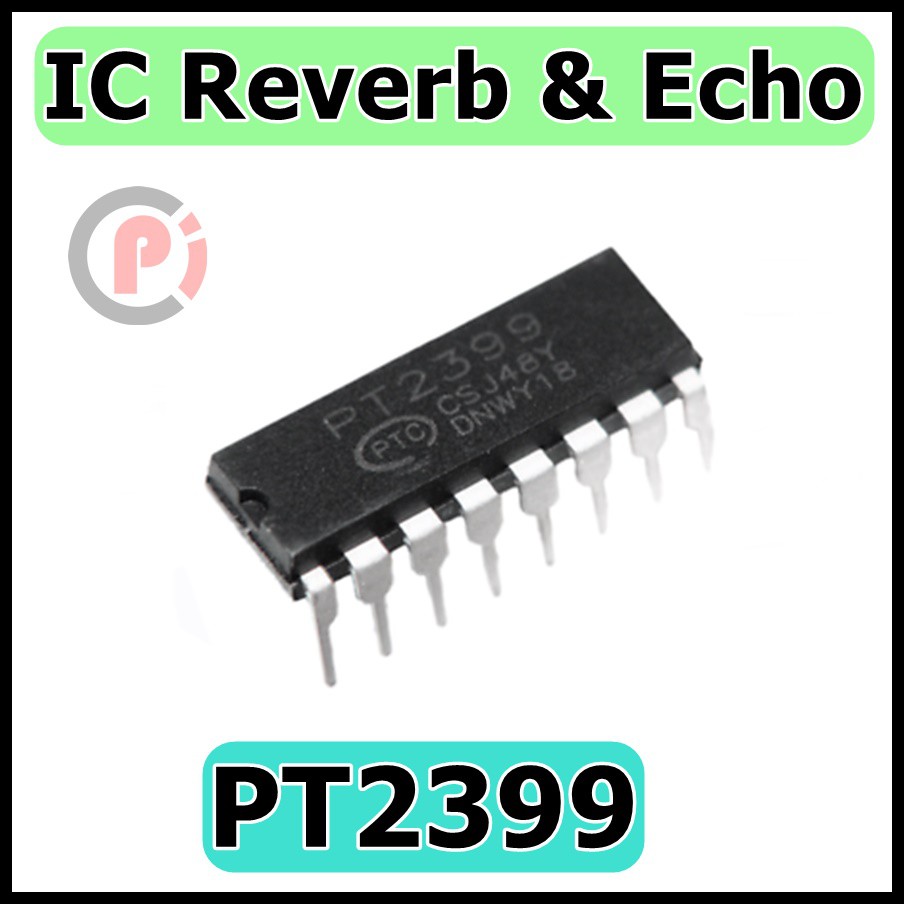

Gambar produk
