IC NE5532 ORIGINAL

Detail IC NE5532 ORIGINAL

NE5532P NE5532 NE5532A SA5532 SA5532A operational amplifiers BG66

Description:
The NE5532P,NE5532, NE5532A, SA5532, and SA5532A are high-performance operational amplifiers combining excellent dc and ac characteristics. They feature very low noise, high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, high slew rate, input-protection diodes, and output short-circuit protection. These operational amplifiers are compensated internally for unity-gain operation. These devices have specified maximum limits for equivalent input noise voltage.

Feature:
Equivalent Input Noise Voltage:5 nV/Hz Typ at 1 kHz
Unity-Gain Bandwidth: 10 MHz Typ
Common-Mode Rejection Ratio: 100 dB Typ
High DC Voltage Gain: 100 V/mV Typ
Peak-to-Peak Output Voltage Swing 26 V Typ With VCC = 15 V and RL = 600
High Slew Rate: 9 V/s Typ

Feature:
Supply Voltage - Max:30 V
Output Current per Channel:38 mA
Number of Channels:2 Channel
GBP - Gain Bandwidth Product:10 MHz
SR - Slew Rate: 9 V/us
CMRR - Common Mode Rejection Ratio:70 dB to 100 dB
Ib - Input Bias Current:800 nA
Vos - Input Offset Voltage:4 mV
Supply Voltage - Min:10 V
Operating Supply Current:4 mA

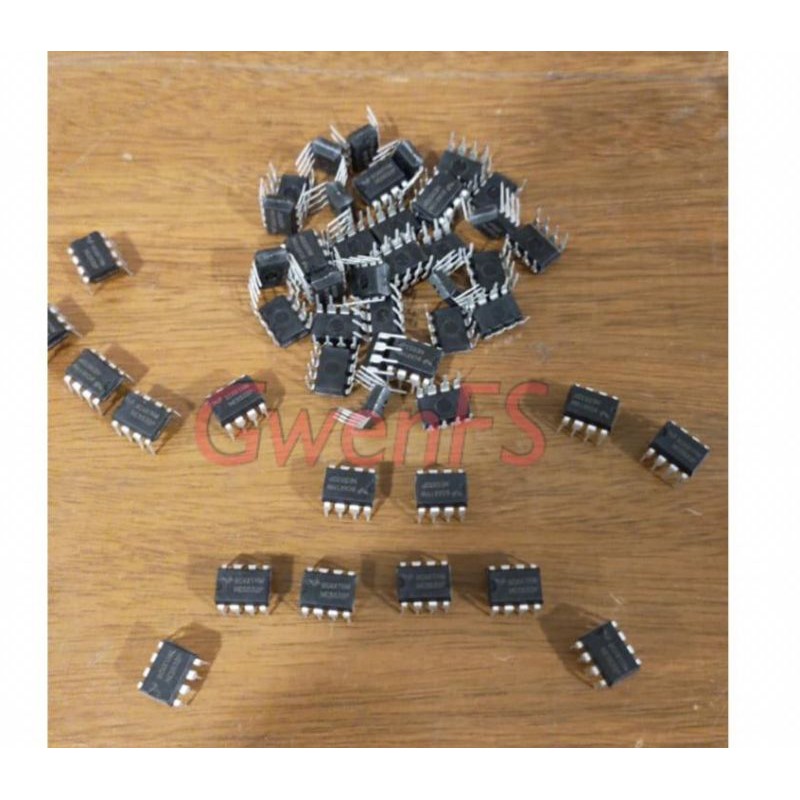

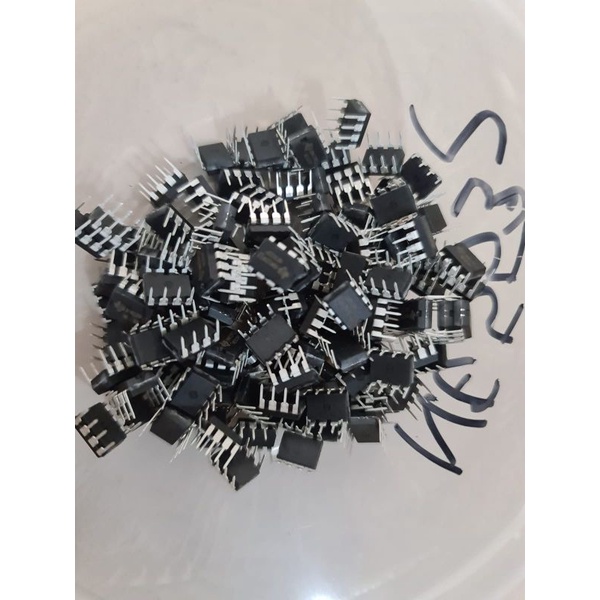

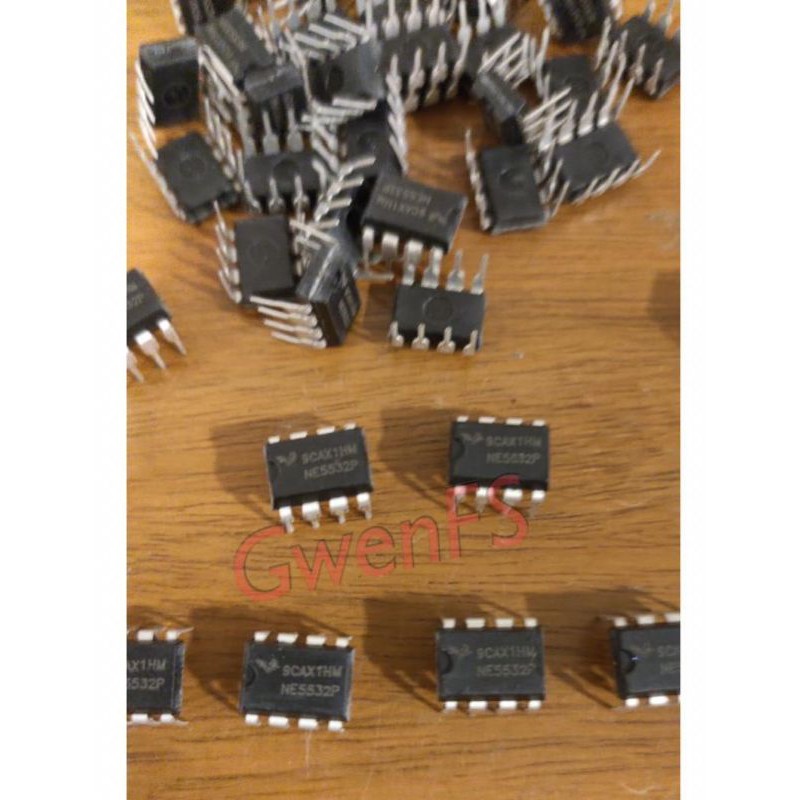

Gambar produk
