IC NE5532 DIP-8 Original Texas Instruments

Detail IC NE5532 DIP-8 Original Texas Instruments

Harga 1 pcs
Import langsung dari Texas Instruments

Product Category: Operational Amplifiers - Op Amps
RoHS: Details
Mounting Style: Through Hole
Package/Case: PDIP-8
Supply Voltage - Max: 30 V
Output Current per Channel: 38 mA
Number of Channels: 2 Channel
GBP - Gain Bandwidth Product: 10 MHz
SR - Slew Rate: 9 V/us
CMRR - Common Mode Rejection Ratio: 70 dB to 100 dB
Ib - Input Bias Current: 800 nA
Vos - Input Offset Voltage: 4 mV
Supply Voltage - Min: 10 V
Operating Supply Current: 4 mA
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Shutdown: No Shutdown
Series: NE5532
Packaging: Tube
Amplifier Type: Low Noise Amplifier
Height: 4.57 mm
Length: 9.81 mm
Product: Operational Amplifiers
Supply Type: Single, Dual
Technology: Bipolar
Width: 6.35 mm
Brand: Texas Instruments
Dual Supply Voltage: +/- 9 V, +/- 12 V
en - Input Voltage Noise Density: 8 nV/sqrt Hz at +/- 15 V
In - Input Noise Current Density: 2.7 pA/sqrt Hz
Maximum Dual Supply Voltage: +/- 15 V
Minimum Dual Supply Voltage: +/- 5 V
Operating Supply Voltage: 10 V to 30 V, +/- 5 V to +/- 15 V
Product Type: Op Amps - Operational Amplifiers
Factory Pack Quantity: 50
Subcategory: Amplifier ICs
Voltage Gain dB: 100 dB

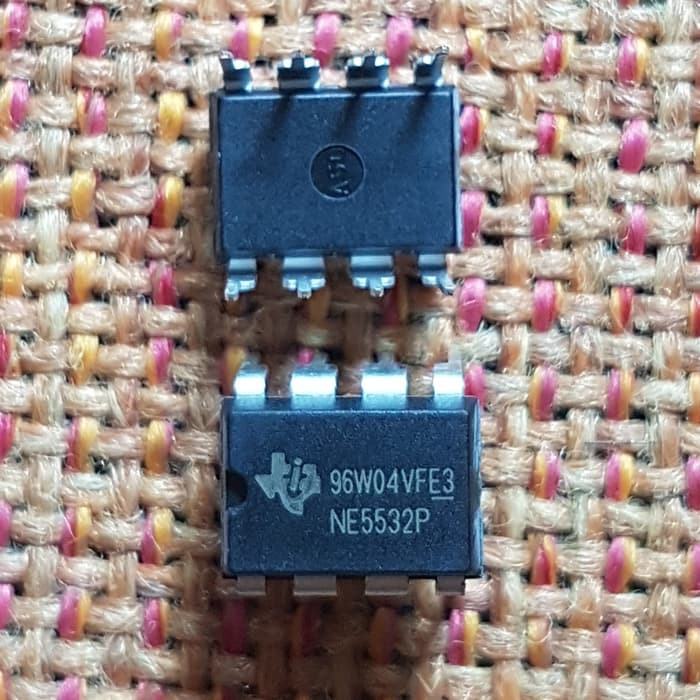

Gambar produk
