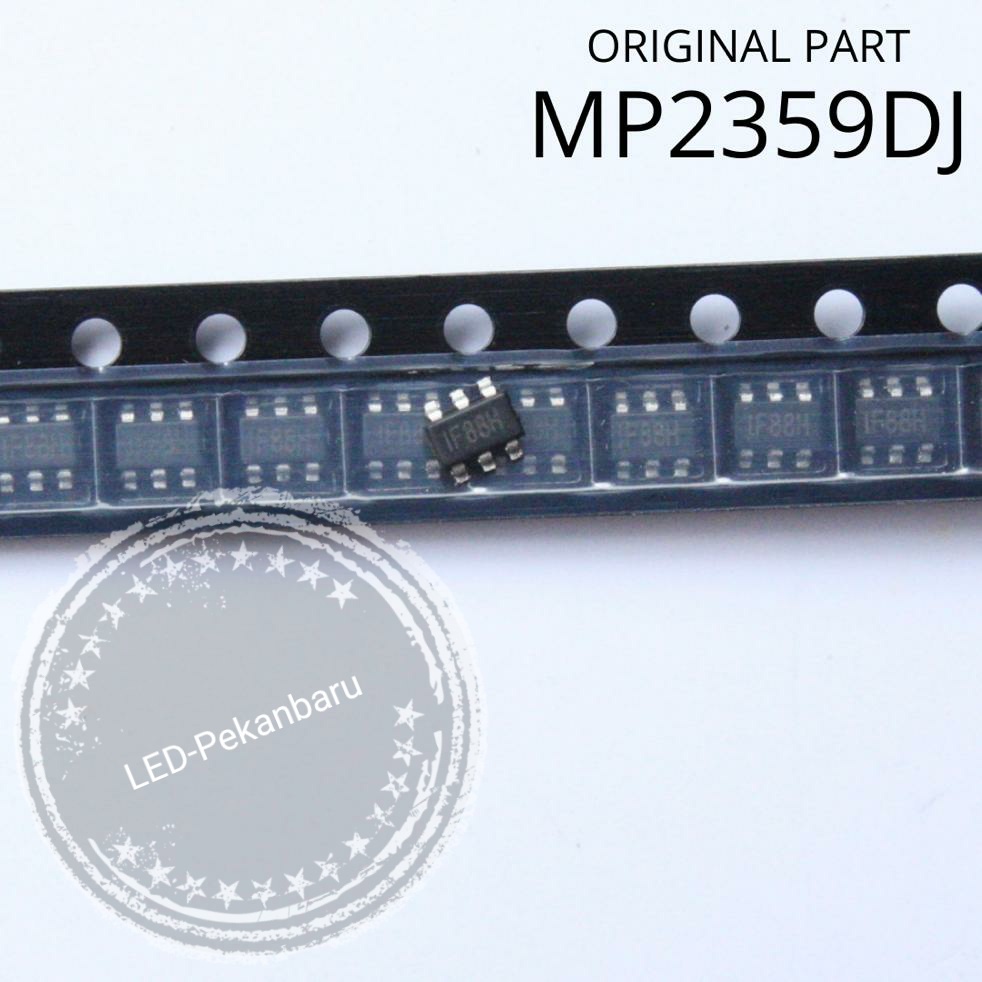

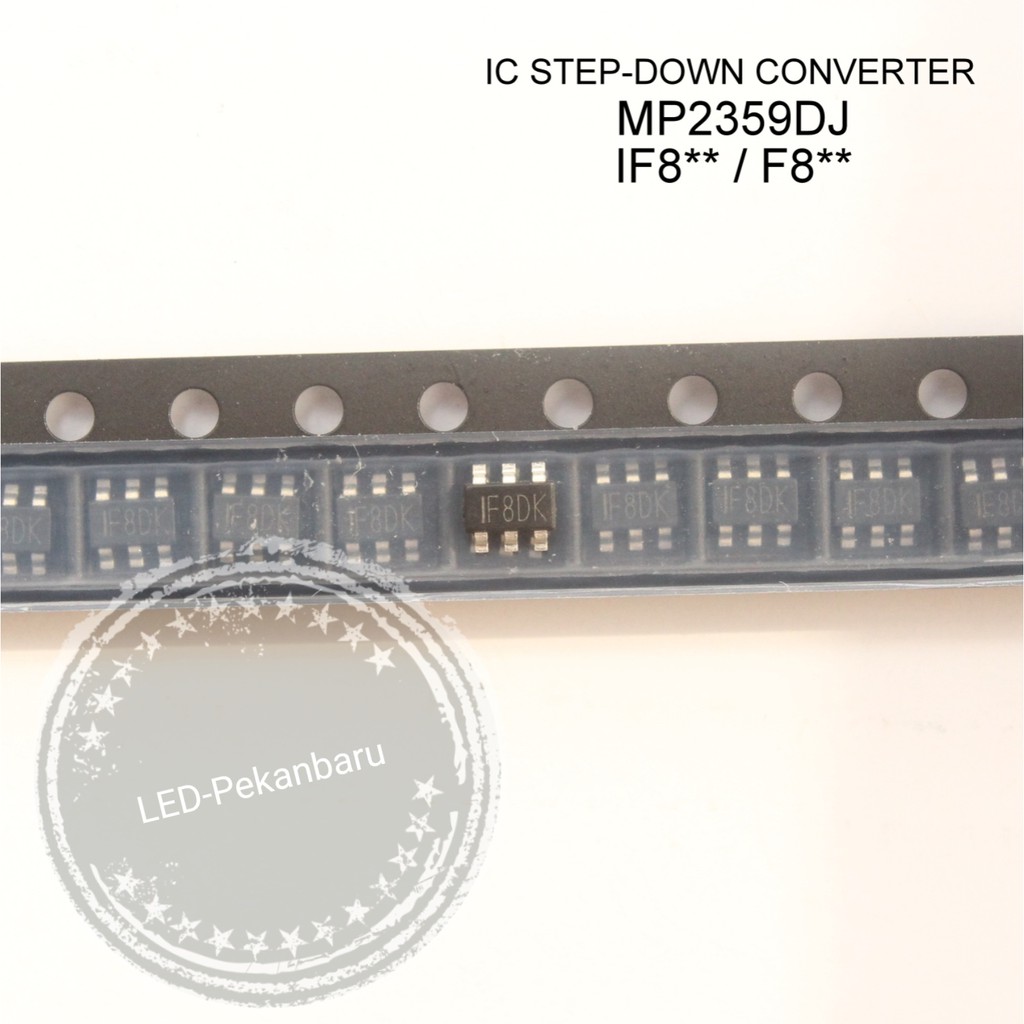

Detail IC MP2359DJ MP2359 STEP-DOWN CONVERTER IF8** / F8**
DESCRIPTION The MP2359 is a monolithic step-down switch mode converter with a built-in power MOSFET. It achieves 1.2A peak output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown. The MP2359 requires a minimum number of readily available standard external components. The MP2359 is available in TSOT23-6 and SOT23-6 packages.
FEATURES • 1.2A Peak Output Current • 0.35Ω Internal Power MOSFET Switch • Stable with Low ESR Output Ceramic Capacitors • Up to 92% Efficiency • 0.1µA Shutdown Mode • Fixed 1.4MHz Frequency • Thermal Shutdown • Cycle-by-Cycle Over Current Protection • Wide 4.5V to 24V Operating Input Range • Output Adjustable from 0.81V to 15V • Available in TSOT23-6 and SOT23-6 Packages APPLICATIONS • Distributed Power Systems • Battery Charger • Pre-Regulator for Linear Regulators • WLED Drivers
