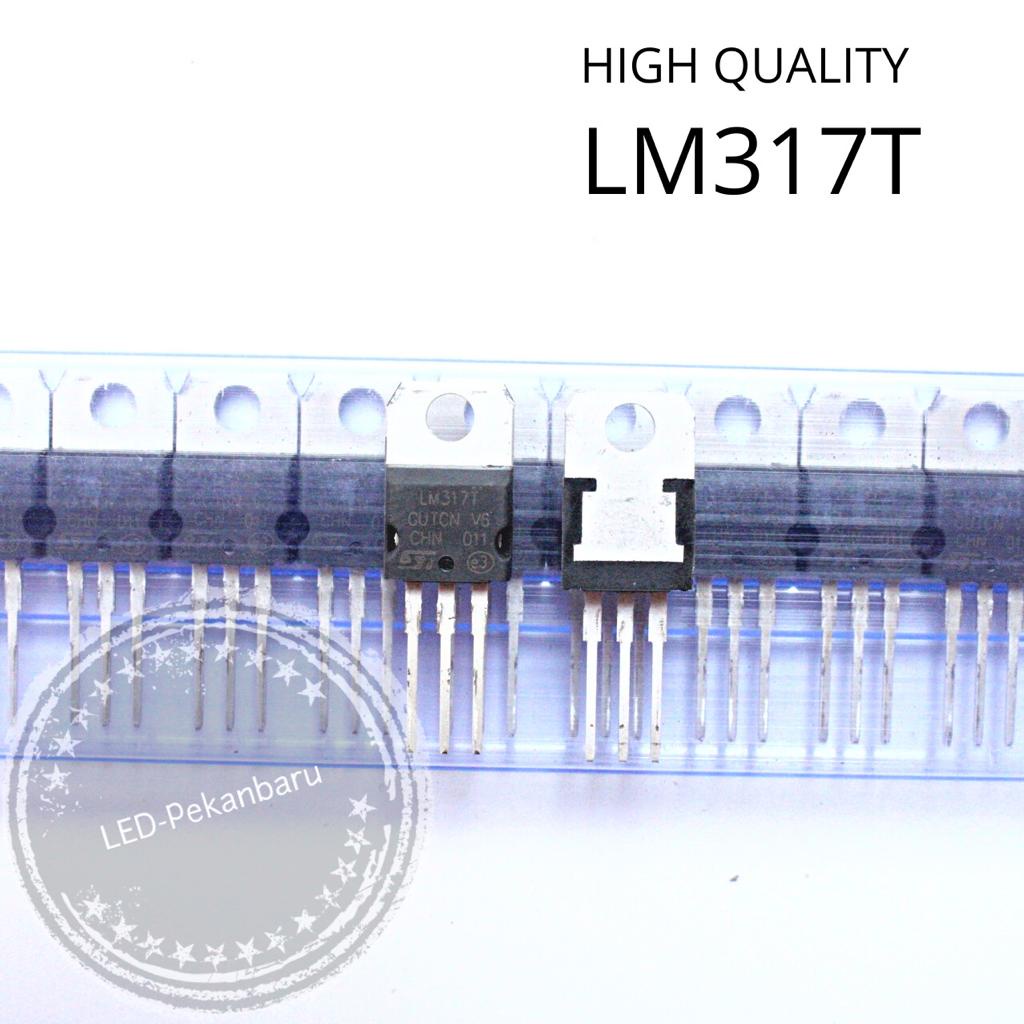

Detail IC LM317T LM317 T LM 317 ADJUSTABLE VOLTAGE REGULATOR TO220
Specifications Output Voltage 1.2 37 V Maximum Output Current 1.5A Package Type TO-220 Output Type Adjustable Mounting Type Through Hole Minimum Input Voltage 3 V Maximum Input Voltage 40 V Regulator Function Linear Pin Count 3 Minimum Operating Temperature 0 C Maximum Operating Temperature +125 C Number of Outputs 1 Polarity Positive Height 9.15mm Load Regulation 0.5 %, 0.5 %Vo, 25 mV%/Vo Dimensions 10.4 x 4.6 x 9.15mm Line Regulation 0.04 %/V Length 10.4mm Reference Voltage 1.25V Width 4.6mm
