IC L7812 7812 Transistor
Deskripsi singkat
Elektronik > Elektronik Lainnya > IC L7812 7812 Transistor
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail IC L7812 7812 Transistor
L7812 Series 1.5 A 12 V Three Terminal Positive Voltage Regulator - TO-220Feature:
Package/Case:TO-220
Output Voltage:12 V
Output Current:1.5 A
Output Type:Fixed
Input Voltage MAX:35 V
Maximum Operating Temperature:+ 125 C
Load Regulation:240 mV
Line Regulation:240 mV
Series:L7812
Brand:STMicroelectronics
Height:9.15 mm (Max)
Input Voltage MIN:14 V
Length:10.4 mm (Max)
Minimum Operating Temperature:0 C
Number of Outputs:1
Packaging:Tube
Polarity:Positive
PSRR / Ripple Rejection - Typ:55 dB
stok di tny dl y

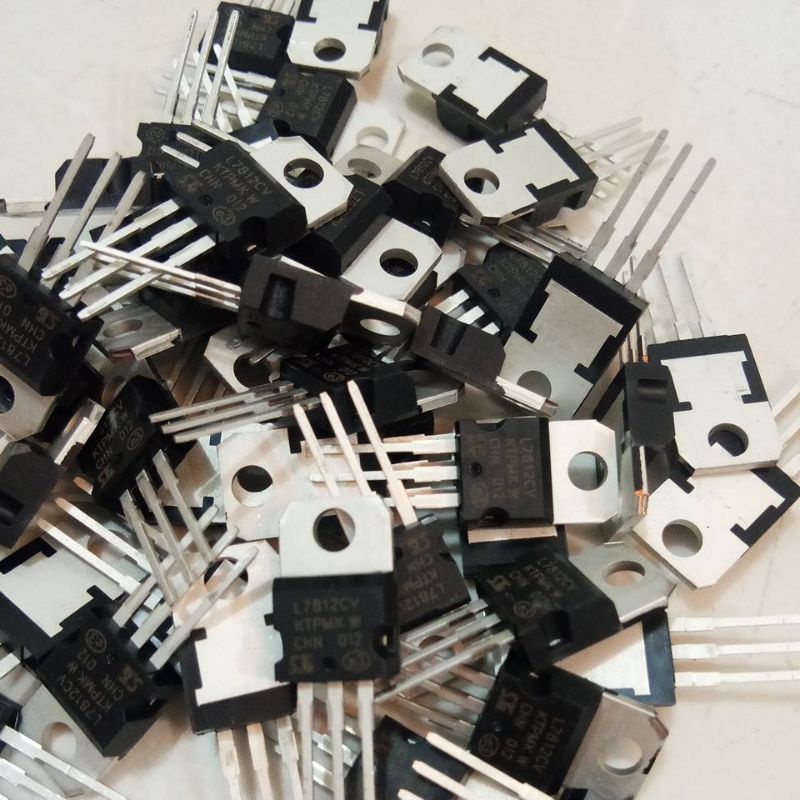

Gambar produk
