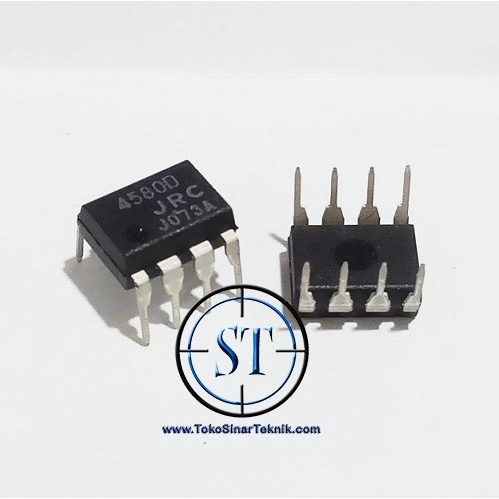

IC JRC4580 JRC4580D 4580 D JRC 4580 4580D DIP-8 OP-AMP Operational Amplifier IC Genuine

Detail IC JRC4580 JRC4580D 4580 D JRC 4580 4580D DIP-8 OP-AMP Operational Amplifier IC Genuine

MINIMAL PEMBELIAN 10,000 TIDAK TERMASUK ONGKIR YA
BISA DIGABUNG DENGAN PEMBELIAN BARANG LAINNYA
ORDER DI BAWAH 10,000 AKAN OTOMATIS KAMI TOLAK
MOHON MAKLUM DAN TERIMAKASIH

Harga untuk 1 Pcs,

IC JRC 4580 ORIGINAL JRC4580 ORI
IC dual op amp JRC 4580

Operating Voltage ±2V~±18V
Low Input Noise Voltage
0.8μVrms typ. (RIAA)
Wide GBW 15MHz typ.
Low Distortion 0.0005% typ.
Slew Rate 5V/μs typ.
Bipolar Technology
Package Outline
DIP8, SIP8, DMP8, SSOP8, MSOP8(VSP8)MEET JEDEC MO-187-DASOP8 JEDEC 150mil

PARAMETER SYMBOL RATINGS UNIT
Supply Voltage V+/V- ±18 V
Differential Input Voltage V(ID) ±30 V
Input Voltage V(IC) ±15(note1) V
Power Dissipation P(D) mW
( DIP8, SIP8 ) 800
( DMP8, SOP8 ) 300
( SSOP8 ) 250
MSOP8(VSP8) : 400 (Note2)
Operating Temperature Range Topr -40~+85 ̊C
Storage Temperature Range Tstg -40~+125 ̊C
( note1 ) For supply voltage less than ±15V,the absolute
maximum input voltage is equal to the supply voltage.
(Note2) On the PCB "EIA/JEDEC (114.3×76.2×1.57mm, 2 layers, FR-4)"

Gambar produk
