IC JRC2068DD NJM2068DD DIP-8 Original JRC

Detail IC JRC2068DD NJM2068DD DIP-8 Original JRC

Harga per pcs .

Manufacturer: Nisshinbo Micro Devices Sebelumnya JRC
Product Category: Operational Amplifiers - Op Amps
RoHS: Details
Mounting Style: Through Hole
Package/Case: DIP-8
Number of Channels: 2 Channel
Supply Voltage - Max: +/- 18 V
GBP - Gain Bandwidth Product: 27 MHz
Output Current per Channel: -
SR - Slew Rate: 6 V/us
Vos - Input Offset Voltage: 3 mV
Supply Voltage - Min: +/- 4 V
Minimum Operating Temperature: - 20 C
Maximum Operating Temperature: + 75 C
Ib - Input Bias Current: 1 uA
Operating Supply Current: 8 mA
Shutdown: No Shutdown
CMRR - Common Mode Rejection Ratio: 80 dB
en - Input Voltage Noise Density: -
Series: NJM2068
Packaging: Tube
Amplifier Type: Low Noise Amplifier
Brand: Nisshinbo
Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
Height: 3.4 mm
Length: 8.8 mm
Maximum Dual Supply Voltage: +/- 18 V
Minimum Dual Supply Voltage: +/- 4 V
Operating Supply Voltage: +/- 4 V to +/- 18 V
Pd - Power Dissipation: 500 mW (1/2 W)
Product: Operational Amplifiers
Product Type: Op Amps - Operational Amplifiers

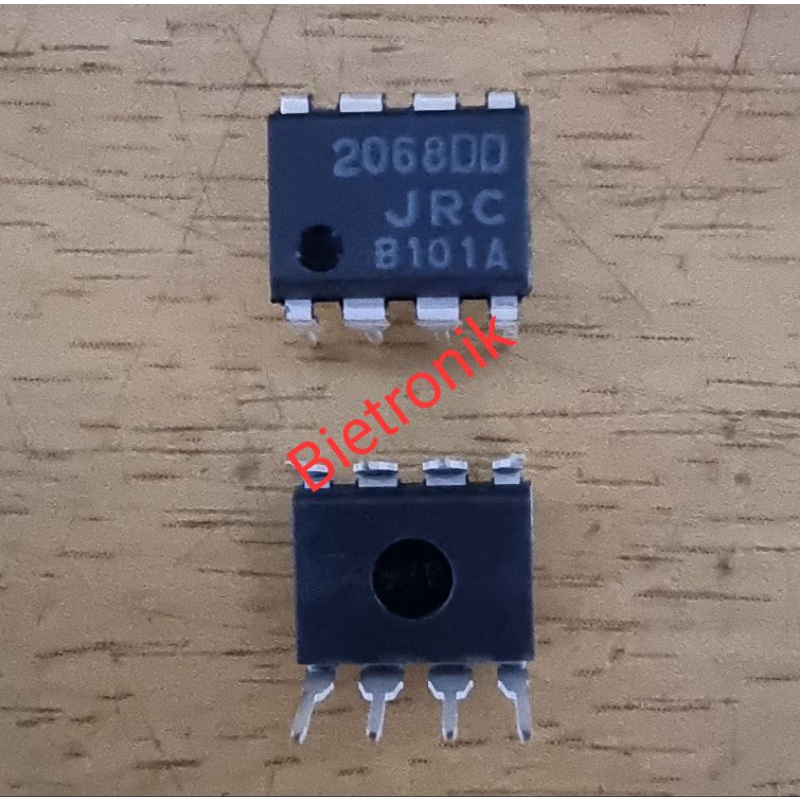

Gambar produk
