IC BTA16 600B To220 BTA16-600

Elektronik > Elektronik Lainnya > IC BTA16 600B To220 BTA16-600
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:SanseinshopLihat semua produk Elektronik oleh Sanseinshop
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail IC BTA16 600B To220 BTA16-600

Ready stok gan
BTA16-600B BTA16-600BWRG BTA16-600BRG TRIAC 16A 600V TO220 BD96

Features
Medium current Triac
Low thermal resistance with clip bonding
Low thermal resistance insulation ceramic for insulated BTA
High commutation (4Q) or very high commutation (3Q) capability
BTA series UL1557 certified (File ref: 81734)
RoHS ( 2002/95/EC) compliant
Insulated tab (BTA series, rated at 2500 VRMS)

SPEK:
Non Repetitive On-State Current:168 A
Current Rating:16 A
Rated Repetitive Off-State Voltage VDRM:600 V
Off-State Leakage Current @ VDRM IDRM:5 uA
On-State Voltage:1.55 V
Holding Current Ih Max: 50 mA
Gate Trigger Voltage - Vgt:1.3 V
Gate Trigger Current - Igt:100 mA


Applications
Snubberless versions (BTA/BTB...W and T1635) especially recommended for use on inductive loads, because of their high commutation performances
On/off or phase angle function in applications uch as static relays, light dimmers and
appliance motor speed controllers

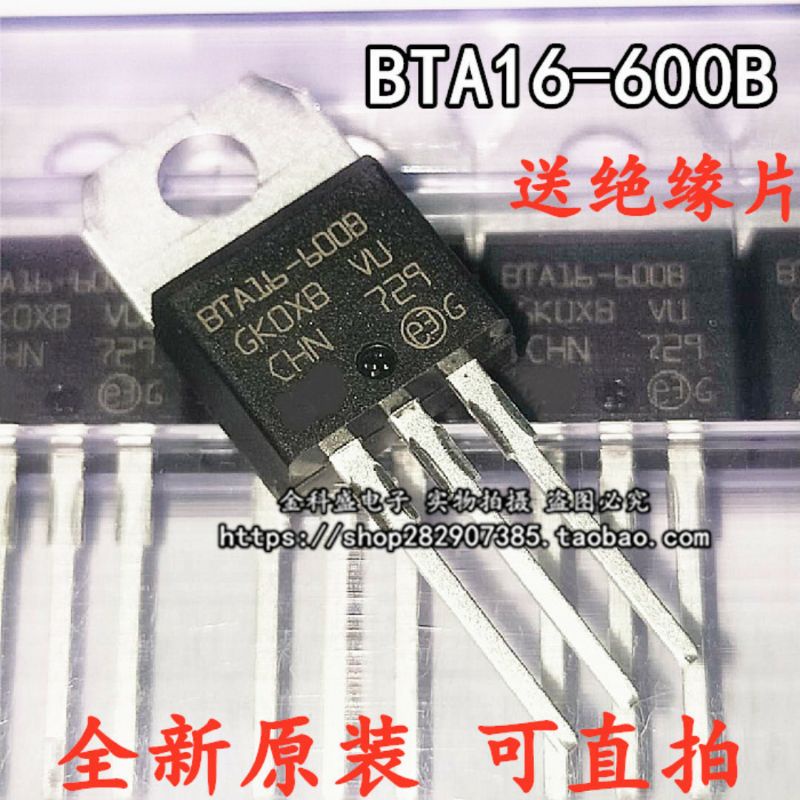

Gambar produk

IC BTA16 600B To220 BTA16-600
IC BTA16 600B To220 BTA16-600
