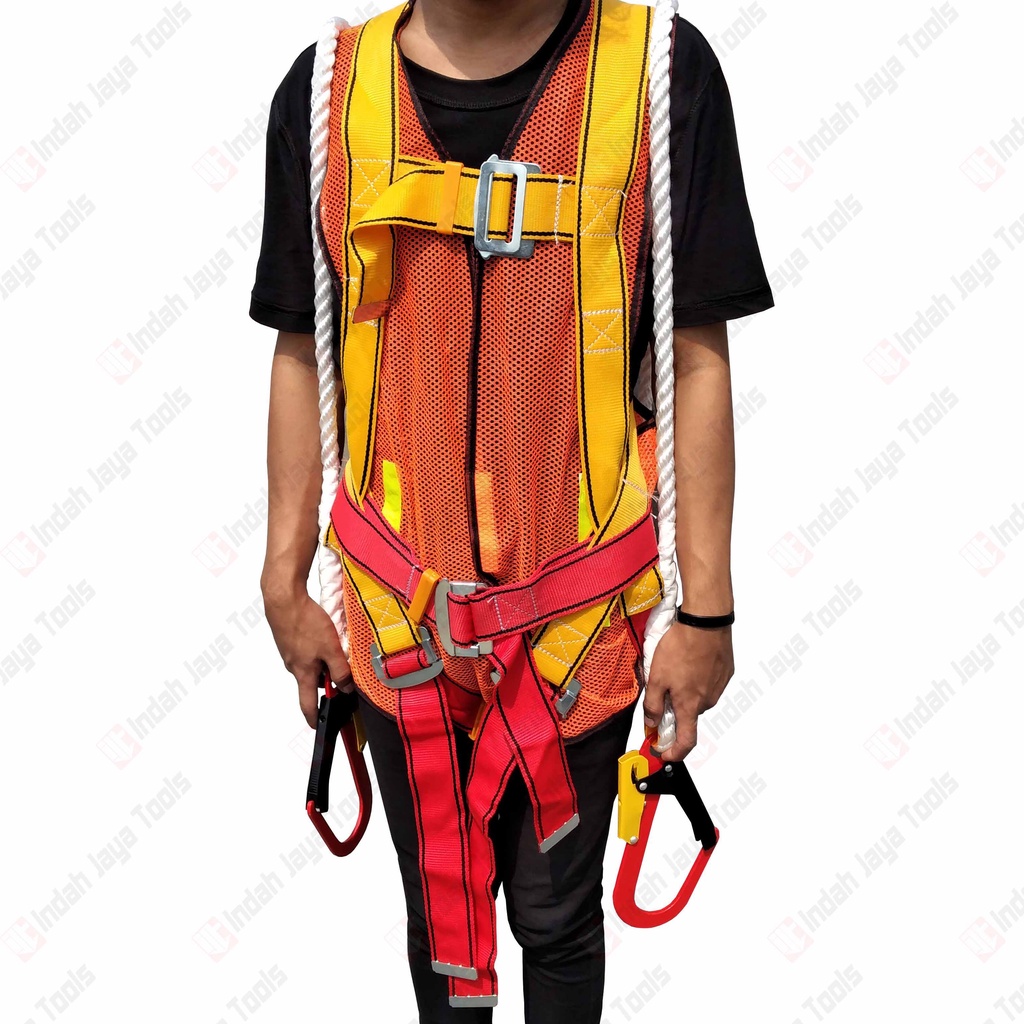

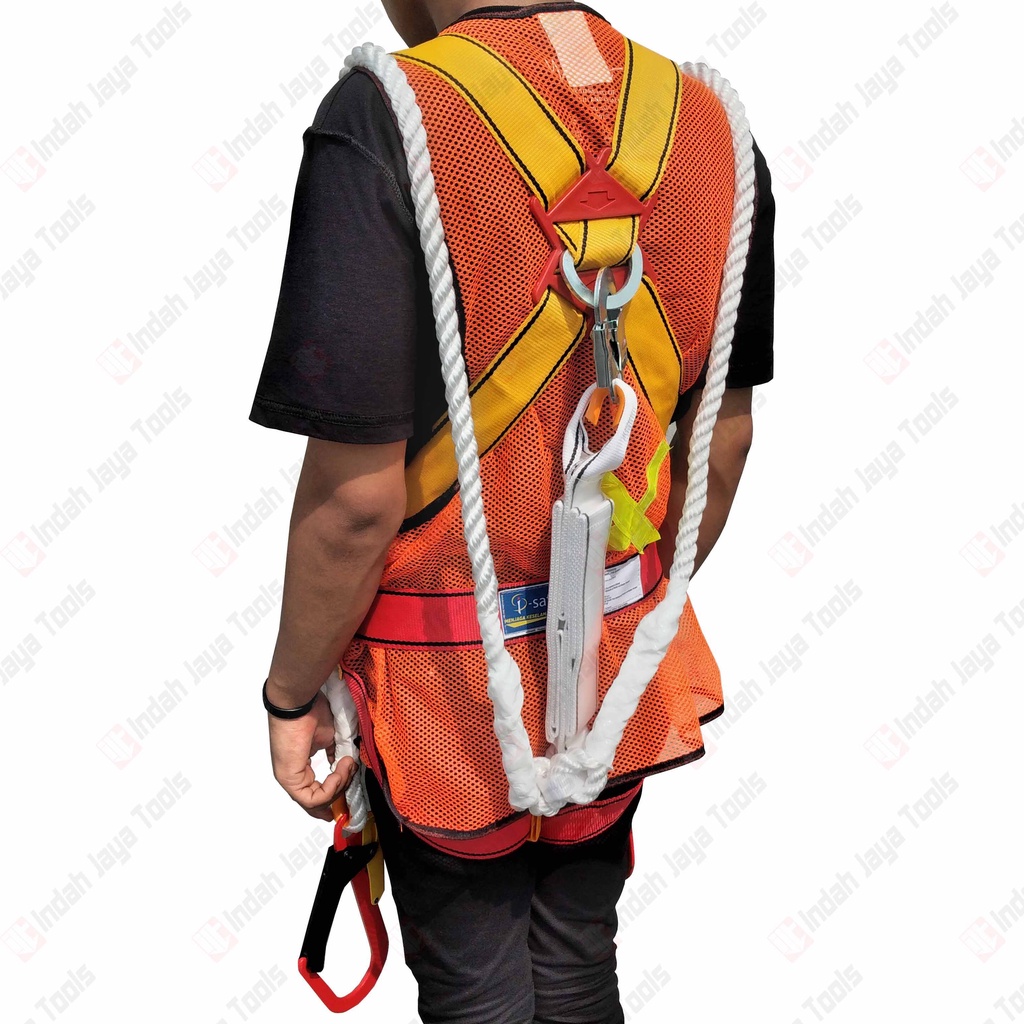

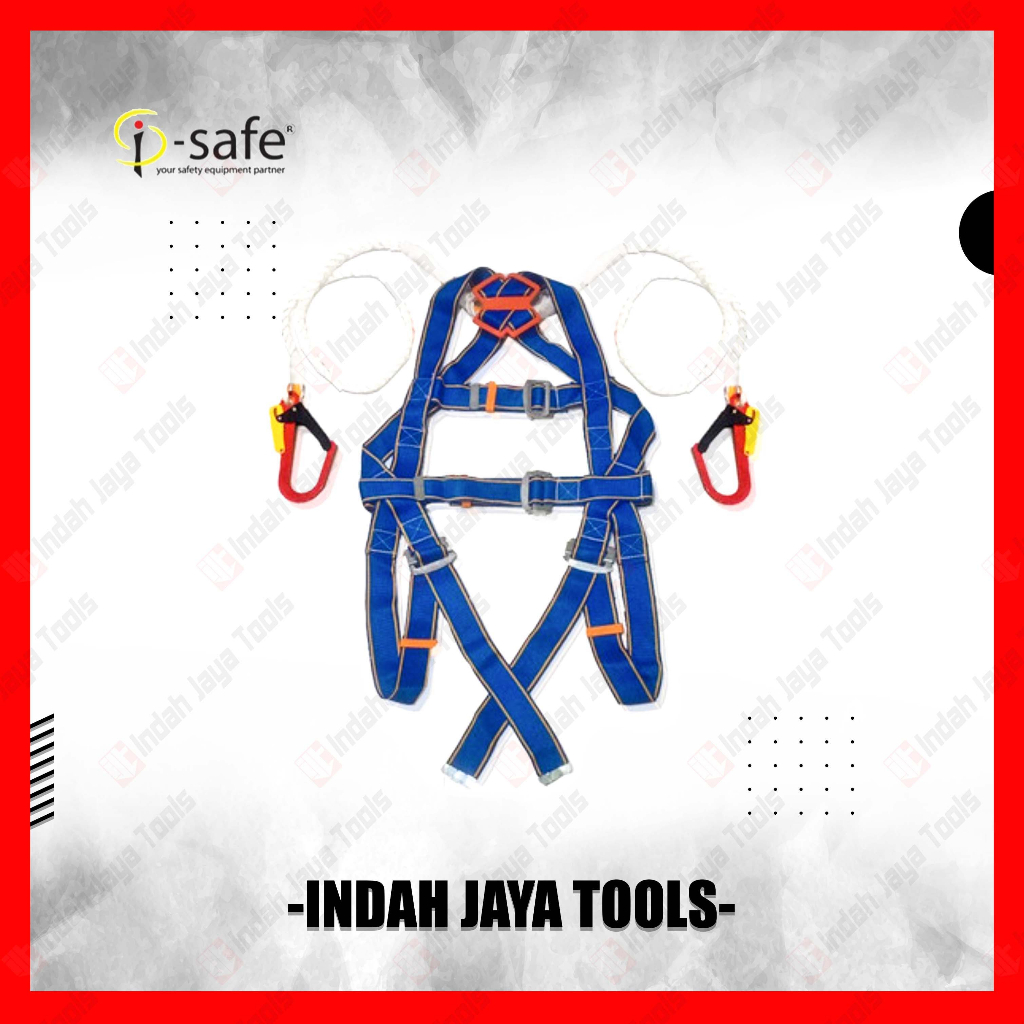

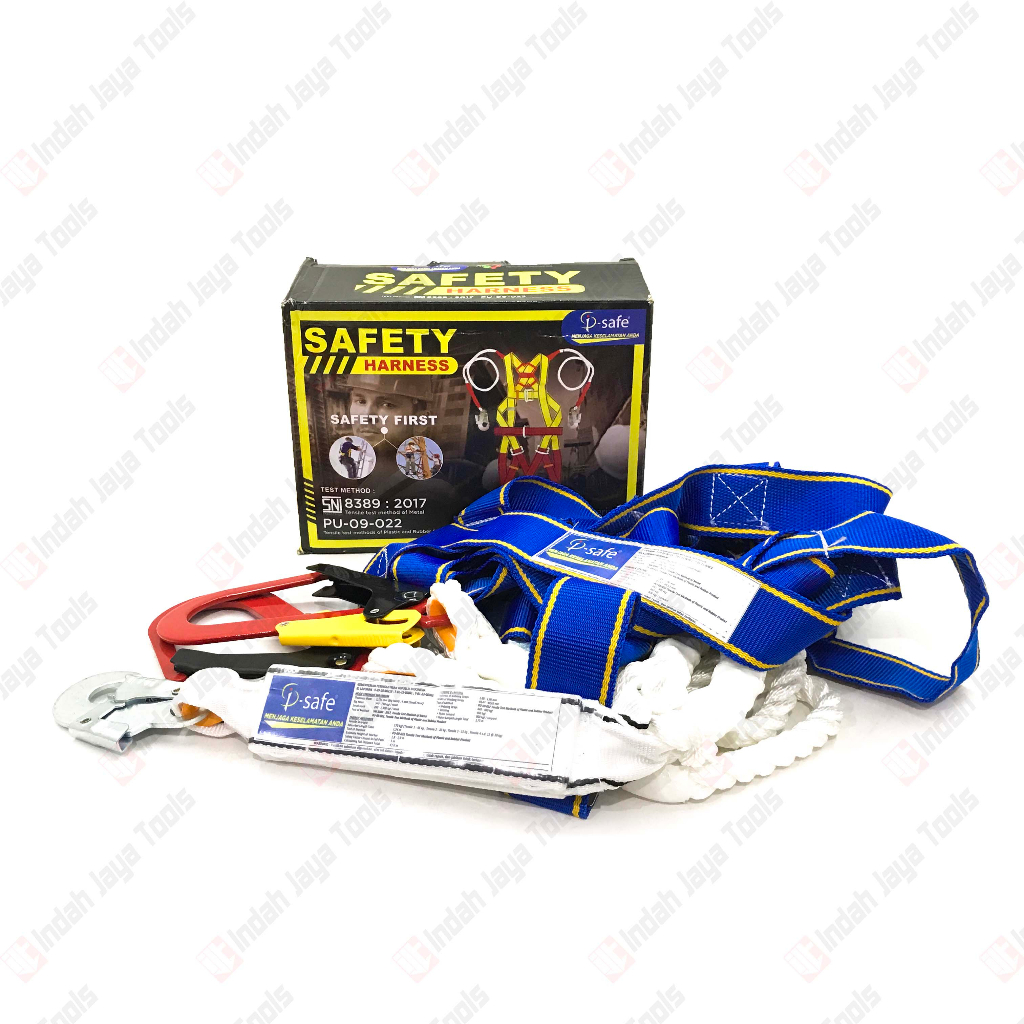

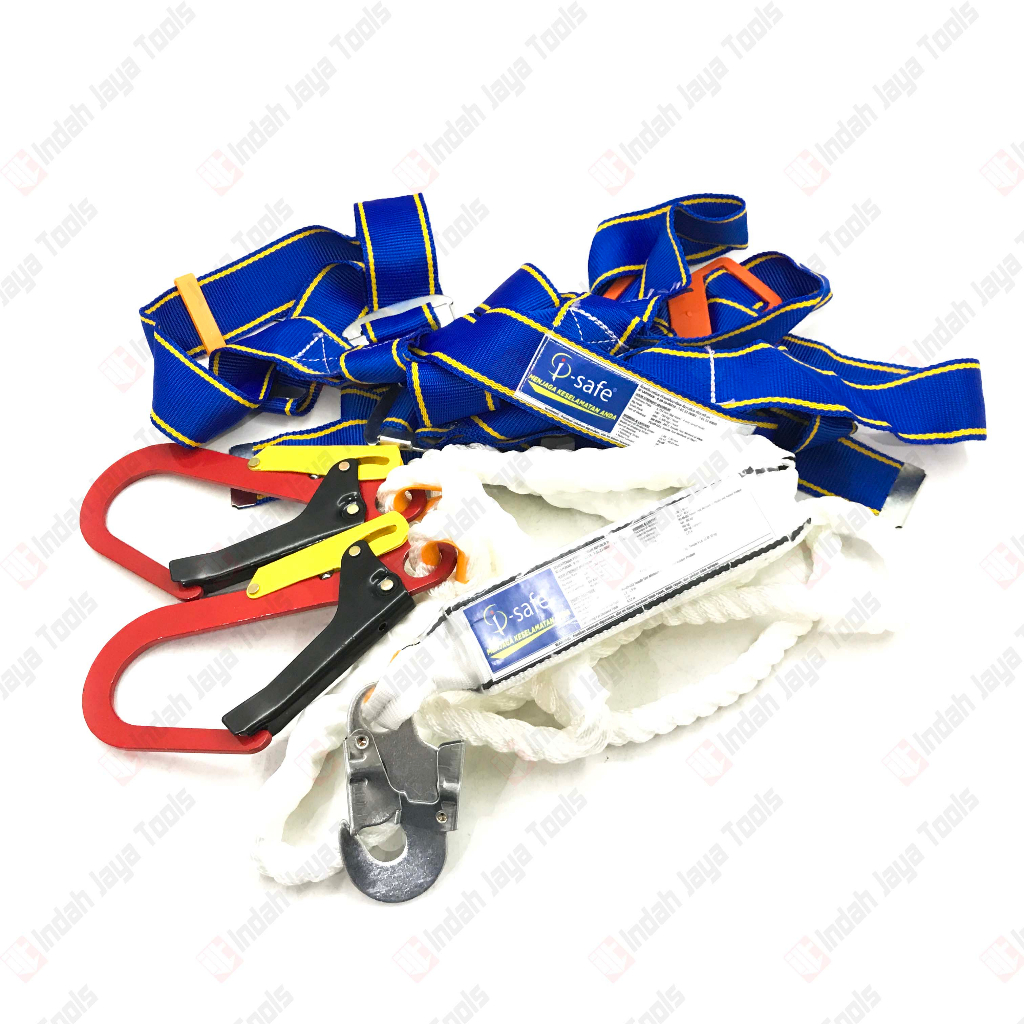

I-SAFE ABSORBER Full Body Harness SNI DOUBLE HOOK Safety Belt Sabuk

Detail I-SAFE ABSORBER Full Body Harness SNI DOUBLE HOOK Safety Belt Sabuk

DOUBLE BIG HOOK + ABSORBER

KEMENTERIAN PERINDUSTRIAN REPUBLIK INDONESIA
ID LAPORAN : 9-29-20-00219 ; 7-01-22-00001 ; 7-01-22-00002

HOOK STRENGHT MAXIMUM :
Thickness Plate : 5,754 mm (Big Hook) ;4mm (Small Hook)
Big Hook : 540 - 750 kgf/Hook
Small Hook : 890 - 1300 kgf/Hook
Test of Method : SNI 8389 : 2017, Tensile Test Method of Metal PU-09-022, Tensile Test Methods of Plastic and Rubber Product

ENERGY ABSORBER :
Tensile Strenght : 170 kgf (Tensile 1-45 kg) ; Tensile 2-20 kg ; Tensile 4 s.d 12 @ 10kg)
Absorber Length Total : 1,54 m
Test of Method : PU-09-022 Tensile Test Methods of Plastic and Rubber Product
Estimate Height of Worker : 1,8 - 1,9 m
Safety Factor Closest in Fall Path : 1 m
Calculating Fall Distance Total : 6,52 m

WEBBING & LANYARD :
Thickness of Webbing Straps : 1,88 - 1,90 mm
Width of Webbing Straps : 49,47 - 49,63 mm
Test of Method : PU-09-022 Tensile Test Methods of Plastic and Rubber Product
- Webbing Straps : 440 - 480 kgf
- Stitching : 460 kgf
- Nylon Lanyard : 800 kgf / Lanyard

WARNING : PASTIKAN SEBELUM DIGUNAKAN, ALAT INI DALAM KEADAAN TIDAK RUSAK, TIDAK RAPUH, DAN JAHITAN TIDAK TERLEPAS.

Gambar produk
