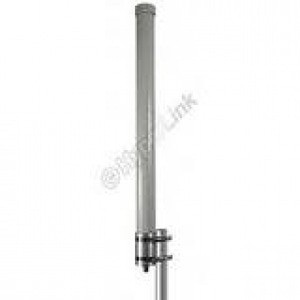

Detail Hyperlink HG5812U-PRO Antena Omni
Frequency : 5725 5850 MHz
Gain : 12 dBi
Polarization : Vertical
Downtilt : 0
Vertical Beam Width : 6
Horizontal Beam Width : 360
Impedance : 50 Ohm
Max. Input Power : 150 Watts
VSWR : < 1.5 : 1 avg.
Lightning Protection : DC Short
Weight : 1.5 lbs (0.7 kg)
Length : 29.4 in. (0.7 m)
Base Diameter : 2.28 in. (57.9 mm)
Radome Diameter : 2.04 in. (51.8 mm)
Radome Material : Fiberglass
Mounting : 1.4 in. (35 mm) to 2.0 in. (50 mm) dia mast
Rated wind Velocity : 137 MPH (220Km/h)
Connector : Integral N-fema
