HX711 LOAD CELL AMPLIFIER MODULE

Detail HX711 LOAD CELL AMPLIFIER MODULE

Hi #RekanEasyWare ...
EasyWare Part#: EP001294

This module uses 24 high-precision A / D converter. This chip is designed for high-precision electronic scale and design, has two analog input channels, programmable gain of 128 integrated amplifier. The input circuit can be configured to provide a bridge voltage electrical bridge (such as pressure, load) sensor model is an ideal high-precision, low-cost sampling front-end module.

Spesifications :
* Two selectable differential input channels
* On-chip power supply regulator for load-cell and ADC analog power supply
* On-chip oscillator requiring no external component with optional external crystal
* On-chip power-on-reset
* Data Accuracy: 24 bit (24 bit analog-to-digital converter chip)
* Refresh Frequency: 10/80 Hz
* Operation supply voltage range: 4.8 ~ 5.5V
* Operation supply Current: 1.6mA
* Operation temperature range: -20 ~ +85
* Demension: Approx. 36mm x 21mm x 4mm / 1.42" x 0.83" x 0.16"

Package :
* 1pcs HX711 BALANCE MODULE
* 10pin MALE HEADER LURUS

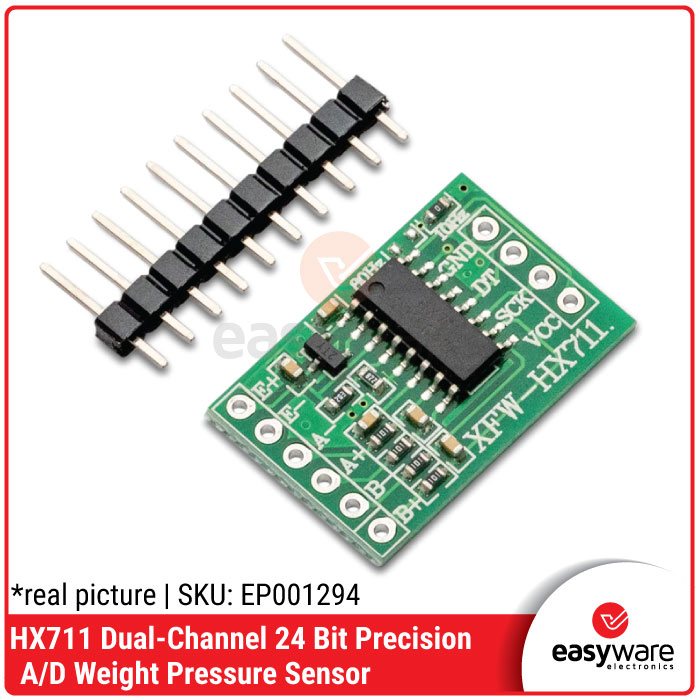

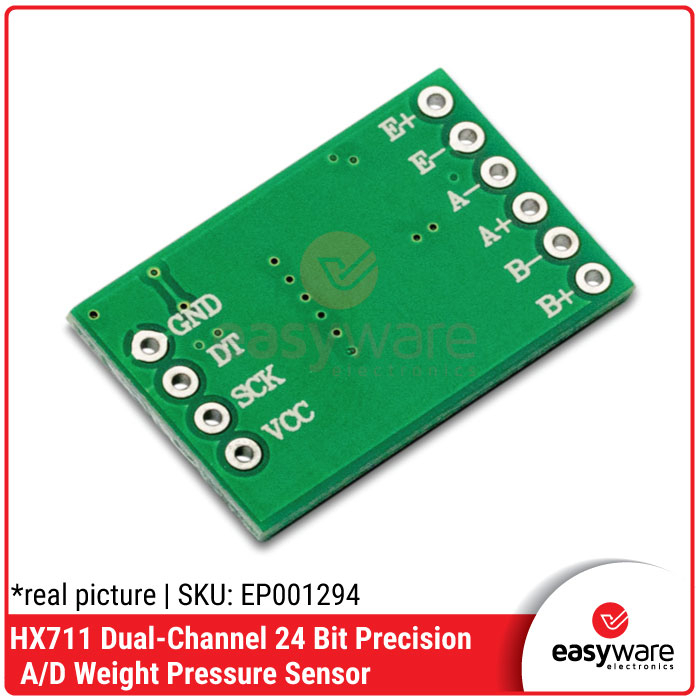

Gambar produk
