HX1838 INFRARED WIRELESS ROBOT REMOTE CONTROL REMOT AND RECEIVER

Detail HX1838 INFRARED WIRELESS ROBOT REMOTE CONTROL REMOT AND RECEIVER

NET-0017
========

Deskripsi:
=======================
Remote control yang sangat mudah digunakan untuk mengontrol device agan secara wireless. Memanfaatkan infrared, remote akan memancarkan sinyal 38kHz yang kemudian akan ditangkap oleh receiver HX1838. Remote nya sendiri mempunyai 17 tombol yang bisa agan atur sendiri fungsi-fungsinya di arduino atau raspberry. Tanpa halangan, receiver bisa menerima sinyal dari remote sejauh 8 meter. Modul ini bisa bekerja pada level tegangan 3.3V atau 5v. Aplikasinya buanyak, bisa dipake mengontrol alat/device sesuai imajinasi agan :D

Berikut fitur dan spesifikasinya :

Fitur :
=======================
- Sensor uses HX1838, high sensitivity.
- Operating voltage 3.3v - 5V.
- Output form: Digital output.
- VCC: 3.3V-5V external voltage (can be directly connected to the 5v microcontroller and 3.3v microcontroller).
- GND: external GND.
- IN: external microcontroller I/O port, I/O port has been designed 10K pull-up resistor.

Spesifikasi :
=======================
- Battery:CR2025 Button batteries (supplied)
- Transmission Distance: up to 8m (depending on the surrounding environment, sensitivity of receiver etc)
- Effective Angle: 60°
- Static Current: 3~5uA,
- Dynamic Current: 3~5mA
- Supply Voltage 2.7V - 5.5V
- Remote size: 8.5 x 4 x 0.65cm (3.3 x 1.6 x 0.25inch) (L x W x H)

Aplikasi :
=======================
- Wreless Control device

Paket :
=======================
1. 1 X IR Remote Control
2. 1 X HX1838 remote module.
3. 1 X 1838 Universal Receiving Head.
4. 1 X 3Pin 20cm Dupont cable.

UNTUK HARGA GROSIR CHAT US ^^

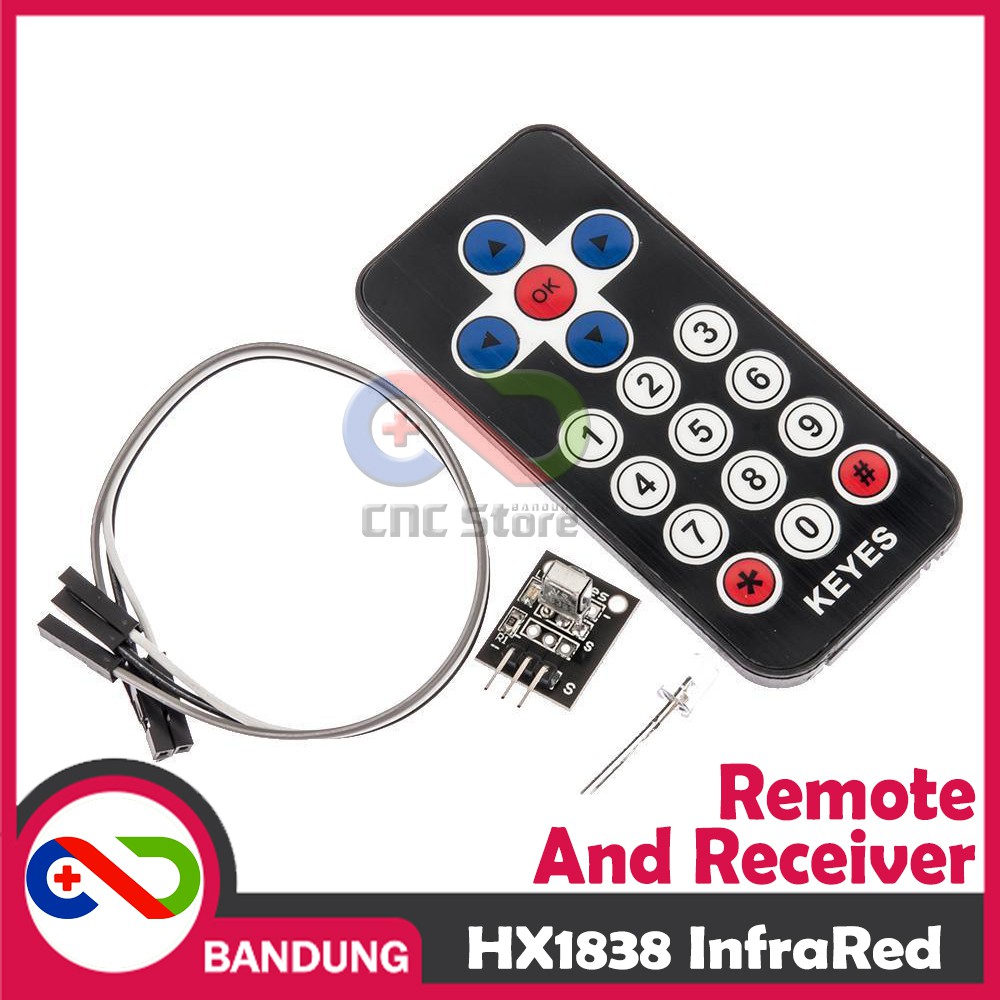

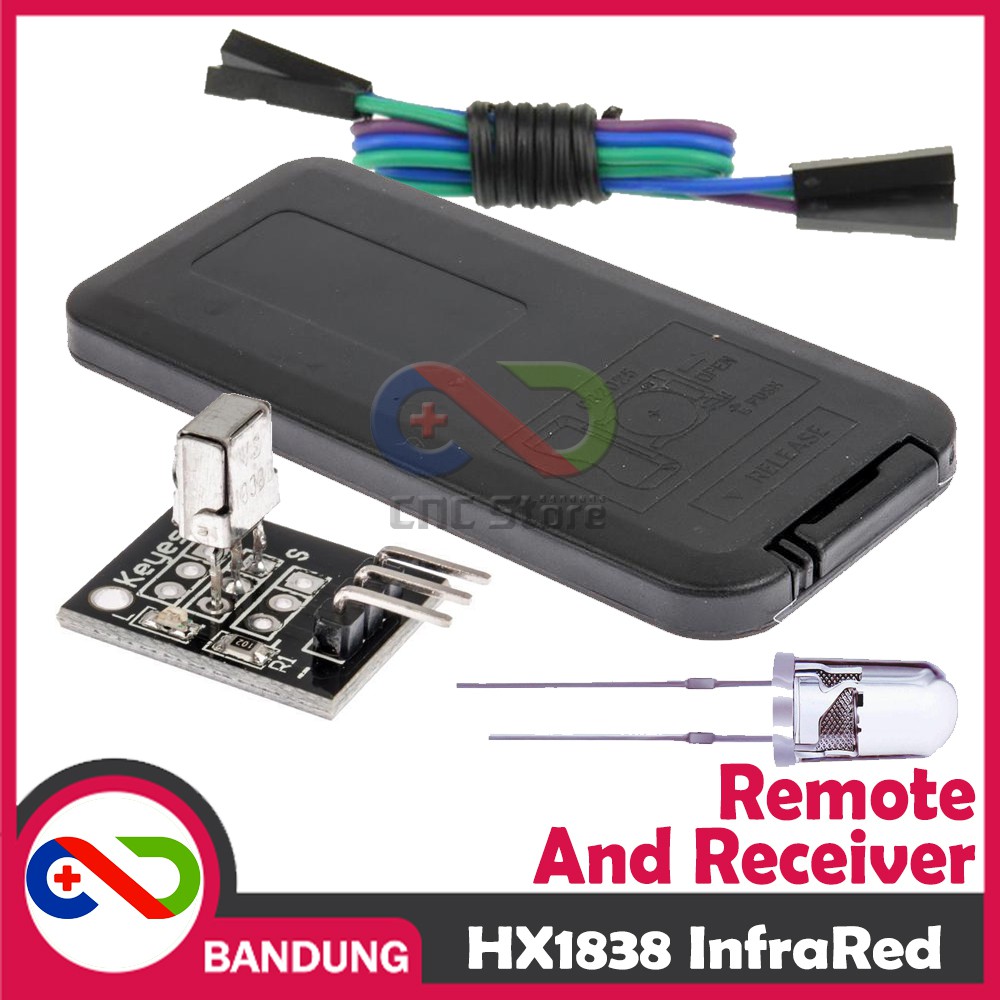

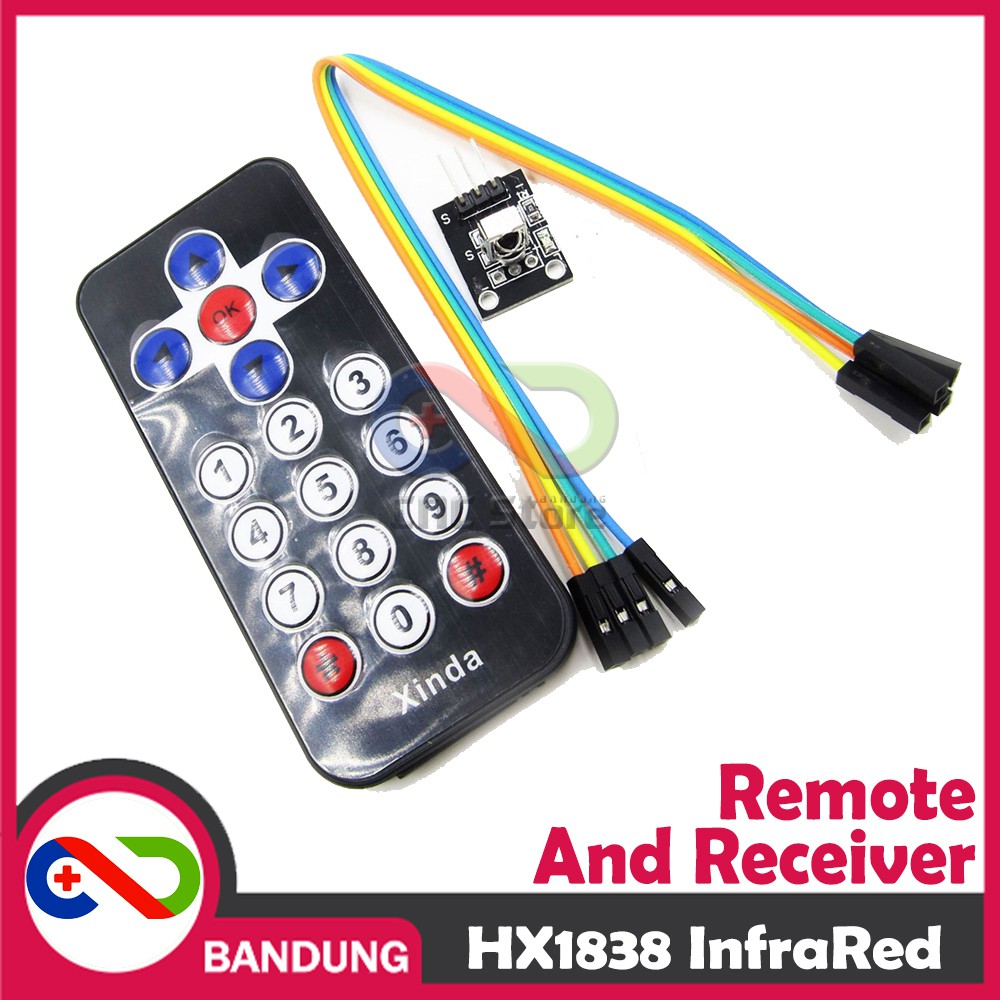

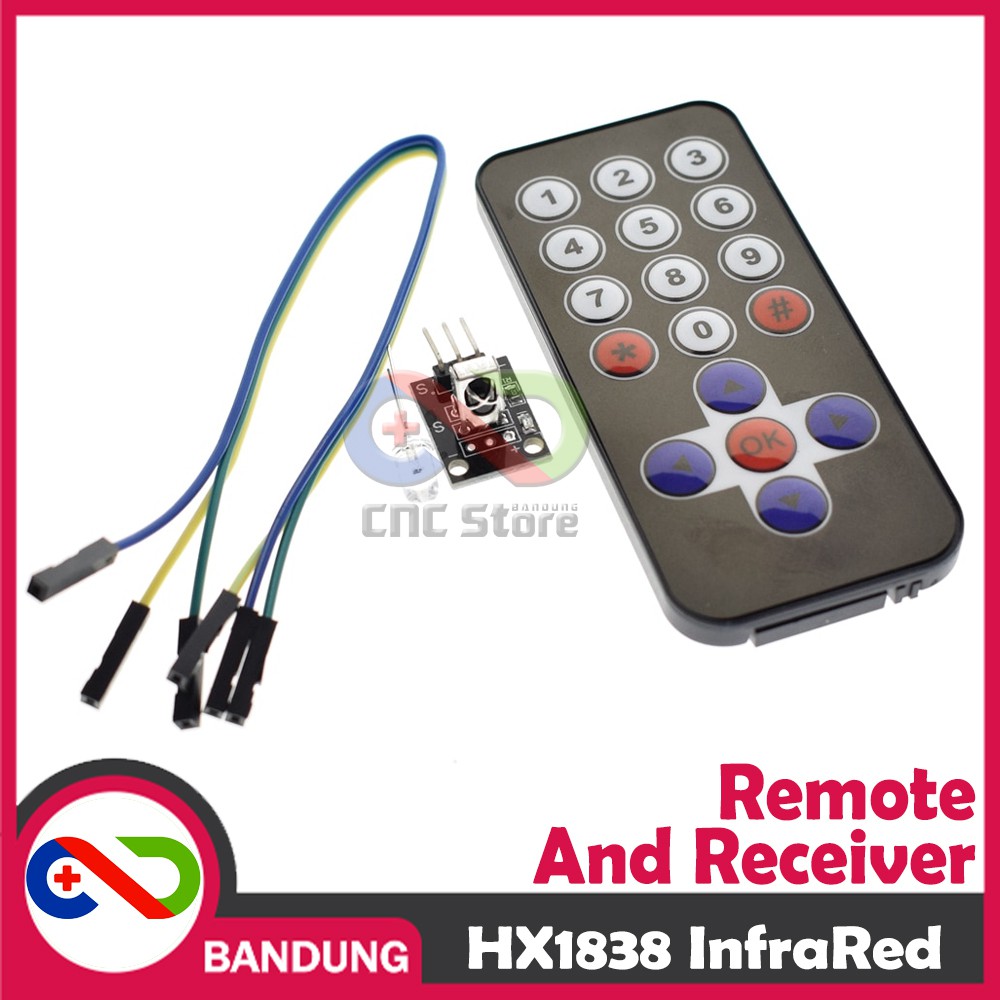

Gambar produk
