Human Sensor Module HCSR501 Electrical Parts HC SR501

Detail Human Sensor Module HCSR501 Electrical Parts HC SR501

Spesifikasi :
Operating voltage : 4.5 – 20 V
Quiescent current : 50 μA
Level output : HIGH 3.3 V / LOW 0 V
Trigger L single trigger / H repeating trigger
Delay time : 3 – 300 s
Blocking time : 2.5 s (default)
Trigger L single trigger / H repeating trigger
Measuring range : 3 – 7 m maximum
Measuring angle : < 110° cone angle
PCB dimensions : 32.5 x 24 mm
Mounting holes : 2 mm, 28.5 mm spacing
Fresnel lens dimensions : 15 mm x 23 mm diameter
Operating temperature : -15 – 70 °C

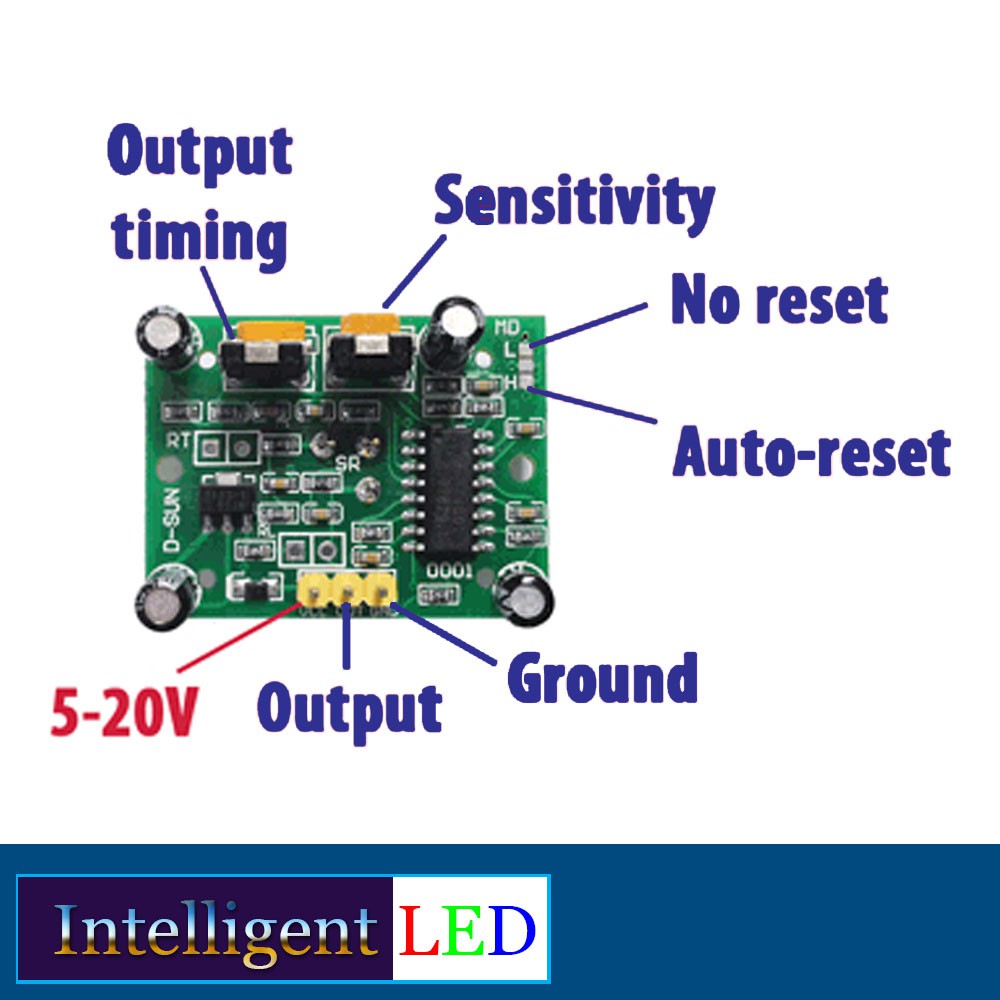

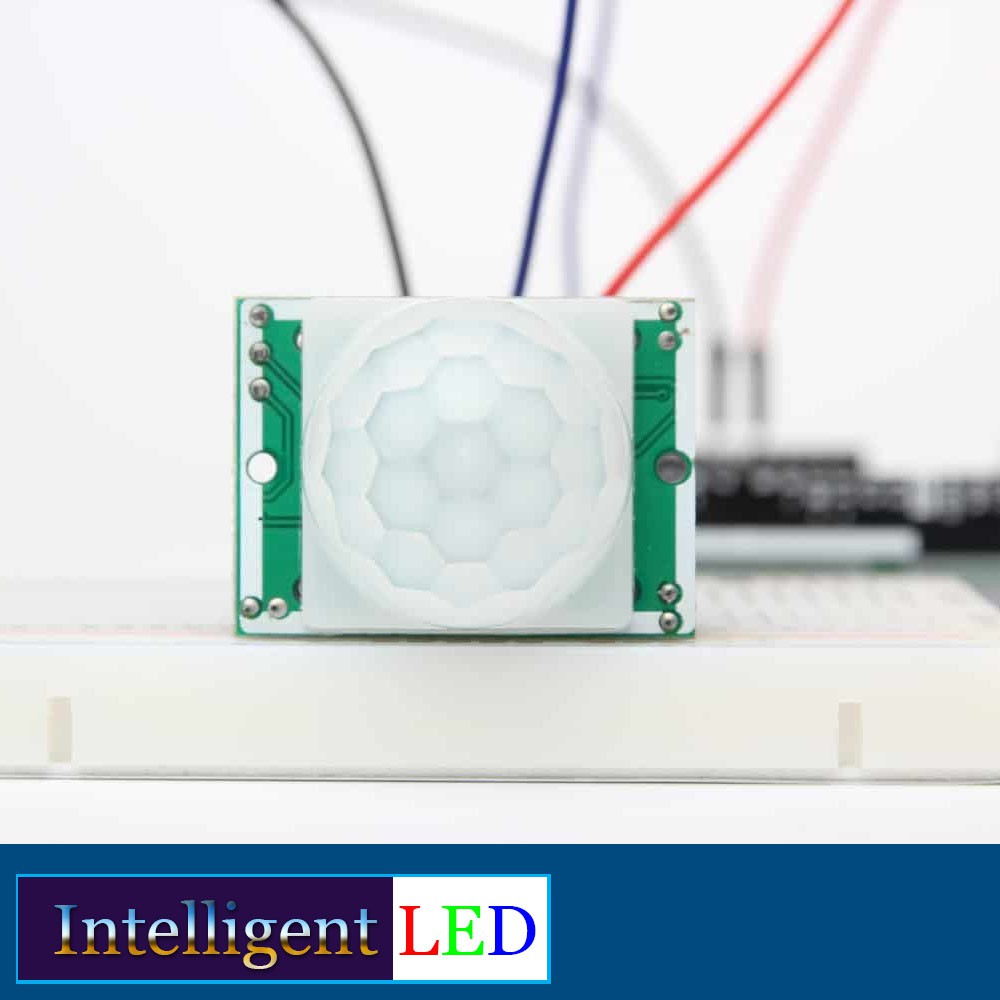

Gambar produk
