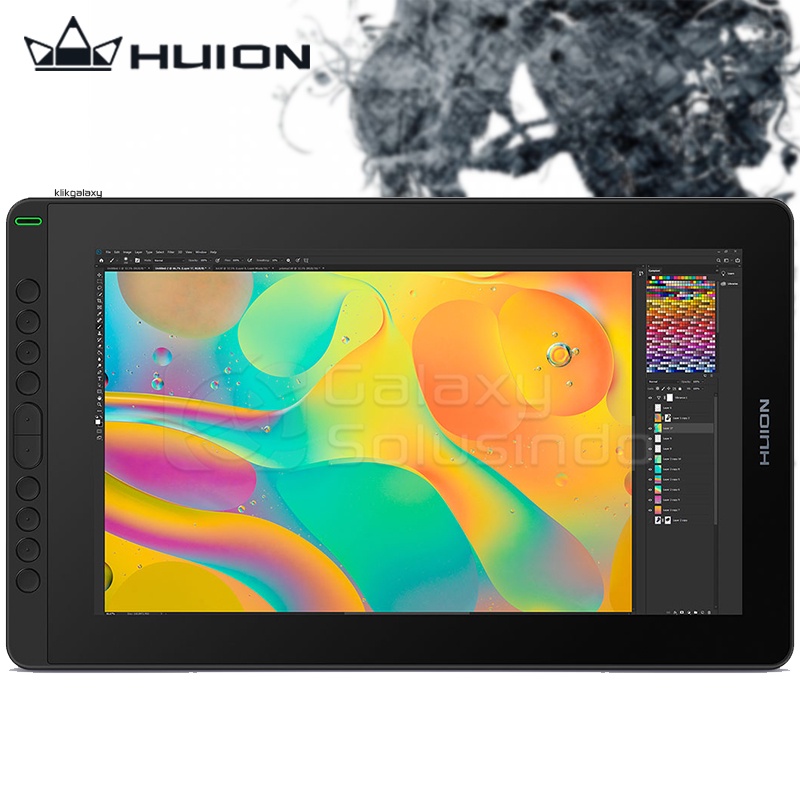

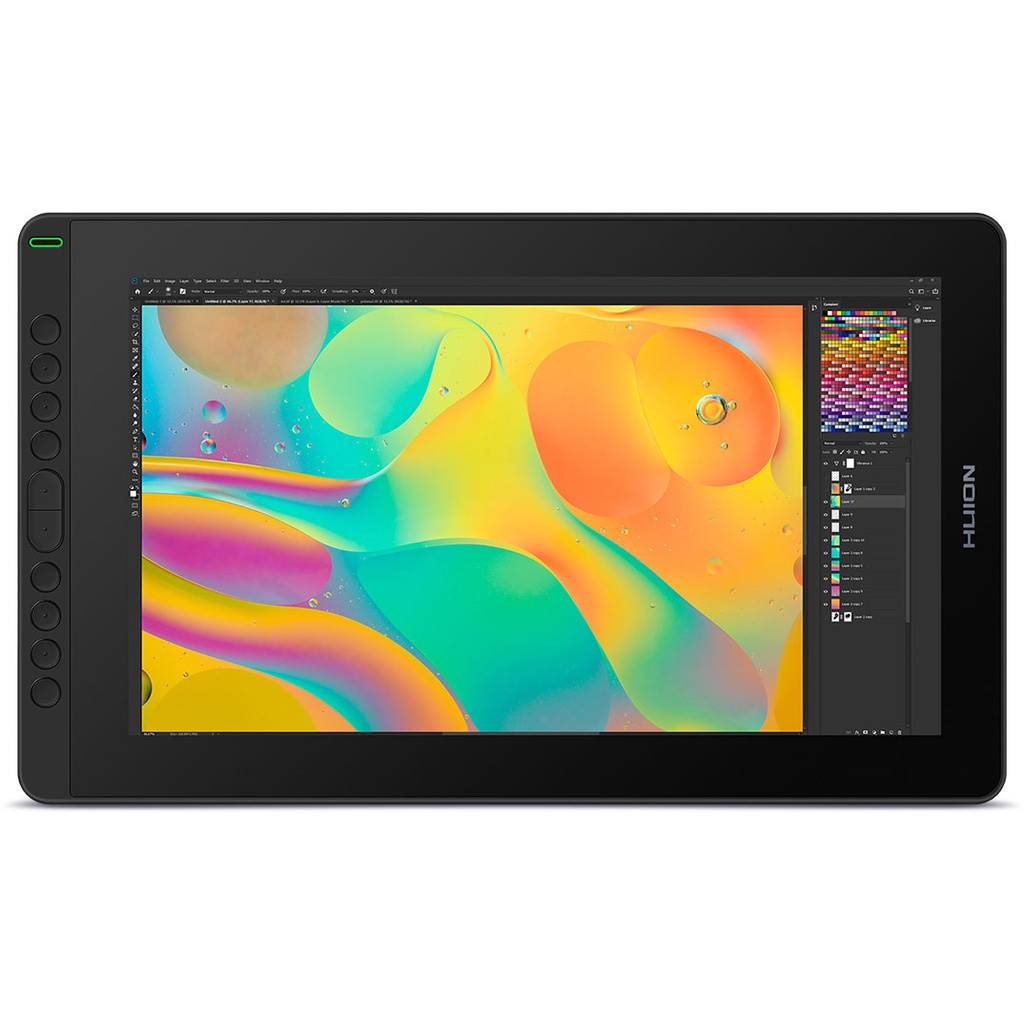

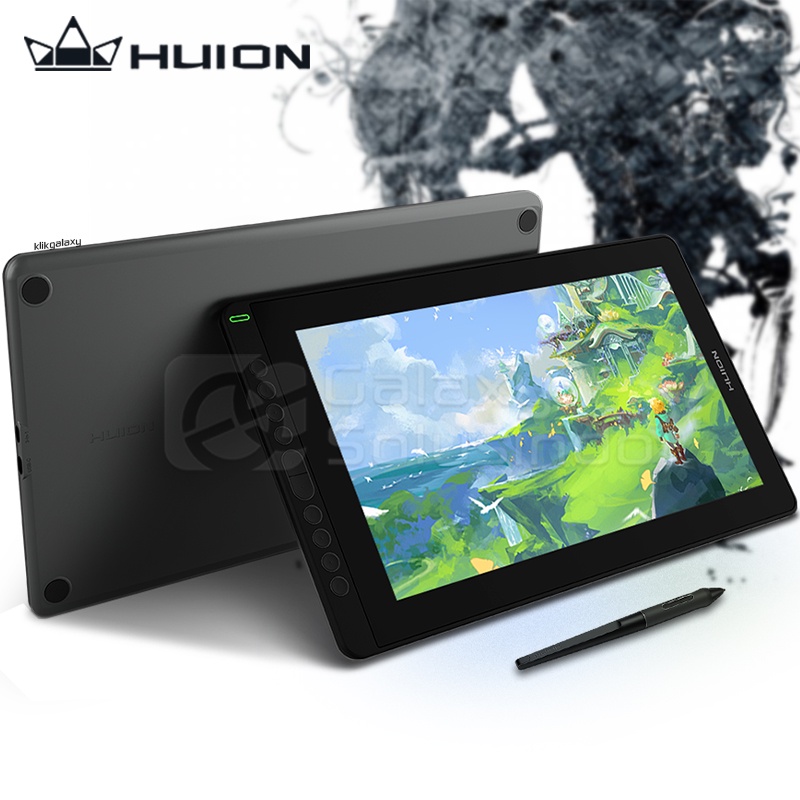

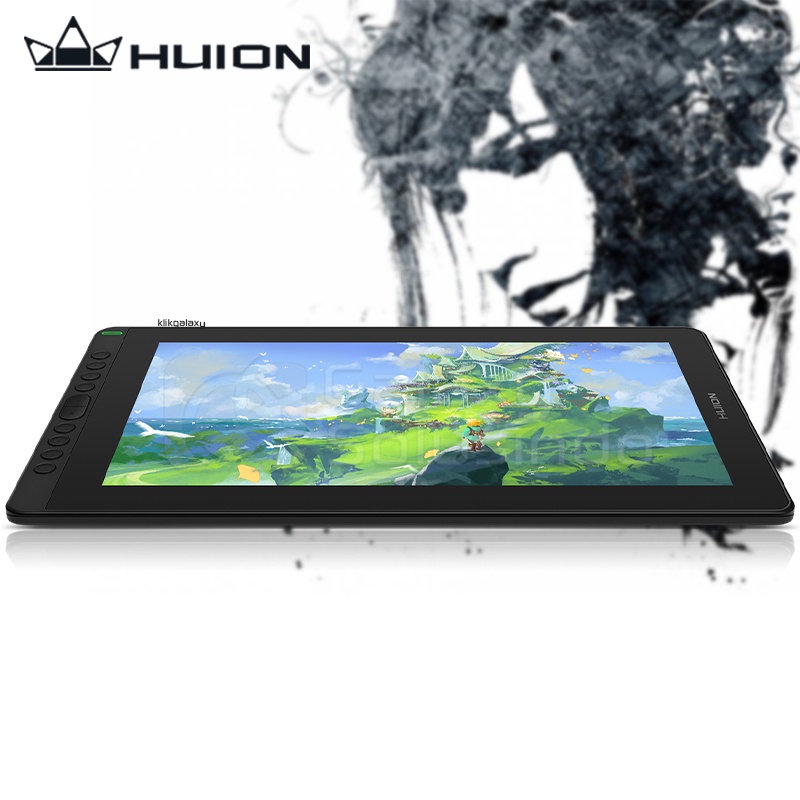

Huion KAMVAS RDS-160 Pen Display Drawing Tablet - Metal Grey

Detail Huion KAMVAS RDS-160 Pen Display Drawing Tablet - Metal Grey

SPECIFICATION:

Model
RDS-160
Appearance
Dimension:423.5 x 253 x 12mm
Workspace:344.16 x 193.6mm
Net Weight:1.26Kg
Touch:-
Stand:Foldable Stand ST300 20°/45°
Video Interface:3-in-1 USB-C(HDMI), Full Featured USB-
Screen
Resolution:1920 x 1080（16:9）
LCD Type:IPS
AG Glass:Anti-glare etched glass
Full Lamination:Full lamination
Contrast Ratio:1000:1
Brightness:220nit (Max.)
Response Time:25ms
Viewing Angle:89°/89°(H)/89°/89°(V) (Typ.)(CR＞10)
Gamut:145% sRGB(Quantum dots)
Display Color:16.7M(8bit)

Technical Specifications
Digital Pen:PW517
Pen Technology:Battery-free EMR
Pen Resolution:5080 LPI
Pressure Sensitivity:8192levels
Tilt Support:±60°
Sensing Height:10mm
Report Rate:＞220PPS
Accuracy:±0.3mm(Center)±2mm(Corner)
Press Keys:10 programmable press keys
Operating Conditions
Input Voltage:USB 5V
Output Voltage:5V 2A
Power Consumption:≤10W
Standby Consumption:≤0.3W
Working Temp. and Humidity:0-40°C, 20-80%
Storage Temp. and Humidity:-20°C~60°C, 10-90%
OS Compatibility
Windows 7 or later，
macOS 10.12 or later,
Android（USB 3.1 DP1.2）
