HUAWEI HG8346M EPON INTERNAL ANTENA SC UPC

Detail HUAWEI HG8346M EPON INTERNAL ANTENA SC UPC

SUPER USER
USER            : telecomadmin
PASSWORD : admintelecom

VIDEO PRODUK :
youtube.com/watch?v=ztWuJx7guhI

HUAWEI HG8346M INTERNAL ANTENA
Hardware parameter
Working temperature: 0?~ 40?
Working environment humidity: 5%RH~95%RH, non-condensing
Power adapter input:180V~240V AC, 50Hz~60Hz
Whole machine power supply: 11V~14V DC, 1 A
Static power: 6 W
Maximum power consumption: 14 W
Interface: 2POTS+4FE+WiFi+USB
Indicator light: POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS
Interface parameters
PON interface
Class B+/PX20+ or Class C+/PX20+
Receiving sensitivity: -27dBm
Wavelength: upstream 1310nm, downstream 1490nm
Support band stop filter (WBF) Flexible mapping between GEM Port and TCONT
Authentication method: SN/Password/LOID (GPON);
MAC/Key/LOID(EPON) Two-way FEC (Forward Error Correction) Support SR, NSR DBA
Ether
VLAN Tag/Tag stripping based on Ethernet port 1:1 VLAN/N:1 VLAN/VLAN transparent transmission
QinQ VLAN
MAC address restrictions
MAC address learning
POTS port
The maximum number of phones connected to one port in parallel: 4 REN
Support G.711A/u, G.729a/b, G.722 codec
Support T.30/T.38/G.711 fax
DTMF
Emergency call (SIP protocol)
WLAN
IEEE 802.11 b/g/n
22 MIMO
Antenna gain: 2dBi WMM (Wi-Fi Multi Media) Multiple SSID
WPS
USB port
USB2.0
FTP-based network storage

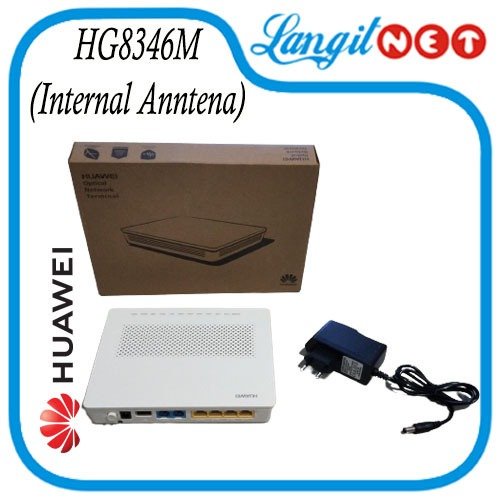

Gambar produk
