Huawei HG8310M XPON ONU | ONT 1x EPON/GPON 1x RJ45 1000Mb/s

Detail Huawei HG8310M XPON ONU | ONT 1x EPON/GPON 1x RJ45 1000Mb/s

Deskripsi : Huawei HG8310M XPON ONU | ONT 1x EPON/GPON 1x RJ45 1000Mb/s

Garansi 1 BULAN ( diluar Adaptor & Force Majeur )

Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain

Interfaces :
GPON/EPON 1 port class C+
Sensitive reception: ~-27 dBm
Flexible mapping between the GEM and TCONT ports
Wavelength: US 1310 nm, DS 1490 nm
GPON: compatible with SN authentication or password as defined in G.984.3
Two-way FEC
SR-DBA and NSR-DBA
Ethernet 10/100/1000BASE-T (RJ45)
Teaching MAC addresses
Transparent transmission of IPv6 packets on layer 2 level
QinQ VLAN
Connection type SC/UPC
Physical characteristics

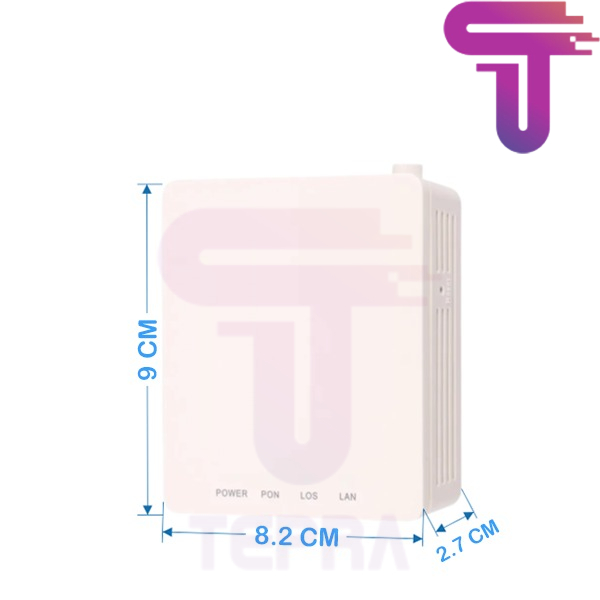

Dimensions 82 x 90 x 27 mm
Weight < 500 g
Permissible operating temperature 0° to 40° C
Permissible air humidity 5%-95% RH, non-condensing
Power input 100 – 240 V AC, 50 – 60 Hz
System power supply 11 – 14 V DC, 0.5 A
Average power consumption 2 W
Maximum power consumption 3 W
LEDs POWER/ PON/ FATE/ LAN

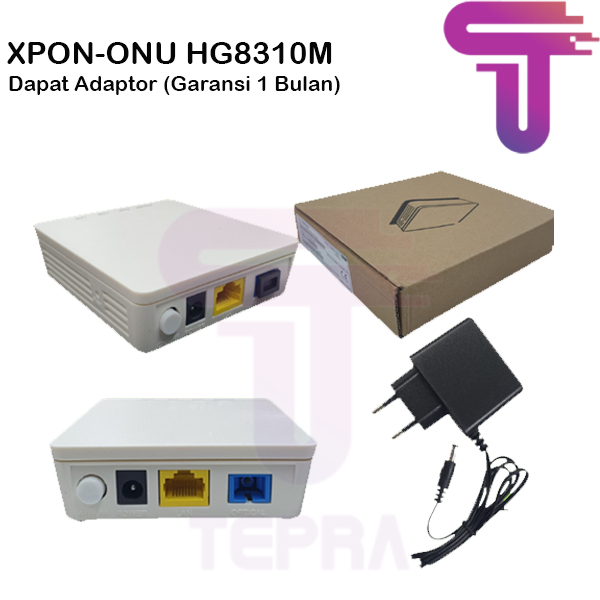

Set composition HG8310M
12 V, 0.5 A DC power supply

Gambar produk
