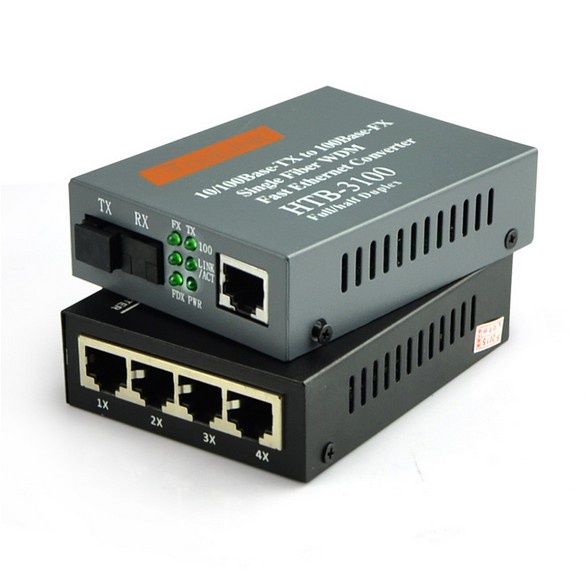

HTB-3100A / B 100Mbps RJ45 Optical Media Converter fiber optik/ Konverter Fiber Optikal 10 Original

Detail HTB-3100A / B 100Mbps RJ45 Optical Media Converter fiber optik/ Konverter Fiber Optikal 10 Original

HTB - 3100ab single mode single fiber transceiver product can save half of the fiber, the data on a single fiber and the 10/100 m rate of receiving and sending,

where the optical fiber resource is very applicable.


Parameters:

Follow the IEEE 802.3, IEEE 802.3u and 100Base-FX standards

10/100Mbps data transfer rate

Support full-duplex and half-duplex way of working

Provides a standard RJ45 interface and SC fiber interface

RJ45 interface supports both 10Mbps and 100Mbps auto-negotiation function

RJ45 interface with fast switch function

EMI Certification: CE, FCC, VCCI, C-Tick

Fiber Type Singlemode

SC fiber optic interface type

Wavelength 1310nm 1550nm

Transmission distance 25Km

Maximum transmit optical power -12.0 dBm

Minimum emission power -19.0 dBm

Sensitivity -34.0 dBm

15.0 dBm optical fiber link loss

Package listing:

1pair or 1pcs* Htb-3100 A/B

1pcs* 5V 2A EU Power adapter"
