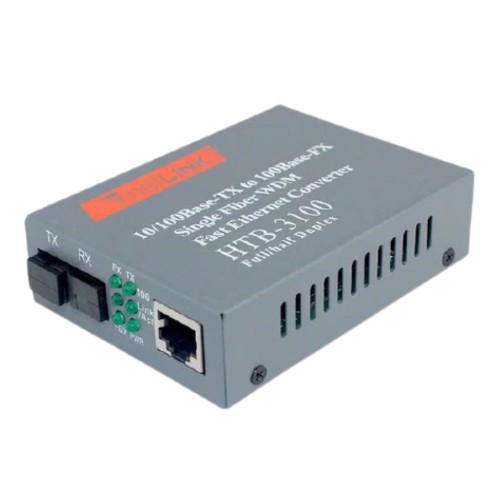

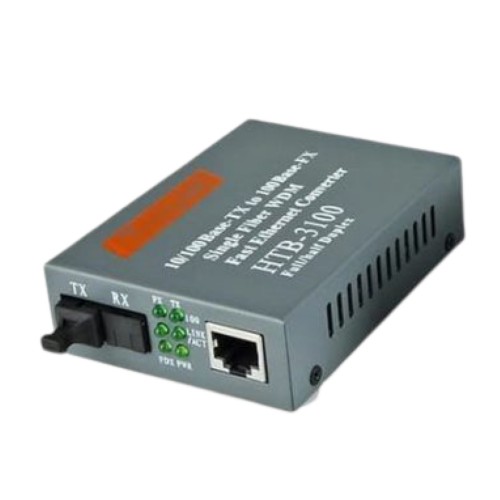

HTB-3100 Netlink Fiber Optical Media Converter RJ45 Varian Sepasang dan 1 Pcs 25KM

Detail HTB-3100 Netlink Fiber Optical Media Converter RJ45 Varian Sepasang dan 1 Pcs 25KM

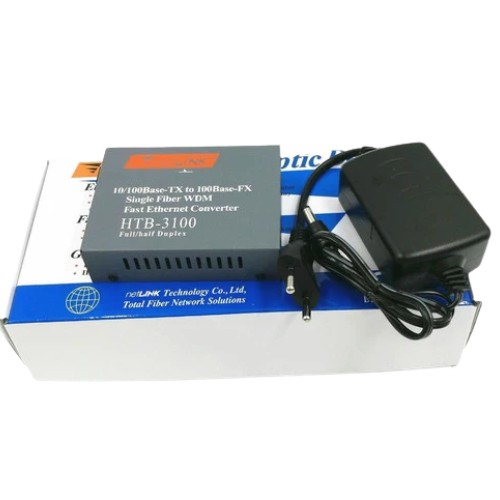

Paket yg di dapat :
ADA 2 VARIAN
1 Pcs Netlink HTB 3100

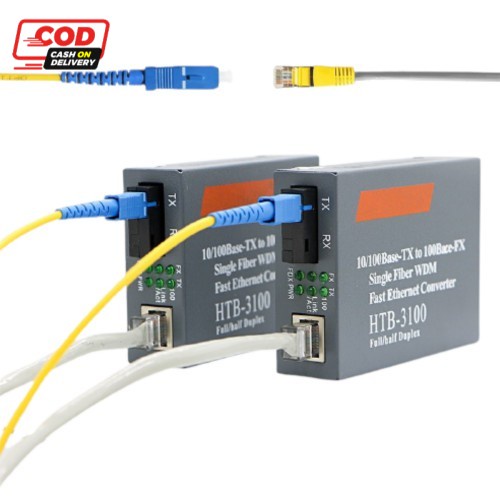

1 Pasang Netlink HTB 3100 A-B
Adaptor 5Volt (colokan BULAT PLN indonesia bukan yg gepeng)
User manual

TIDAK GARANSI, SEMUA UNIT SUDAH DI TEST NYALA SEBELUM KIRIM JADI TIDAK ADA KOMPLEN
BELI BERARTI SETUJU

DiKirim Dari Jakarta!
Feature: Single mode and one optical fiber
It can save half of the fiber,the data on a single fiber and the 10/100 m rate of receiving and sending,where the optical fiber resource is very applicable
1.Brand-New, High Quality
2.An RJ45 ports and a single-fiber SC optical port , to achieve optical signal conversion between 10/100base TX twisted pair (Ethernet )and 100base FX (fiber optic) ;
3.Core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission mode to improve the quantity doubled ;
4.Compliance with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards
5.Has 10M/100M adaptive capacity ;
6.Ethernet interface can adaptively direct line / crossover cable connection ;
7.Support full / half duplex mode ;
8.Support IEEE802.3X duplex flow control and half-duplex backpressure flow control
9.Supports broadcast storm prevention function ;
10.1916 Byte support large data frame ( optional ) ;
11.Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction ;
12.UTP up to 100 meters ; longest 100 km single-mode fiber ;
13.There are six LED indicators : Power, TX 100, TX Link / Act, FX 100, FX Link / Act, FDX / Col; easy to monitor the working
status of the transceiver and determine the cause of the fault ;
14.There are external , internal power supply of two types : AC100 ~ 265V / DC5V switching power supply ;
15.Working temperature : 0 ~ 50 degree;
16.Storage temperature : - 40 ~ 70 degree ;
17.Transceiver Dimensions: External power 70 × 26 × 93mm; built-in 120 × 30 × 140mm.
18.outer Dimensions: 95mm × 71mm × 25mm
19.Package: ESD package,Carton
