Ht Weierwei 700 Wp waterprof original garansi resmi

Detail Ht Weierwei 700 Wp waterprof original garansi resmi

Feature
Dual band, Dual frequency, Dual standby
2 x 128 memory channel
A / B frequency independent operation
ANI code
Wide / narrow bandwidth selective
CTCSS / DCS scanning
DTMF function
All call, group call, selective call
Remote stun, remote kill
Standby / TX / RX backlight color setting
10 channels for FM Radio storage
Bright flashlight illumination
VOX function
IP67 waterproof

Spesifikasi :
Technical Parameter
Frecuency range : VHF 136-174 Mhz, UHF 400-475 Mhz
Channel capacity : 2 x 128
Channel spacing : 25Khz / 12.5 Khz
Antenna impedance : 50 ohm
Microphone impedance : 600 ohm
Operating voltage : 7.4V DC
Frequency stability : 2.5 PPm
Size (with battery) : 110mm (L) x 57mm (W) x 33mm (D)
Weight (with battery) : 195g
Battery : 1800mAh (Polymer Li-Ion)

Transmitter
RF power output : 5W / 1W
Modulation type : FM
Modulation sensitivity : < 15mV
Modulation distortion : 5%
Max freq deviation : 5Khz / 2.5Khz
Occupied bandwidth : 16Khz
Modulation feature : 3db
Spurious radiation : 7.5W
Adjacent ch. power : -65dB

Receiver
Receiver sensitivity : 1.5 v (at 12dB SINAD)
Intermodulation rejection : > 60dB
Audio output : 500mW (12 ohm)
Adjacent channel selectivity : > 65dB
Spurious response : > 60dB
Squelch sensivity : 0.10 V
Audio respon : + 2 - 8
Operating bandwitdh : > 5Khz
Co-channel rejection : > -8dB
Blocking : > 85dB

Paket dalam pembelian :
Battery
Charger
Antenna
Belt Clip
Handstrap
Manual book

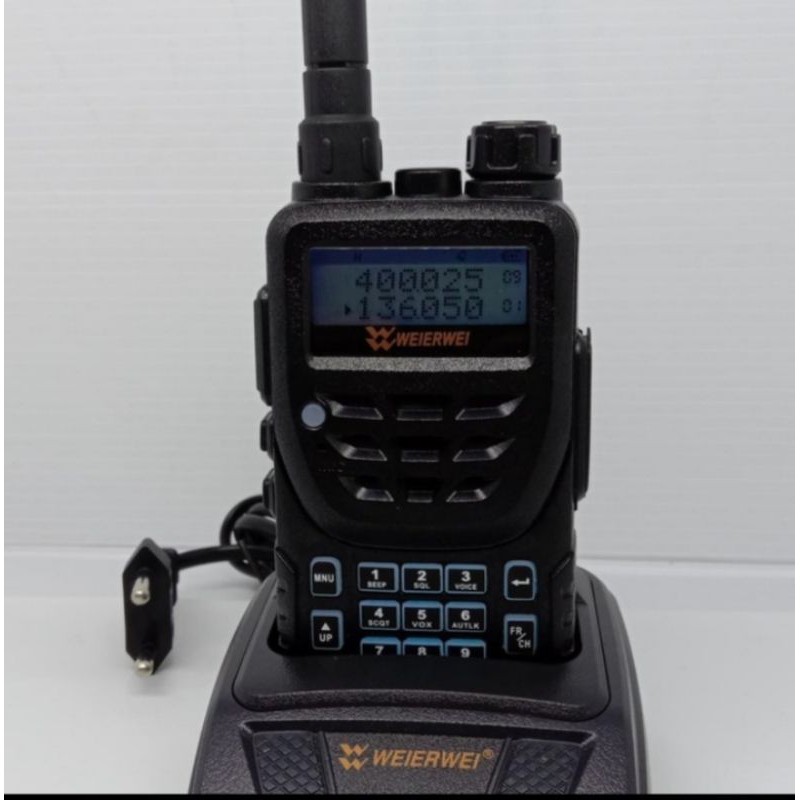

Gambar produk
