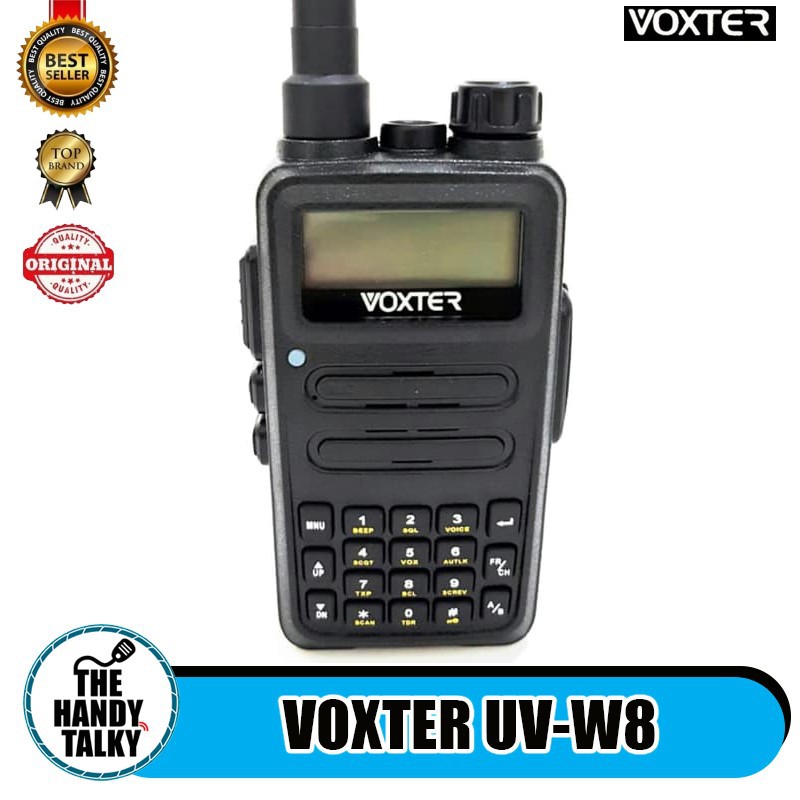

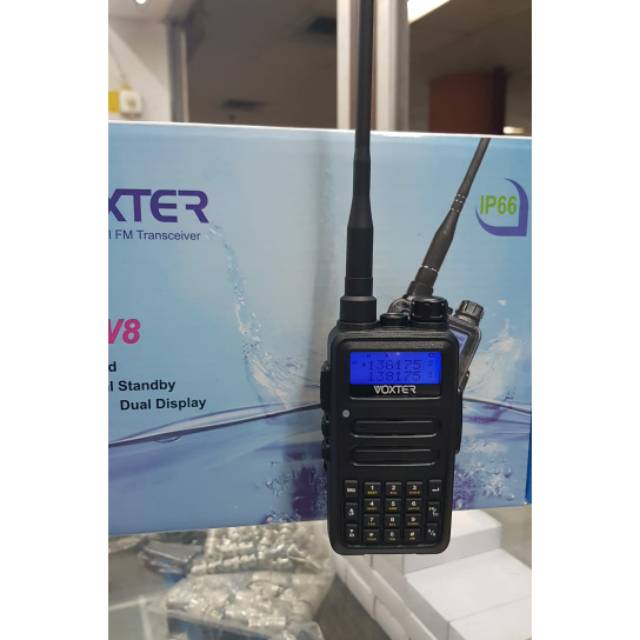

HT VOKTER W8 DUALBAND ANTI AIR WATERPROOF ORI GARANSI VOKTER W8 DUALBAND BARU

Detail HT VOKTER W8 DUALBAND ANTI AIR WATERPROOF ORI GARANSI VOKTER W8 DUALBAND BARU

Video perkenalan produk HT VOKTER W8 DUALBAND ANTI AIR WATERPROOF ORI GARANSI VOKTER W8 DUALBAND BARU. Sumber: Shopee.

HT Voxter Baterai Charger
Antenna
Belt Clip
Handstrap

Baca Selengkapnya

Deskripsi Produk


Feature
Dual band, Dual frequency, Dual standby
2 x 128 memory channel
A / B frequency independent operation
ANI code
Wide / narrow bandwidth selective
CTCSS / DCS scanning
DTMF function
All call, group call, selective call
Remote stun, remote kill
Standby / TX / RX backlight color setting
10 channels for FM Radio storage
Bright flashlight illumination
VOX function
IP66 waterproof

Spesifikasi :
Technical Parameter
Frecuency range : VHF 136-174 Mhz, UHF 400-475 Mhz
Channel capacity : 2 x 128
Channel spacing : 25Khz / 12.5 Khz
Antenna impedance : 50 ohm
Microphone impedance : 600 ohm
Operating voltage : 7.4V DC
Frequency stability : 2.5 PPm
Size (with battery) : 110mm (L) x 57mm (W) x 33mm (D)
Weight (with battery) : 195g
Battery : 1800mAh (Polymer Li-Ion)

Transmitter
RF power output : 5W / 1W
Modulation type : FM
Modulation sensitivity : < 15mV
Modulation distortion : 5%
Max freq deviation : 5Khz / 2.5Khz
Occupied bandwidth : 16Khz
Modulation feature : 3db
Spurious radiation : 7.5W
Adjacent ch. power : -65dB

Receiver
Receiver sensitivity : 1.5 v (at 12dB SINAD)
Intermodulation rejection : > 60dB
Audio output : 500mW (12 ohm)
Adjacent channel selectivity : > 65dB
Spurious response : > 60dB
Squelch sensivity : 0.10 V
Audio respon : + 2 - 8
Operating bandwitdh : > 5Khz
Co-channel rejection : > -8dB
Blocking : > 85dB
Paket dalam pembelian :
HT Voxter UV-W8
Battery
Charger
Antenna
Belt Clip
Handstrap
