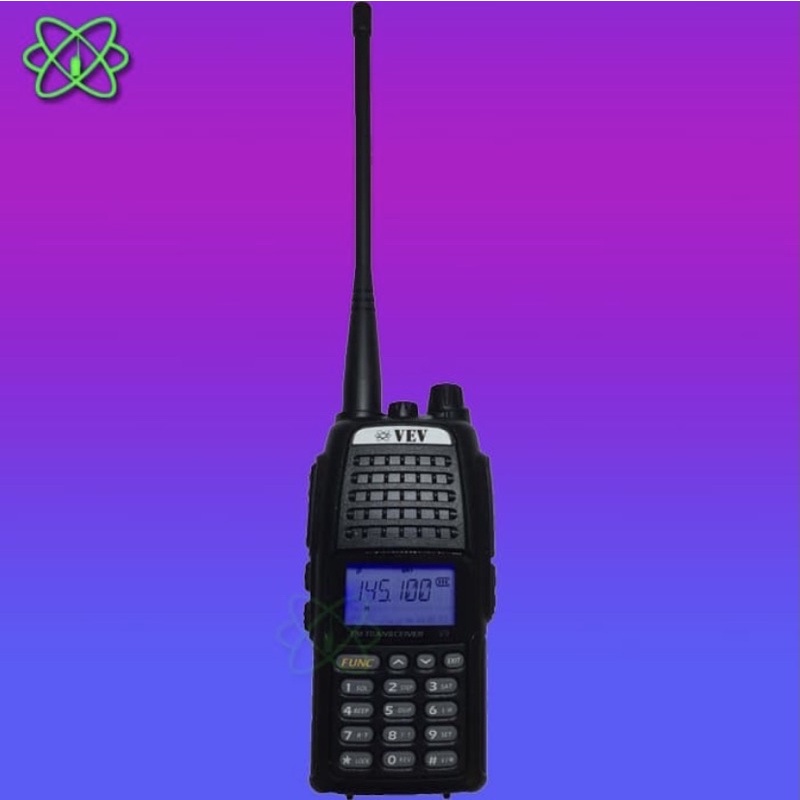

HT VEV V9 profesional vhf

Detail HT VEV V9 profesional vhf

Features :
- Roger
- OX Built-in
- FM Radio
- ANI Code
- DTMF
- Scan Function
- QD/DQT
- LCD Colorful Screen Backlight
- LED Light Flashlight Function
- CTCSS/DCS
- Emergency Call
- 128 Memories Frequency Channel
- Wide/Narrow Bandwidth Selectable
- PC Programmable with Chinese and English Software
- Three Color LCD Backlight Display

Specs :
Frequency Ranges :
- VHF : 136-174 MHZ
Number of Channels : 128 Channels
Temperature Range : -20C ~ +50C
Operating Voltage : DC 7.2V
Operating Mode : Frequency simplex and different frequency simplex
Antenna Impedance : 50 ohm
Battery : 1500 mAh (Li-Ion)

Receiver :
Sensitivity : 0.18 UV
Audio Distortion : 3%
Audio Response : 2dB ~ -8dB
Channel Inhibition : -8dB
Adjacent Channel Selectivity : 55dB
Inter-modulation Rejection : 55dB
Spurious Response : 55dB
Blocking : 85dB

Transmitter :
RF Output :
- VHF : 136-174 MHZ
Output Power : 1W/2W/5W
Frequency Stability : 2.5ppm
Max Frequency Deviation : 5KHz
Audio Distortion : 3%
Modulation Character : 3dB ~ -3dB
Adjacent Channel Power : 65dB
Spurious Radiation : 7.5 uHz
Occupied Bandwidth : 16KHz
