HT VERTEX STANDARD VZ-88 VHF by Motorola
Deskripsi singkat
Elektronik > Walkie Talkie > HT VERTEX STANDARD VZ-88 VHF by Motorola
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Detail HT VERTEX STANDARD VZ-88 VHF by Motorola
#handytalky #ht HT ( Handy Talkie ) Vertex Standard VZ-88 by Motorola adalah HT terbaru keluaran Vertex yang memiliki desain kecil dan tangguh serta harga yang ekonomis.HT VERTEX STANDARD VZ-88 memiliki spesifikasi :
# General Specification :
- Frequency Range : VHF : 136-174 MHz / UHF : 403-470 MHz
- Number of Channels : 128
- Power Supply Voltage : 7.4 V DC 20%
- Channel Spacing : 12.5 / 25 kHz
- Battery Life : 1800mAh FNB-Z180Li, 15 hours ( w/ saver) / 9 hours
- Operating Temperature Range : -20 C to + 50 C
- Frequency Stability : 2.5 ppm
- RF Input-Output Impedance : 50 Ohms
- Dimension ( H x W x D) : 102 x 56 x 38 mm
- Weight ( Approx.) : with Antenna, Belt Clip 11.6 oz ( 260g) with FNB-Z180Li
# Receiver Specification :
- Sensitivity : 12dB SINAD 0.25 V typical
- Adjacent Channel Selectivity : 65 / 60 dB 25 / 12.5 kHz
- Intermodulation : 65 / 60 dB 25 / 12.5 kHz
- Spurious and Image Rejection : 65 dB
- Audio Output : 1 W @ 24 ohm ( 5% THD)
# Transmitter Specification :
- VHF Output Power : 5 Watt , Low Power : 1 Watt
- UHF Output Power : 4 Watt , Low Power : 1 Watt
- Modulation : 16K0F3E, 11K0F3E
- Conducted Spurious Emissions : 65 dB below carrier
- FM Hum & Noise : 45 / 40 dB 25 / 12.5 kHz
- Audio Distortion : < 3 % @ 1kHz

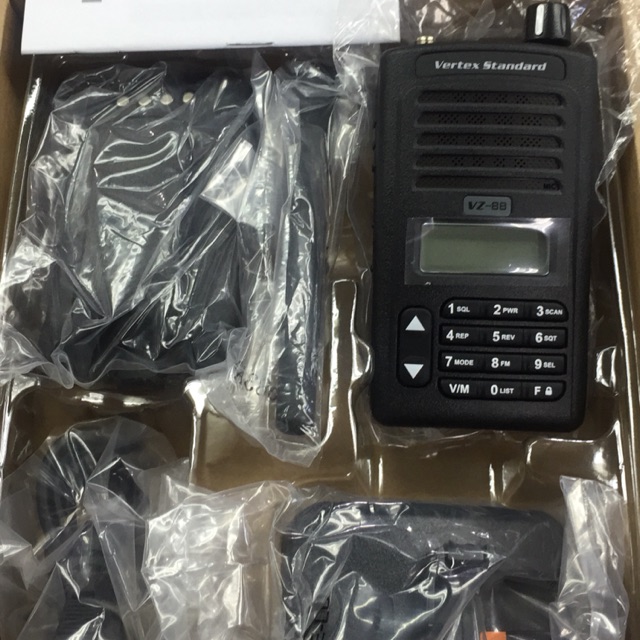

Gambar produk
