HT RADION RT22WP DUALBAND WATERPROOF IP66

Detail HT RADION RT22WP DUALBAND WATERPROOF IP66

Video perkenalan produk HT RADION RT22WP DUALBAND WATERPROOF IP66. Sumber: Shopee.

PERHATIAN :
PEMBELI DARI LUAR JAWA TIDAK BISA MENGGUNAKAN KURIR JnT.
Karena JnT tidak mau jadi pesanan akan kami BATALKAN.

Feature
Waterproof IP66
Dualband
Dual or single display frequency
Dual stanby
Battery 1800 mA Li-Ion

SPECFICATIONS
GENERAL
Frequency Coverage : VHF TX/RX 136.000 – 173.995 Khz
UHF TX/RX 400.000 – 470.000 khZ
FM Broadcast 76 – 108 MHZ (RX only)
Type of emissions : F2D/F3E (FM)
No. of memory Ch. : 240 channel
Operating Temperature: -2 0OC ~ +60OC
Frequency stability : + 2.5 ppm at 25OC
Operating Voltage : : 7.4 V DC
Antenna Impedance : 50 Ω (SMA Male)
Dimension (WxHxD) : 56 x 118 x 33.5 mm
Weight (approx.) : 206 g with battery and Antenna)

TRANSMITTER
Output power (at 7.4V) : Hi:5/Mid:2/Low:1 W (VHF)
Hi:4/Mid:2/Low:1 W (UHF)
Max. freq. devition : +5.0Khz(wide)/+2.5Khz(narrow)
Spurious emissions ; Less than -36dBm

RECEIVER
Sensitivity : wide 0.2µV (at 12db SINAND)
Squelch sensitivity : 0.1 µV typical (threshold)
Selectivity : -6 dB: 12KHz or more/-60dB: 30KHz or less
Intermodulation : 60dB(Wide)/60dB(Narrow) typical
Audio output power : 1 W typ.

Garansi resmi 2 Tahun


Garansi 2 tahun part and service with term of condition

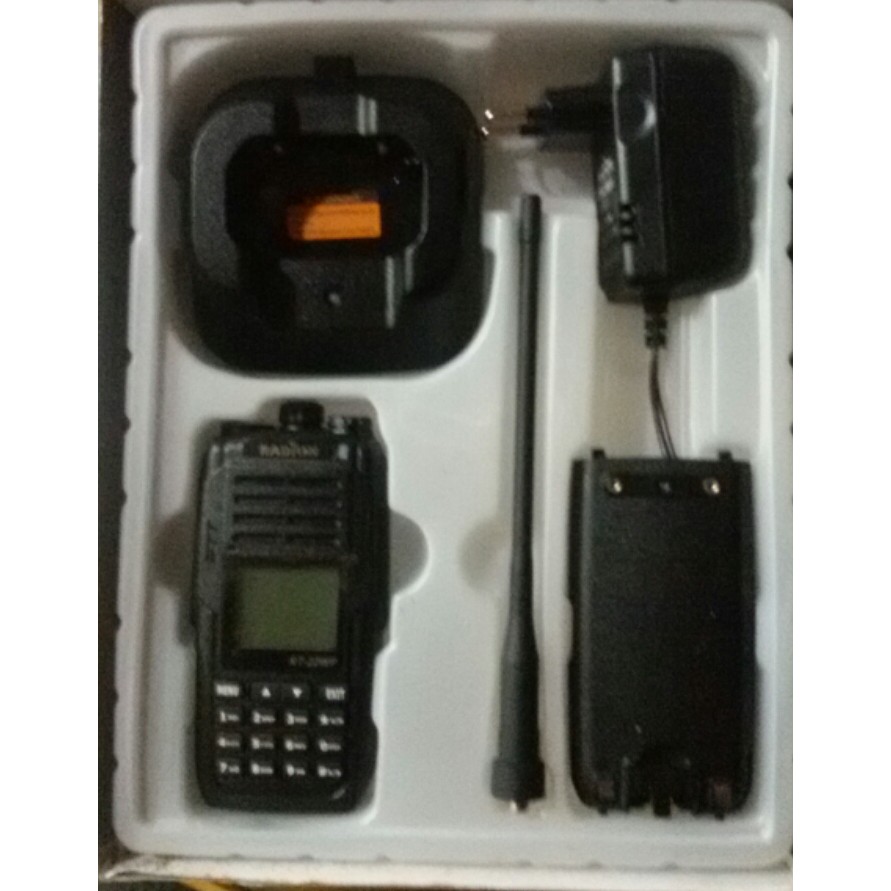

Perlengkapan standard :
- 1 Unit HT
- 1 Baterai
- 1 Beltclip
- 1 Antena
- 1 Docking Charger
- 1 Adaptor charger
- 1 Buku manual

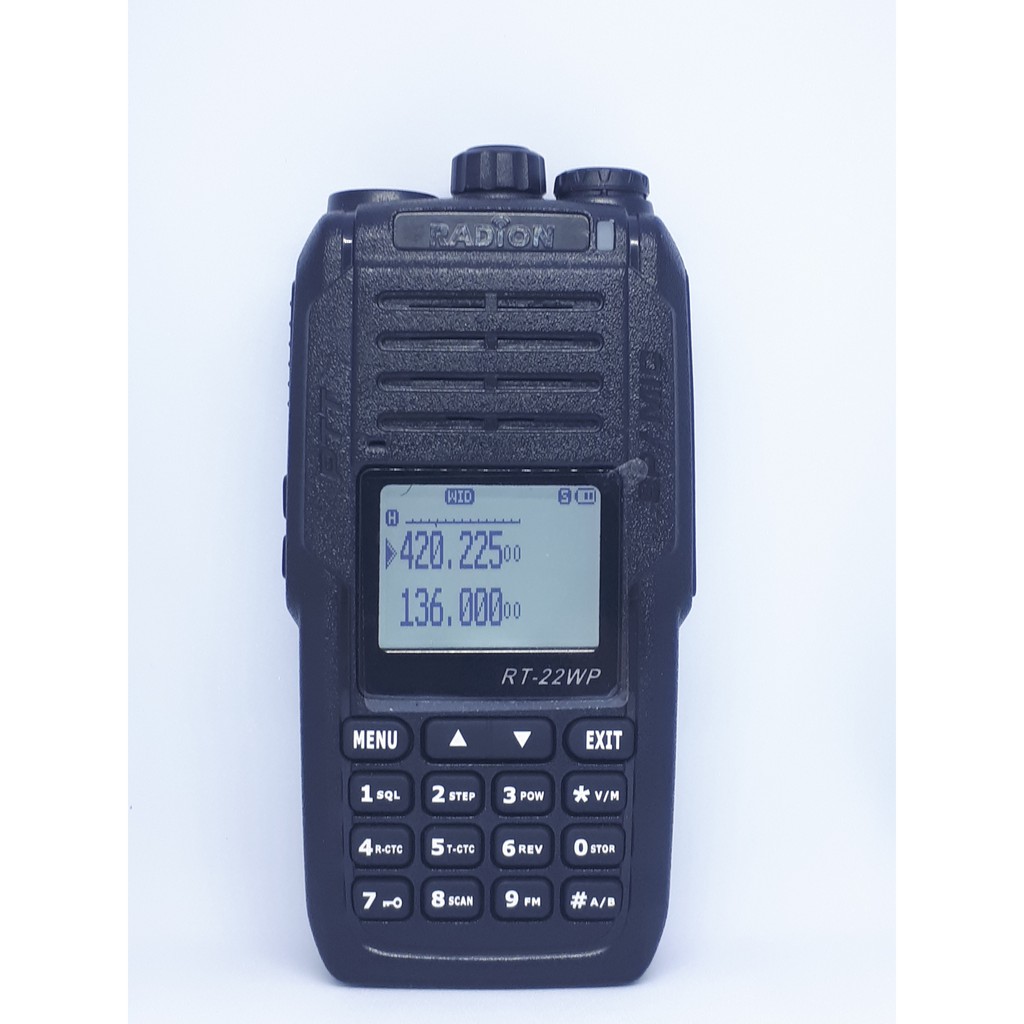

Gambar produk
