HT MYTETRA X6 Dual band UHF VHF fm radio komunikasi bisa connect UV5R UV82
Deskripsi singkat
Elektronik > Walkie Talkie > HT MYTETRA X6 Dual band UHF VHF fm radio komunikasi bisa connect UV5R UV82
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Detail HT MYTETRA X6 Dual band UHF VHF fm radio komunikasi bisa connect UV5R UV82
Video perkenalan produk HT MYTETRA X6 Dual band UHF VHF fm radio komunikasi bisa connect UV5R UV82. Sumber: Shopee.
Power Supply : 7.4V DC
Frequency Range : Dualband 135-175MHz /400-480MHz
Number of Channels : 128
Transmitter Specification
• Frequency Stability(-25 to 55,25 Ref) : 2.5ppm
• Power Output : 5W
• Modulation Limiting : ±≤5KHz@25KHz
• FM Hum & Noise : 45dB@25KHz
• Conducted/Radiated Emission : -36dBm < 1GHz, -30dBm > 1GHz
• Adjacent Channel Power : -60dBz
• Audio Response : +1 ~ -3 dB
• Audio Distortion : < 5%
• Battrey 2800Mah Li ion
Receiver Specifications
Sensitivity(12 dB SINAD)EIA : UHF/VHF: 0.25μV (12dB SINAD)
• Intermodulation EIA : ≤65dB
• Intermodulation Rejection : ≤70dB
Spurious Rejection : ≤70dB
• Rated Audio : ≤500mW
• Standby Current : 30Ma
Audio Distortion@ Rated Audio: ≤5%
Audio Response : +1 ~ 3 dB
STEP : 5KHz / 6.25KHz / 10KHz / 12.5KHz / 25KHz / 50KHz / 100KHZ

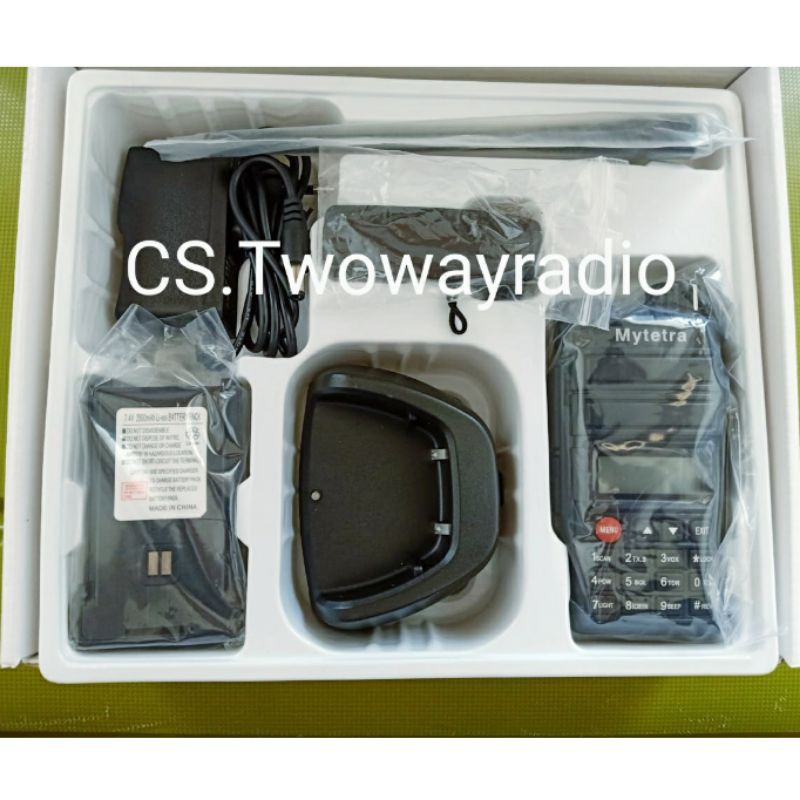

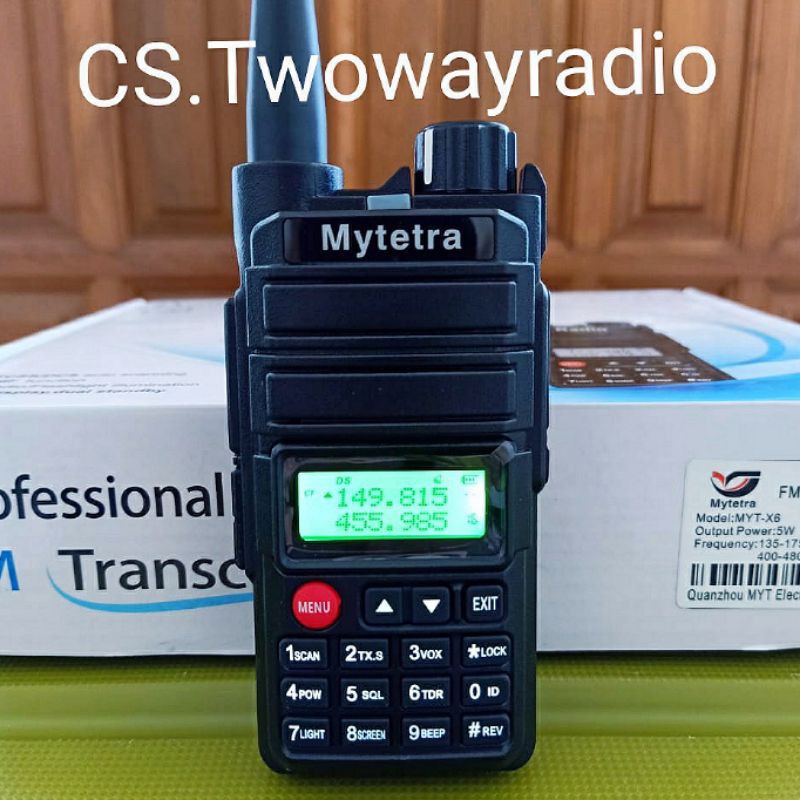

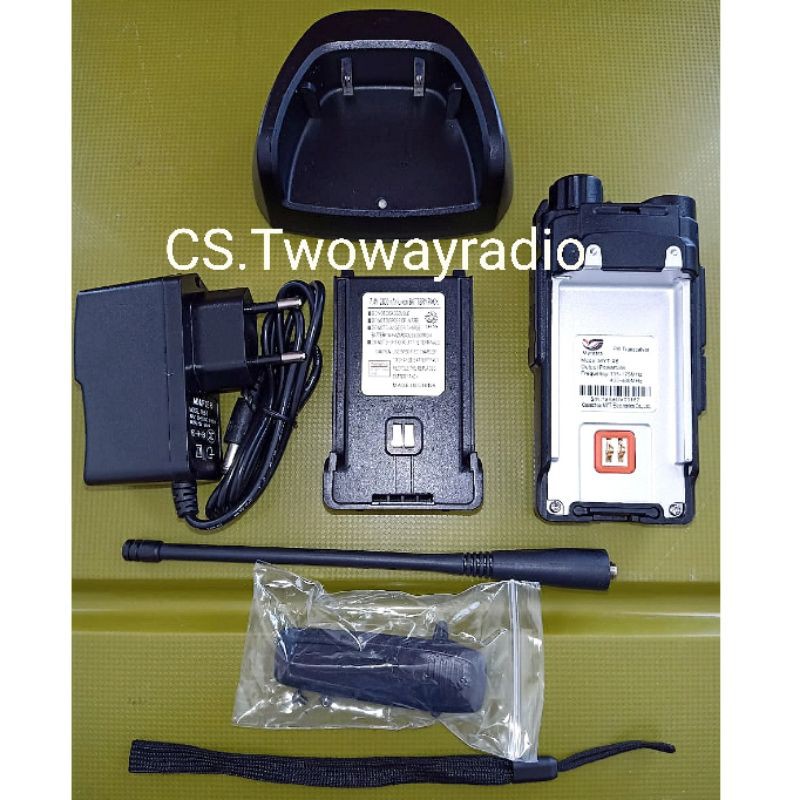

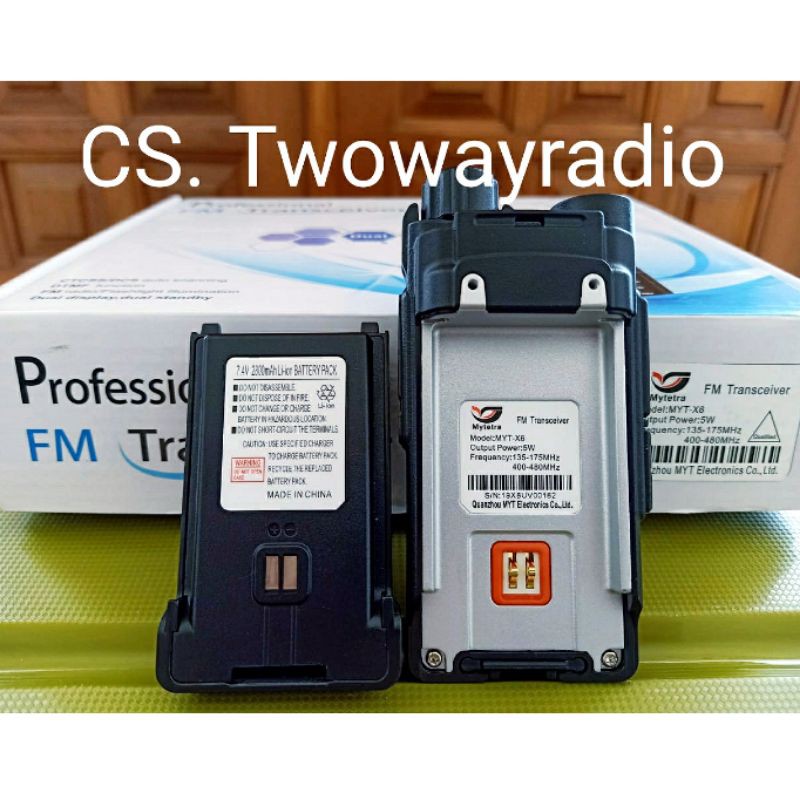

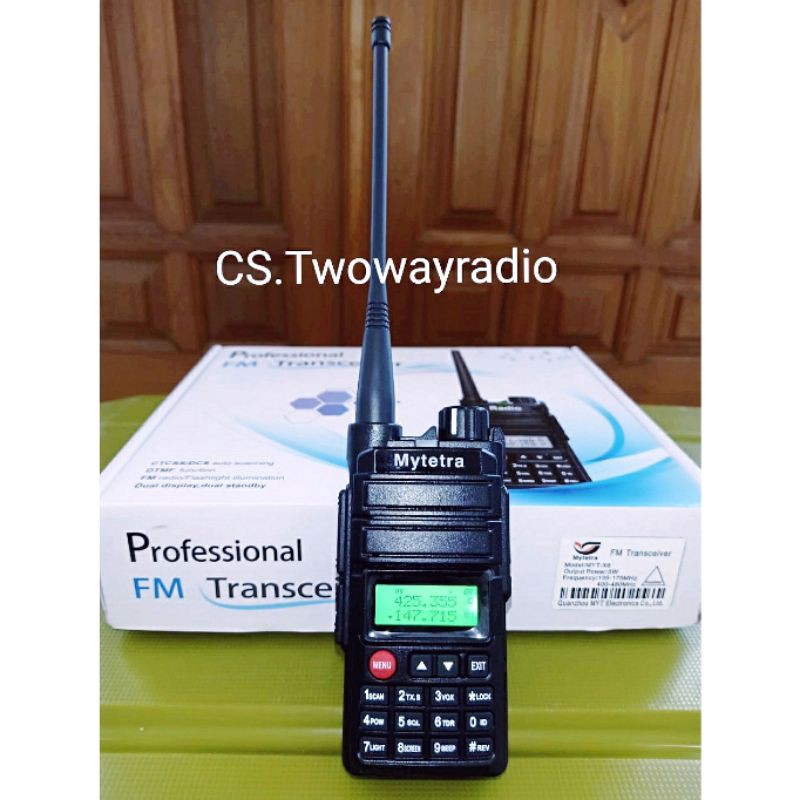

Gambar produk
