HT MOTOROLA XIR P3688 UHF -HT MOTOROLA DIGITAL XIR P3688 GARANSI RESMI

Detail HT MOTOROLA XIR P3688 UHF -HT MOTOROLA DIGITAL XIR P3688 GARANSI RESMI

Features :
- Analog / Digital
- Voice Communications
- Dual Capacity Direct Mode
- Digital Mobile Radio (DMR) Standards
- Compliant
- Narrowbanding Compliant
- IP54 Rated

Specs :
Frequency Ranges :
- UHF : 350-390 MHZ
Number of Channels : 16 channel
Typical RF Output :
- Low Power : 1W
- High Power : 4W
Power Supply : 7.5V
Dimensions :
- NiMH 1400mAH : 5.0 x 2.4 x 1.7 in (127.7 x 61.5 x 42.0 mm)
- Slim Li-Ion 1600mAH : 5.0 x 2.4 x 1.5 in (127.7 x 61.5 x 39.0 mm)
- Li-Ion 2200mAH : 5.0 x 2.4 x 1.8 in (127.7 x 61.5 x 44.0 mm)
Weight :
- NiMH 1400mAH : 14.3 oz (406 g)
- Slim Li-Ion 1600mAH : 12.1 oz (341 g)
- Li-Ion 2200mAH : 12.2 oz (346 g)

Receiver :
Channel Spacing : 12.5 kHz / 20 kHz / 25 kHz
Frequency Stability : 0.5 ppm
Analog Sensitivity : 0.3 uV / 0.22 uV (typical)
Digital Sensitivity : 0.3 uV / 0.19 uV (typical)
Intermodulation : -70 dB
Spurious Rejection : -70 dB
Rated Audio : 0.5W
Audio Distortion : 5% (3% typical)
Adjacent Channel Selectivity : 45 dB @ 12.5 kHz, 70 dB @ 20/25 kHz
Hum and Noise : -45 dB @ 12.5 kHz, -70 dB @ 20/25 kHz
Conducted Spurious Emission (TIA603D) : -57dBm

Transmitter :
RF Output :
- UHF : 350-390 MHZ
Low Power Output : 1W
High Power Output : 4W
Channel Spacing : 12.5 kHz / 20 kHz / 25 kHz
Frequency Stability : 0.5 ppm
Modulation Limiting : 2.5 kHz @ 12.5 kHz / 4.0 kHz

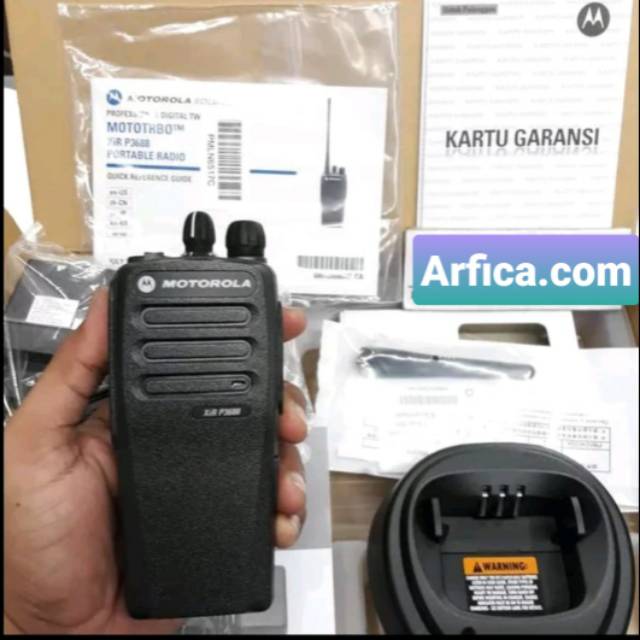

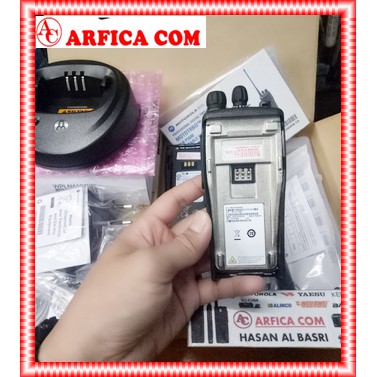

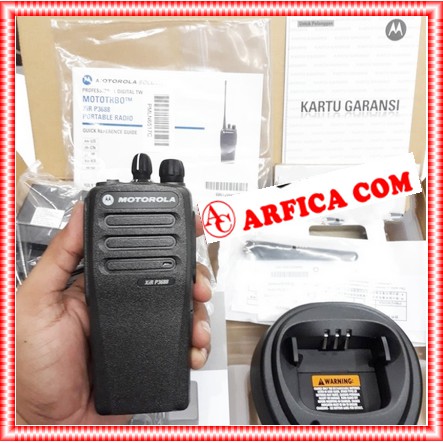

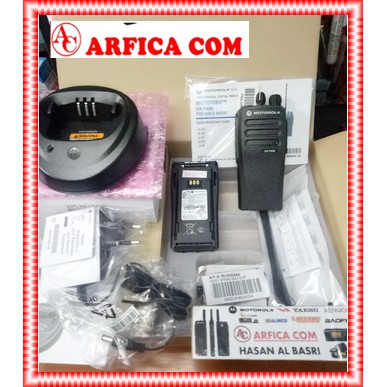

Gambar produk
