HT MERODITH UV5R Dual Band Walkie Talkie Radio Komunikasi UV 5R 5W UHF+VHF Handy Talky

Detail HT MERODITH UV5R Dual Band Walkie Talkie Radio Komunikasi UV 5R 5W UHF+VHF Handy Talky

Video perkenalan produk HT MERODITH UV5R Dual Band Walkie Talkie Radio Komunikasi UV 5R 5W UHF+VHF Handy Talky. Sumber: Shopee.

MERODITH UV5R

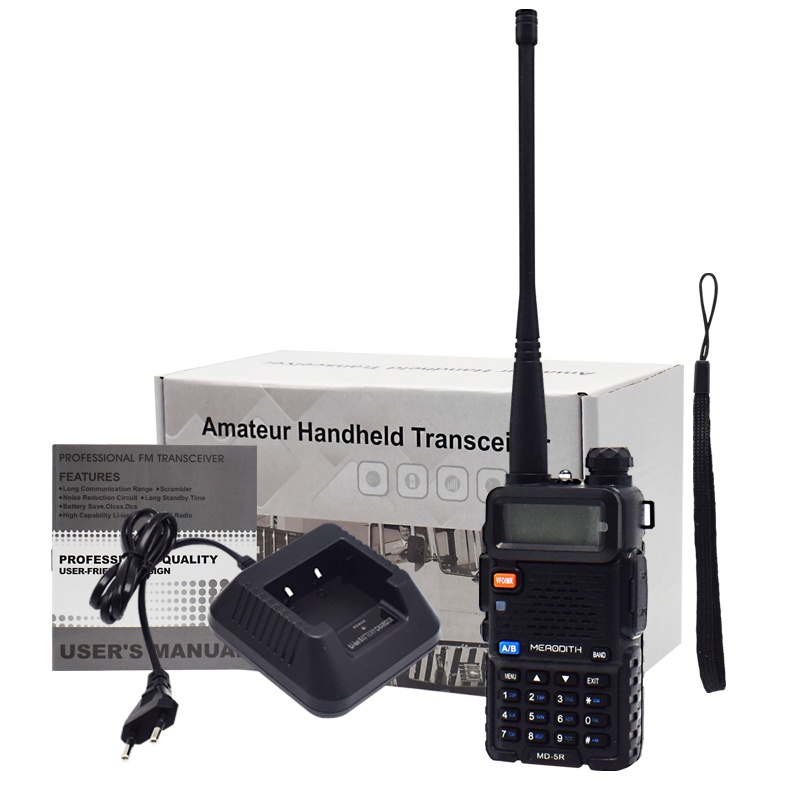

Yang ada di dalam dus :
- 1 HT
- 1 Battery 8 WATT 1800 MAH
- 1 Antena
- 1 Belt Clip
- 1 Desktop Charger
- 1 Hand Strap
- 1 Manual Book

Spesifikasi :
- 25KHz/12.5KHz Switchable
- FM Radio 65.0MHz-108.0MHz
- Large LCD Display
- LED Flashlight
- Hight /Low RF Power Switchable
- Voice companding
- 50 CTCSS/ 104DCS coder & tone searching
- Dual standby
- PC programmable
- Wide/Narrow Band(25kHz/12.5kHz)
- Transmitter time-out timer(TOT)
- High/Low TX power selectable
- Busy channel lock-out(BCLO)
- Frequency Range: 136-174MHZ and 400-520MHZ (TX/RX)
- Channel No: 128
- Frequency Stability: ±2.5ppm
- Antenna: High gain DualBand antenna
- Antenna Impedance: 50Ω
- Operating Voltage: DC 7.4V
- Mode of operation : Simple or semi-duplex
- Antenna: SMA -Female
- Earpiece / mic type: Kenwood Plug type
- Dimension(W x H x D): 132 x 60 x 35 mm (not included antenna)
- Weight: 238g(including battery, antenna)
- Power adapter: Input: AC100-240V, 50-60Hz;Output: DC10V/500mA;

Transmitter:
- Output power: 8W
- Modulation Mode: 16kΦF3E / 11kΦF3E
- Maximum deviation: 5kHz(Wide) / 2.5kHz(Narrow)
- Spurious Radiation: 7μW
- Adjacent Ch. power: ≤-65dB(Wide) / ≤-60dB(Narrow)
- Pre-emphasis characteristics: 6dB
- Current: ≤1.6A(8W)
- CTCSS/DCS deviation: 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
- Intermediation sensitivity: 8-12mv
- Intermediation distortion: ≤10%

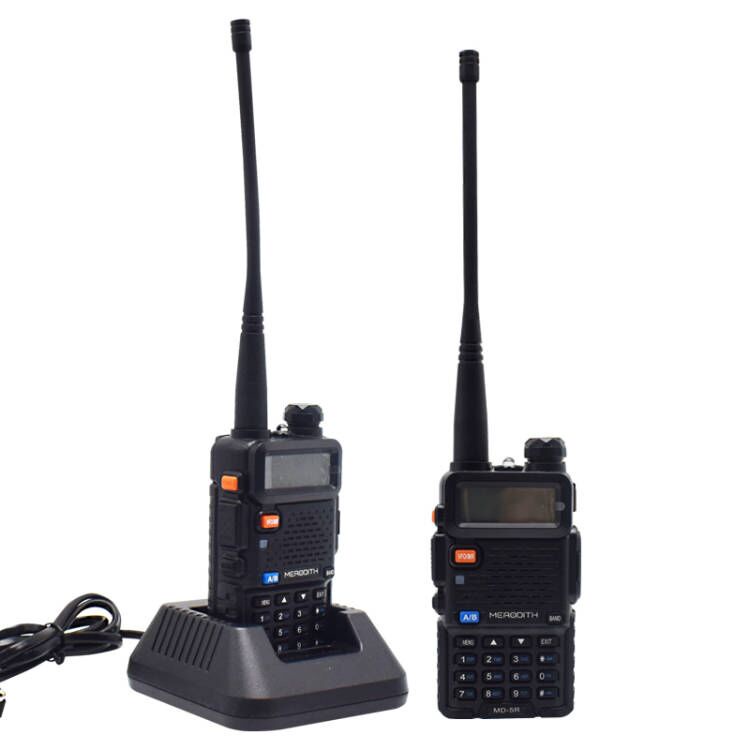

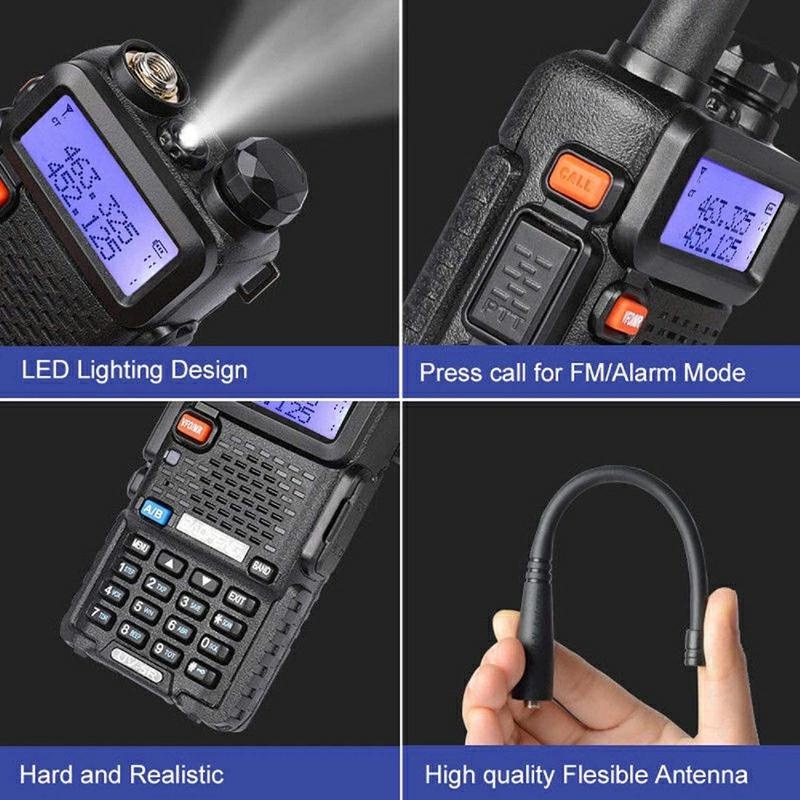

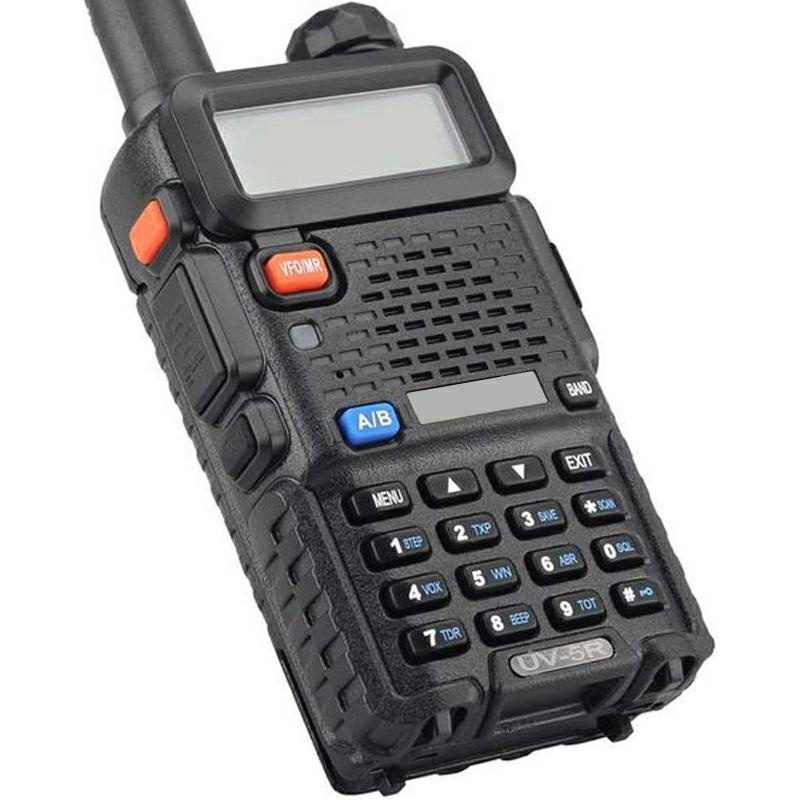

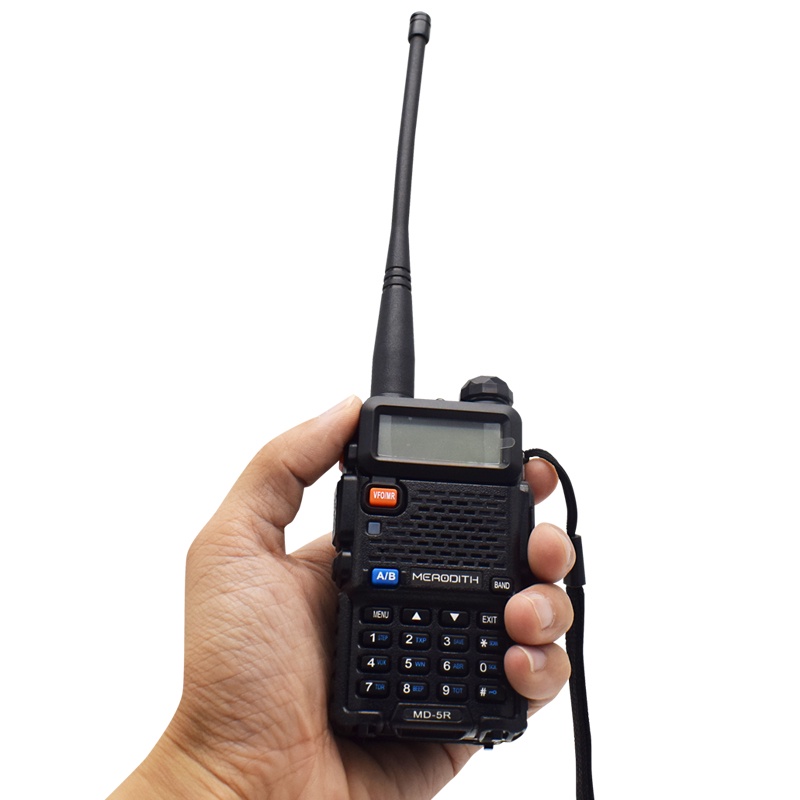

Gambar produk
