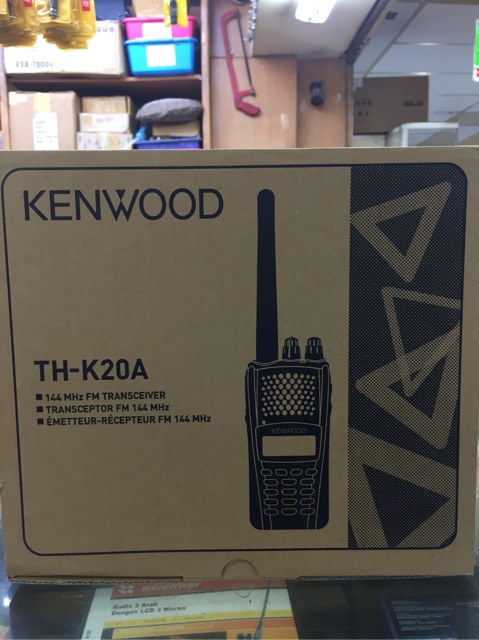

HT Kenwood THK-20A VHF

Detail HT Kenwood THK-20A VHF

#handytalkymurah RF Output Power (approx.) - Mid 2 W
RF Output Power (approx.) - Low 1 W
Frequency Range - RX - VHF MHz
Frequency Range - TX - VHF MHz (MHz transmit optional)
Antenna Impedance - 50 Ohm Yes
Audio Output Power More than 400 mW (10% distortion)
Dimensions W x H x D = 54 x 111.7 x 25.3 mm (with KNB-63L, projections not included)
Frequency Stability - TX 2.5 ppm
Microphone Impedance 2 kOhm
Modes - F2D, F3E (FM) Yes
Operating Temperature Range -20 C to +60 C with standard battery
Power Requirement (nominal) - Battery DC 6 to 9 V
Receiver Circuitry - Double Super Heterodyne Yes
Receiver Intermediate Frequency - 1st IF 38.85 MHz
Receiver Intermediate Frequency - 2nd IF 450 kHz
Receiver Selectivity (-6 dB) More than 10 kHz
Receiver Sensitivity Less than 0.16 V for 12 dB SINAD
Receiver Squelch Sensitivity Less than 0.13 V
Transmitter Maximum Frequency Deviation - FM less than 5 kHz
Transmitter Modulation Distortion Less than Hz to 3 kHz)
Transmitter Modulation Mode - Reactance Modulation Yes
Weight (with battery) 210 g with KNB-63L

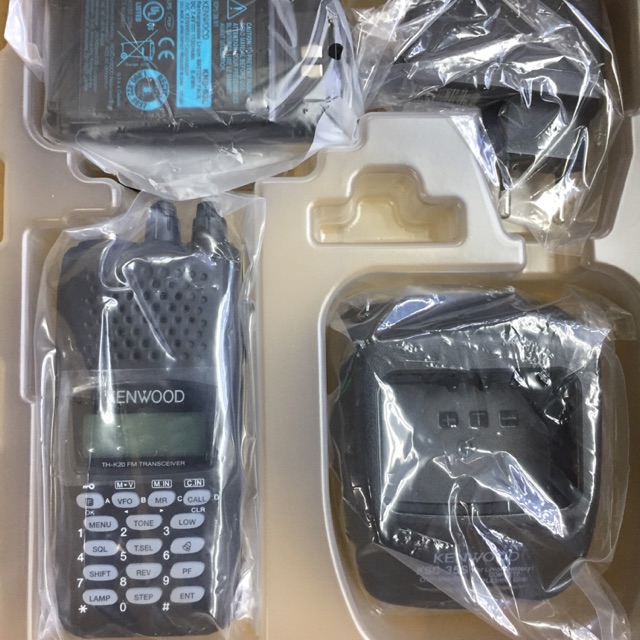

Paket Penjualan:

Includes:

Radio
Battery Pack (1130 mAh Lithium-Ion)
Charger
Belt Clip
Antenna

Gambar produk
