HT KENWOOD TH K20A

Detail HT KENWOOD TH K20A

PERHATIAN :
PEMBELI DARI LUAR JAWA TIDAK BISA MENGGUNAKAN KURIR JnT.
Karena JnT tidak mau jadi pesanan akan kami BATALKAN.

Feature
5.5/2.5/1 Watts RF Output
Backlit LCD
Weather Alert
Keypad Entry
Easy Operation
Internal VOX
200 Memories
CTCSS/DCS
Narrow Band FM Ready
SPECFICATIONS
GENERAL
Frequency Coverage : VHF TX/RX 136.000 – 173.995 Mhz
Type of emissions : F2D/F3E (FM)
No. of memory Channel : 200
Operating Temperature: -2 0OC ~ +60OC
Frequency stability : + 2.5 ppm at 25OC
Operating Voltage : DC 6.0 ~ 9.0 V ( standard 7.4 V)
Microphone Impedance : 2 KΩ
Battery : Li-Ions 1100 mA (KNB-63L)
Charger : Dekstop rapid
Dimensions (WxHxD) : 54 x 111.7 x 25.3 mm (Radio + KNB-63L)
Weight : 210 g (with KNB-63L)

TRANSMITTER
Output power (at 7.2V) : Hi:5.5/Mid:2W/Low:1W
Modulation : Reactance modulation
Max. freq. devition : +5.0Khz(wide)
Spurious emissions ; Less than -60db

RECEIVER
Intermediate freq. : 38.85 Mhz/450 Khz
Sensitivity : 0.16 µV typical (at 12db SINAND)
Squelch sensitivity : 0.13 µV typical threshold)
Selectivity : -6 dB more than 10 Khz
Audio output power : 400mW (8Ω/10% distortion)
External speaker : 3-conductor 3.5(d) mm

Garaansi servis tidak termasuk sparepart 3 bulan.
Biaya kirim pulang pergi tanggungan pembeli

Selectivity : -6 dB more than 10 Khz
Audio output power : 400mW (8Ω/10% distortion)

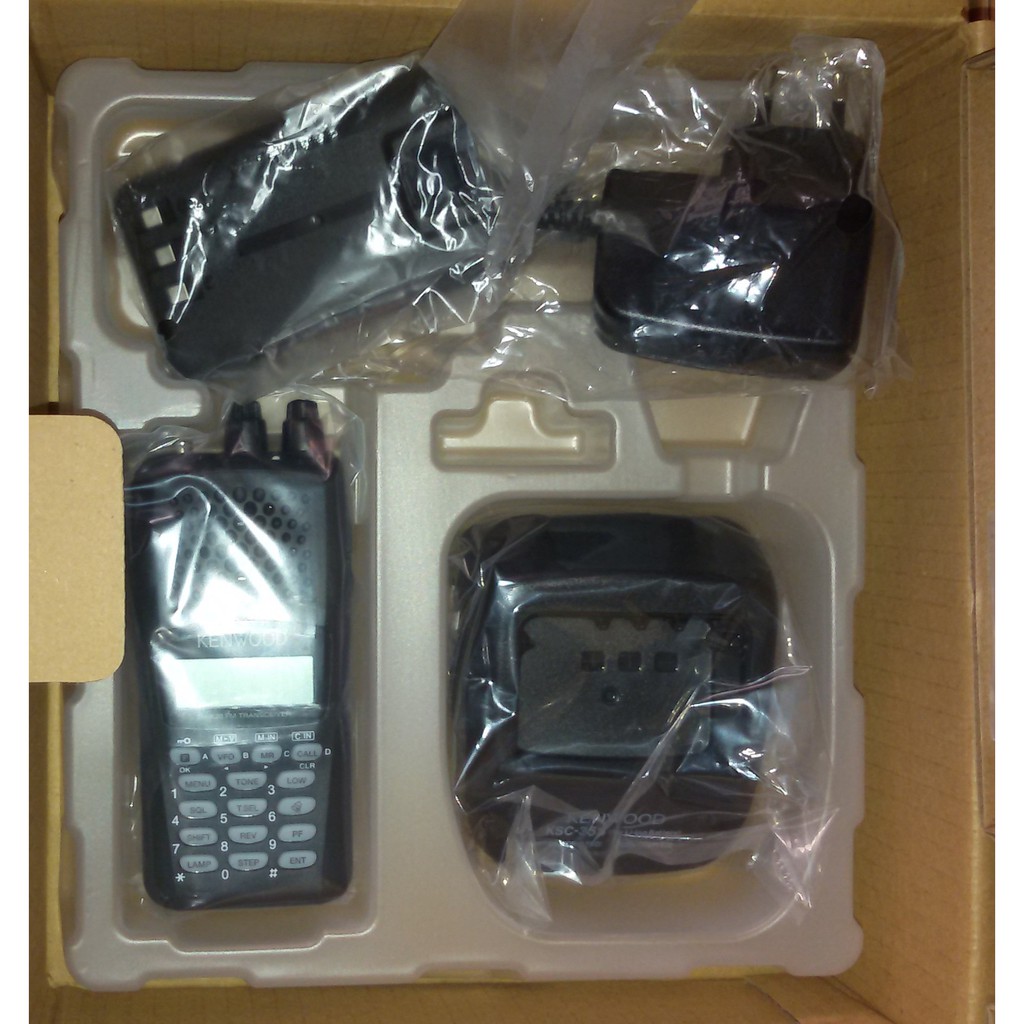

Gambar produk
