Detail HT ICOM V80 VHF SINGLE BAND
Spesifikasi Handy Talky Icom IC-V80Frequency coverage
(Differs according to version)IC-V80(U.S.A.):
Tx 144–148MHz
Rx 136–174MHz*1
IC-V80E(Europe):
Tx 144–146MHz
Rx 144–146MHz
Dimensions
(W×H×D; Proj. not included)58×112×30 mm;
2.28×4.41×1.18 inWeight
(approx.)360g; 12.7oz
with antenna and BP-265Output power
(typical values)5.5W, 2.5W, 0.5W
at 7.2V DCSensitivity
(at 12dB SINAD)0.14μV typ.Audio output power
(at 10% distortion)750mW typ. (Internal SP, 16Ω load)
450mW typ. (External SP. 8Ω load)
*1 Guaranteed range 144–148MHz.

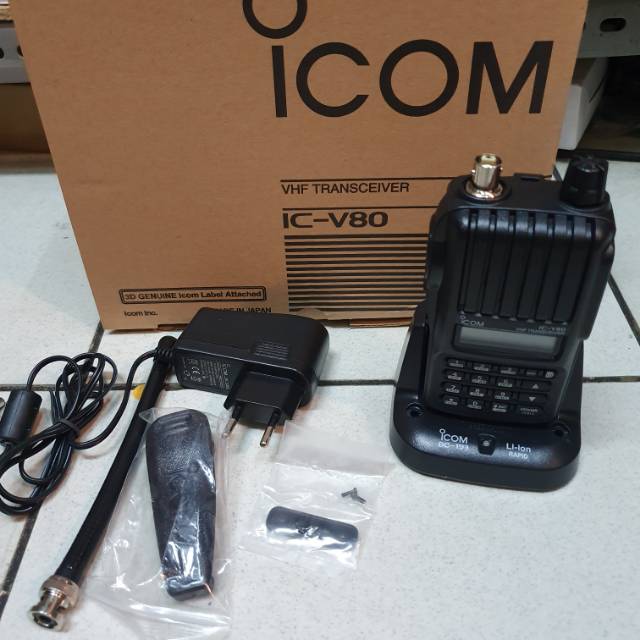

Gambar produk
