Ht ICOM V8 Baru / Handy Talky Icom V8 Single Band VHF / Radio Komunikasi Icom V8 Garansi 1 Tahun

Detail Ht ICOM V8 Baru / Handy Talky Icom V8 Single Band VHF / Radio Komunikasi Icom V8 Garansi 1 Tahun

GARANSI SERVIS HT SELAMA 1 TAHUN
+ FREE DOUBLE BOX PACKING
+ QC sebelum pengiriman

Isi Paket:
- 1 unit main HT
- 1 unit Battery
- 1 unit antena
- 1 unit docking charger
- 1 unit DC/AC charger
- 1 unit clip hanger (pegangan klip)
- 1 unit belt holder (tali pegangan)
- 1 unit user manual
- 1 box

SPESIFIKASI

General
Frequency Coverage:
Transmit: 144-148 MHz
Receive: 136-174* MHz (*144 -148 MHz guaranteed)
Mode: FM (F3E, F2D)
Number of memory channels: 107 (100 regular, 6 scan edges and 1 call)
Frequency stability: ± 10 ppm +14°F to +140°F. (-10°C to +60°C)
Operating Temperature Range: +14°F to +140°F. (-10°C to +60°C)
Power supply requirement (negative ground): 7.2 V DC
Current Drain (at 7.2 V DC):
Transmit (5.5 W): 2.0 A: Transmit (0.5 W): 0.7 A (typical)
Receive (Power save): 20 mA; (Standby): 70 mA; (Maximum audio): 250 mA (typical)
Antenna Connector: BNC (50 ohm)
Dimensions: 2.13(W) x 5.3(H) x 1.38(D) inches (54x132x35 mm)
Weight (approx, with antenna and battery): 12.3 ounces (350 g)
Transmitter
Output power (at 7.2 V DC): 5.5 watts High, 0.5 watts Low
Modulation: Variable reactance frequency modulation
Maximum frequency deviation: ±5.0 kHz
Spurious emissions: Less than -60 dB
External mic connector: 3-conductor, 2.5 (d) mm (1/10 inch), 2.2K ohms
Receiver
Receiver system: Double conversion superheterodyne
Intermediate frequencies:
1st: 21.7 MHz
2nd: 450 kHz
Sensitivity: 0.16 µV (typical for 12 db SINAD)
Squelch sensitivity: 0.10 µV (typical at threshold)
Selectivity: 65 dB typical
Spurious and image rejection: 75 dB (typical)
Audio output power (at 7.2 V DC): 300 mW (typical with an 8 ohm load)
External speaker connector: 3-conductor, 3.5 (d) mm (1/8 inch), 8 ohm
Specifications are subject to change without notice or obligation.

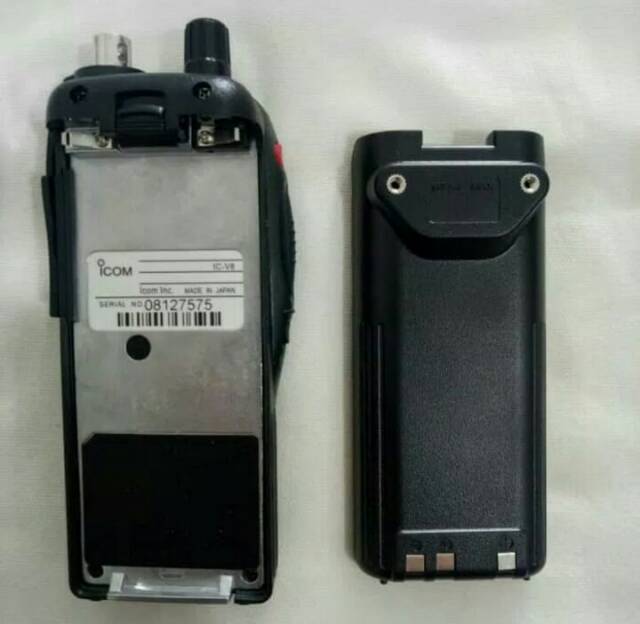

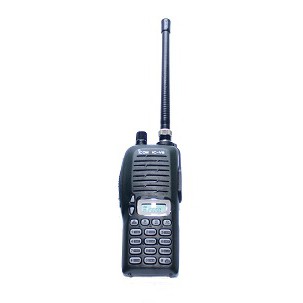

Gambar produk
