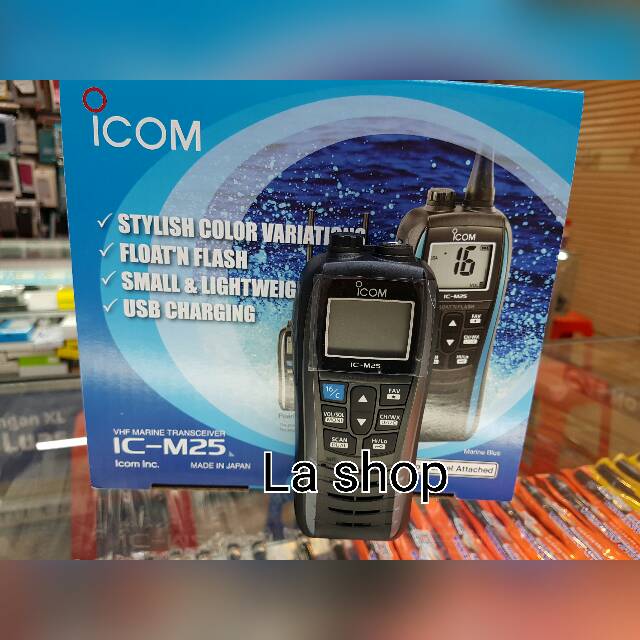

HT ICOM MARINE VHF IC M25

Detail HT ICOM MARINE VHF IC M25

Slim, Lightweight, High Performance

The IC-M25 has the slimmest (depth:30.5mm; 1.2in) and lightest (220g; 7.8oz) body as a floating marine transceiver*. It also delivers uncompromised performance that will exceed expectations.

*As of July, 2015, researched by Icom.
Large LCD, Simple User Interface

The IC-M25s LCD is 30% larger than its predecessor, the IC-M24 and shows clearly large channel number and status icons. The buttons on the front panel are well laid out and provide simple and straightforward operation.
USB Charging (Micro-B USB type)

A standard USB connector (Micro-B type) is used for charging the IC-M25. Cigarette lighter cables or mobile batteries for charging smartphones or other devices can be used with the IC-M25*.

* The IC-M25 accepts 5V/1A (Max.) input. Use of third-party products is not guaranteed.
Float'n Flash



The IC-M25 floats and lets you know where it is with the flashing red LED light and LCD/key backlight.
11 Hours of Battery Life

The built-in 1500mAh lithium-ion battery allows 11 hours (approx.) of long operation*.

* Typical operation with Tx (Hi): Rx: standby=5:5:90
Optional Speaker-Microphone, HM-213

The optional waterproof speaker-microphone, HM-213, provides commercial grade convenience while mounting the radio around the waist. The radio floats
even when the HM-213 is attached.
550mW Audio Output

The IC-M25 provides a powerful 550mW (typical) audio output and received voice can be heard loud and clear.

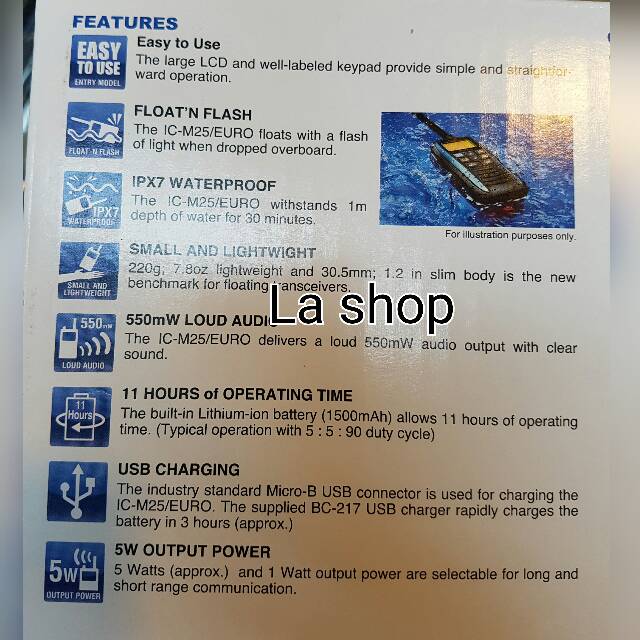

Other Features

IPX7 waterproof construction
(1m depth of water for 30 minutes)
4-step battery life indicator
Weather channel with weather alert
Dual/Tri-watch functions
Instant access to Ch 16 or programmable call channel
Favorite channel function
Monitor function opens noise squelch
Auto scan function
LCD auto backlighting
AquaQuake draining function

General

IC-M25
Frequency range Tx 156.025157.425MHz
Rx 156.050163.275MHz
Usable channel groups INT, USA, CAN, WX channels
Type of emission 16K0G3E (FM)
Power supply voltage 3.7V DC nominal
Current drain Tx 2.3A
Rx (Internal SP/External SP) 300mA/200mA (Max. audio)
Operating temperature range 20C to +60C; 4F to +140F
Antenna impedance 50
Dimensions (WHD)
(Projections not included) 56.6134.230.5mm;
2.25.31.2 in
Weight (approximately) 220g; 7.8oz
(With FA-SC59V and MB-133)

TRANSMITTER
Output power 5W (approximately)/1W
Max. frequency deviation 5.0kHz
Frequency stability 10ppm
Spurious emissions 68dBc typical
Adjacent channel power 70dB
Residual modulation 40dB
RECEIVER
Sensitivity 0.25V typical (at 12dB SINAD)
Squelch sensitivity 0.25V typical (at threshold)
Adjacent channel selectivity 70dB typical
Spurious response 70dB typical
Intermodulation 70dB typical
Audio output power
(at 10% distortion) Internal SP 550mW typical (12 load)
External SP 300mW typical (4 load)
Applicable IP Rating
Ingress Protection Standard
Water IPX7 (Waterproof protection)
