HT ICOM IC V86 7WATT NEW

Detail HT ICOM IC V86 7WATT NEW

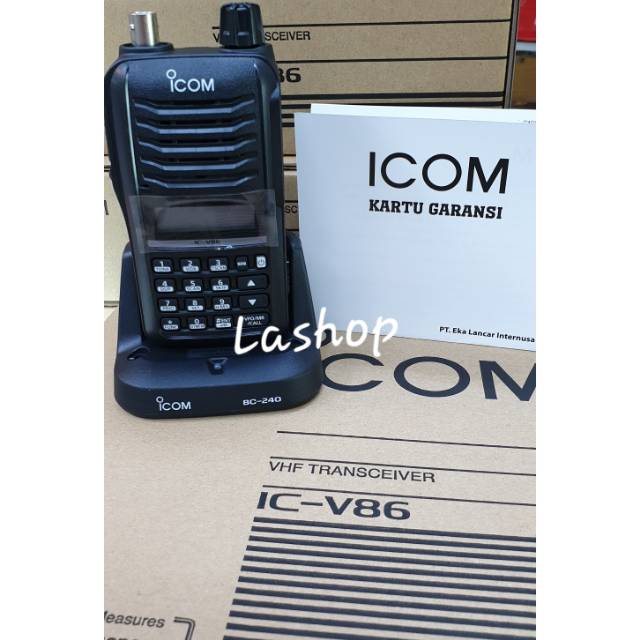

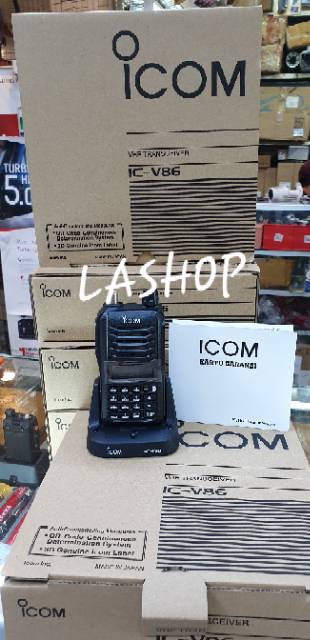

Icom IC-V86

MerkIcom
TypeIC-V86
KondisiBaru

ICOM IC-V86 generasi terbaru HT dari ICOM dengan power 7 Watt sehingga jangkauan lebih luas dari HT yang lain.

FITUR DAN SPESIFIKASIICOMIC-V86

ICOM IC-V86 suara audio lebih kuat, power RF lebih besar 7 Watt, jangkauan lebih luas, dan kapasitas baterai yang lebih besar .Dengan daya terima audio 1,5W dan desain sasis baru, IC-V86 memungkinkan pengguna untuk mendengar sinyal yang masuk di lingkungan yang keras dan -V86 memperluas jangkauan radio pengguna dengan daya output RF 7W dan paket baterai Li-Ion 2250mAh yang baru memberikan kemampuan operasional yang lebih lama.

Output daya:7,0 / 5,5 / 2,5 / 0,5 Watt
Frekuensi RX:136-174 MHz
Saluran:207 (200 biasa, 6 tepi pindai, 1 panggilan)
Peringkat tahan air:IP67 (waterproof)
GeneralFrequency coverage (Guaranteed)
TX:
RX:
144148 MHz
136174 MHzNumber of channels207 channels (200 memory channels, 1 call channel and 6 scan edges)Type of emissionsF2D, F3E (FM, FM-N)Power supply requirement7.5V DCFrequency stability2.5 ppm (20 C to +60 C, 4 F to +140 F)Current drain
TX (EX Hi/Hi/Mid/Low)
RX (Max. audio)
1.6/1.4/1.0/0.5 A typical
450 mA typ. (INT SP),
200 mA typ. (EXT SP)Antenna impedance50Operating temperature range-20C to 60C; 4F to +140FDimensions (WHD)
(Projections not included)58.6 112 30.5 mm, 2.3 4.4 1.2 in (with BP-298)Weight (Approximate)300 g, 10.6 oz (with BP-298, FA-B57V)TransmitterOutput power*7.0/5.5/2.5/0.5 W (EX Hi/Hi/Mid/Low)Max. frequency deviation 5.0kHz/2.5kHz (Wide/Narrow)Spurious emissionsLess than 60 dBExt. microphone connector3-conductor 2.5 (d) mm (110")2.2 kReceiverSensitivity124 dBm typicalSquelch sensitivity126 dBm typicalSelectivity (Wide / Narrow)75 dB typical / 70 dB typ.Intermodulation65 dB typicalExt. speaker connector3-conductor 3.5 (d) mm (18")/ 8Audio output power
Internal SP (w/8 load)
External SP (w/8 load)
1500 mW typical
550 mW typical
*7w output from 144 160 MHz. 5.5w 136 144 MHz/160 174 MHz
All stated specifications are subject to change without notice or obligation.

Applicable U.S. Military Specifications

Icom makes rugged products that meet MIL-STD requirements and strict environmentalstandards as follows.
The IC-V86 tested to and passed MIL-STD-810 C, D, E, F & G environmental tests.
StandardMIL 810GMethodProc.Low Pressure500.5I, IIHigh Temp.501.5I, IILow Temp.502.5I, IITemp. Shock503.5I-CSolar Radiation505.5IRain Blowing/Drip506.5I, IIIHumidity507.5IISalt Fog509.5Dust Blowing510.5IVibration514.6IShock516.6I, IV
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Ingress Protection StandardDust & WaterIP67 (Dust-tight and waterproof protection)

Supplied Accessories

Battery pack, BP-298

Desktop charger, BC-240

AC Adapter, BC-242

Belt clip, MB-124

Antenna
