HT ALINCO VHF MARINE DJ-MX1

Detail HT ALINCO VHF MARINE DJ-MX1

Frequency range Tx : 156.025-157.425MHz
Rx : 156.050-163.275MHz
Antenna impedance
Rated voltage
≥68dB
± 5KHz
Weight (approx.)
Dimensions (WxHxD)
Ingress protection
Operating temperature
Current Consumption
Frequency stability
Emission type
GENERAL
Spurious Emission
Frequency deviation
Modulation Type
RF Output Power
TRANSMITTER
Adjacent Channel Selectivity
Sensitivity
Intermediate Frequencies
Circuit
RECEIVER
Specifications
5 W / 1 W
0.22µV (12 dB SINAD)
1st: 21.7 MHz
2nd: 450 kHz
Double-Conversion Superheterodyne
288g with battery, antenna and clip
63mm x 138mm x 43mm approx.
－20～ +60℃
0.35A (Max audio output)
1.5A (TX / 5W) / 0.9A (TX / 1W)
(Battery life up to 8 hours with TX5 / RX5 / Stand-by 90 cycles)
±10ppm
7.2V (Battery)
50 Ω
IPX7
Variable Reactance
70 dB
Intermodulation response 68 dB
Audio Output 0.5W ( 8Ω10 %THD)

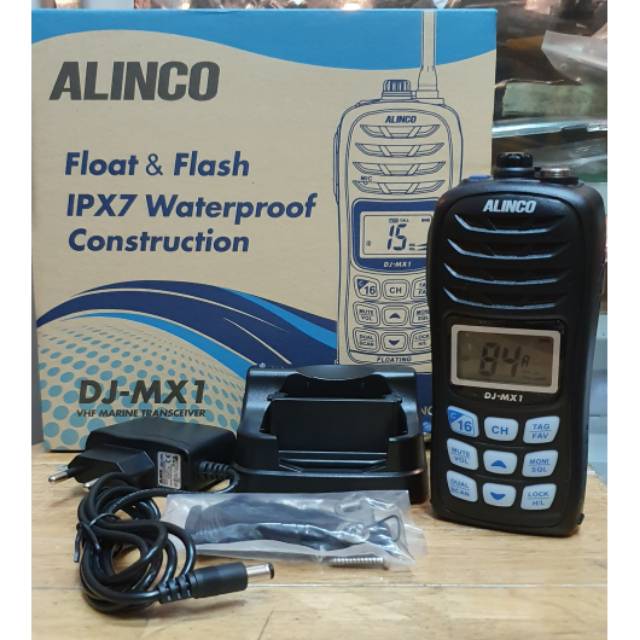

Gambar produk
