HT ALINCO DJ W10 ORIGINAL HT ALINCO SINGLEBAND VHF 136-174MHz

Detail HT ALINCO DJ W10 ORIGINAL HT ALINCO SINGLEBAND VHF 136-174MHz

SPESIFIKASI :
Alinco DJ-W10
SINGLEBAND
-Frequency : [TX/RX] 136.000 - 173.995 MHz
[RX Only] 76-108 MHz
- Mode : F3E (16K0F3E/11K0F3E / RX Only WFM)
- Progammable Channels : 128 Channels
- Frequency Stability : 2.5ppm
- Power Supply Requirement : 7.4V DC
- Dimensions : 59W x 98H x 35D mm

Transmitter :
- Output Power : Approx. 5/2/0.5W
- Modulation System : Variable Reactance FM
- Spurious Emissions : Less Than -36 dB
- Max Frequency Deviation : 5kHz / 2.5kHz

Receiver :
- receive System : Double Conversion Superheterodyne
- Inter Mediate Frequencies : 38.85MHz
- Sensitivity (12dB SINAD wide/Narrow)
- Selectivity : -6dB: -6dB: Wide12kHz / Narrow 10kHz
- Audio Output Power : 1000mW (8Ohm / Max)


GARANSI RESMI ALINCO 1 TAHUN

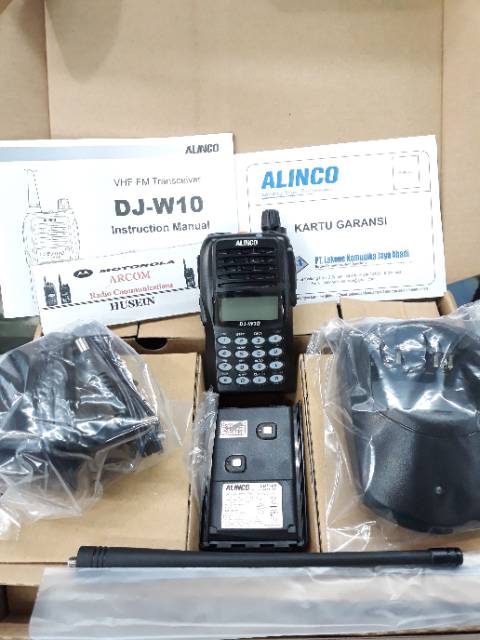

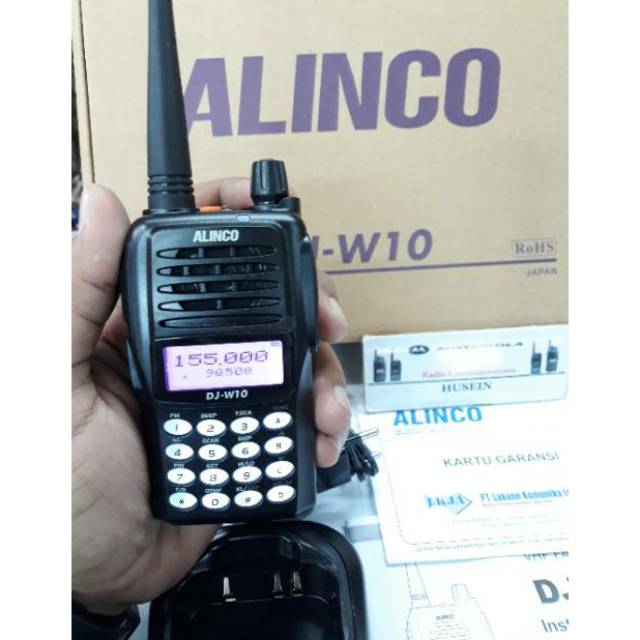

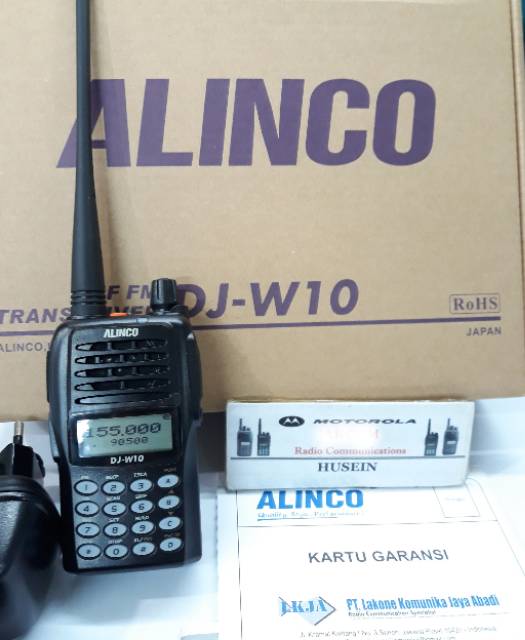

Gambar produk
