HSGQ EPON OLT 8PON 10G|FTTH EPON OLT 8 PON

Komputer & Aksesoris > Komponen Network > Komponen Network Lainnya > HSGQ EPON OLT 8PON 10G|FTTH EPON OLT 8 PON
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail HSGQ EPON OLT 8PON 10G|FTTH EPON OLT 8 PON

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

Model : HSGQ-XE08

DDR 512M
FLASH 16M
Size (L*W*H)
Product size:442mm×260mm×44mm
Package size:520mm×372mm×87mm
Weight <5kg

Uplink
QTY 8
Copper
4*10/100/1000Mauto-negotiable,RJ45
SFP 4 1G/10G SFP

PON QTY 8
PhysicalInterface
8 SFP slots
Connector Type
1000BASE-PX20+/PX20++/PX20+++
Max splitting ratio 1:64
Management Ports
CONSOLE port/NMS PORT
Power Input
AC: 100V~240V AC 47/63Hz
Support standard
IEEE 802.3ah EPON
IEEE802.3(10Base-T)
IEEE802.3u(100Base-TX)
IEEE802.3z(1000BASE-X)
IEEE802.3ab(1000Base-T)
IEEE802.1Q(VLAN)
IEEEE802.1d(STP)
IEEEE802.1W(RSTP)
IEEE802.1p(COS)
IEEE802.1x(Port Control)
IEEE802.3x(flow-control)
Each OLT interface supports at most 64 ONU;
Transmission distance of each OLT is at most 20Km
PON function
Support auto register and confirm
Blacklist and whitelist onu
DBA configure
P2P
ONU authorization
Layer 2/3 function
VLAN,QinQ,link convergency, broadcast strom control
Support at most 4094 VLAN;performance statistic
16K MAC address;mac address management
Port mirror / Static Trunk
Support RSTP
Storm control
Support IGMP Snooping/proxy
Support 512 router hosts
Support 64 router subnets
Limit quantity of maximum user at each port
Port isolation
Packe storm control
ACL access control based on data stream
QoS based on port, VID, TOS and MAC address;
Encrytion of PON port transmitting data
Support 802.1X authentication
Configuration and Management
SNMP/NMS
WebGUI management
CLI, SNMP, TELNET,cluster etc.
SSHv1/v2
Software and bootrom upgrade by TFTP and FTP
Local server syslog to record system log
Chinese/English command prompt
Ping and traceroute
Debug/Log management
User management;
Alarm management.
Lightning
Service port has lightning protection
Maintenance
Telnet remote maintenance
Temperature
-10℃~60℃
Humidity
5%~95%

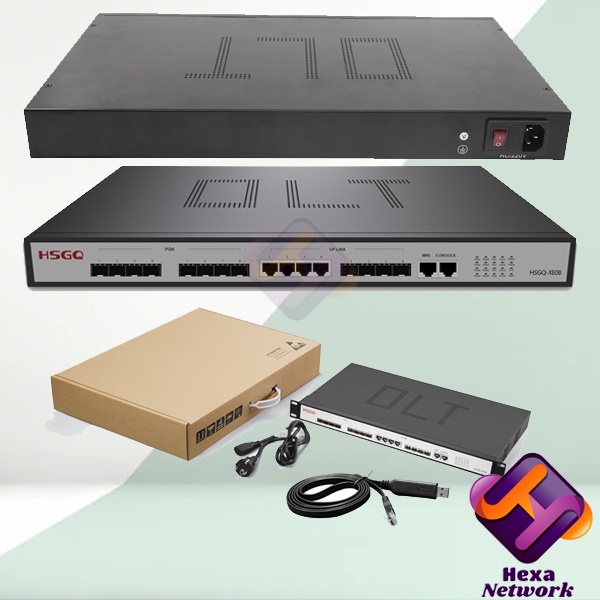

Gambar produk
